Buy Dehner Elektronik ATM 036T-A050 AC/DC bench/mains PSU 5 V DC 5.0 A 25 W Regulated

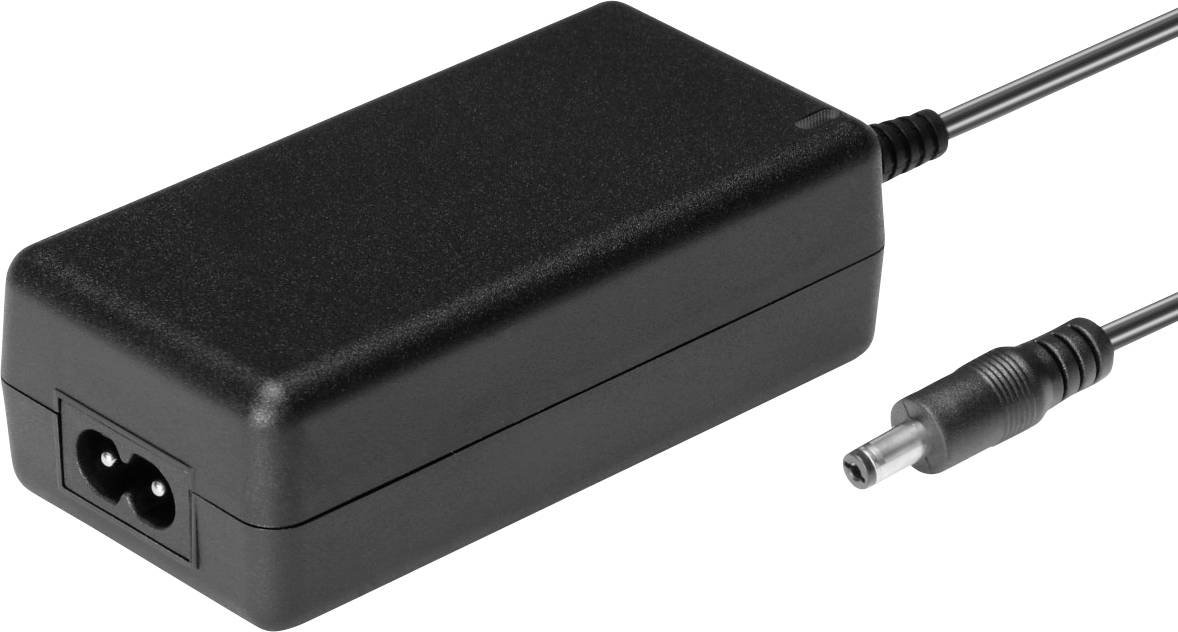

Black power supply with cable and plug, suitable for electronic devices. Shows the standard connection ports for power supply.

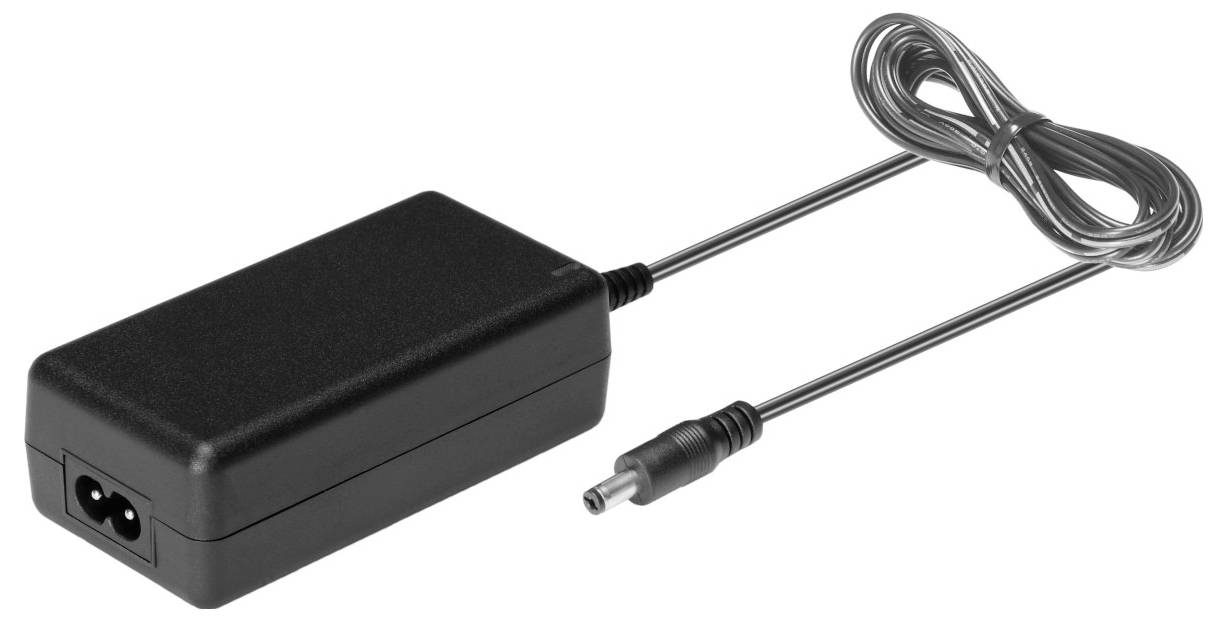

Dehner Elektronik ATM 036T-A050 AC/DC bench/mains PSU 5 V DC 5.0 A 25 W Regulated-1

1/2

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Desktop power supply medical ATM 036T-A050 Dehner Elektronik GmbH

Protection measures: 2MOPP
High efficiency – Level VI
Overvoltage protection
Overload protection
Short-circuit protection
Safety EN 60601-1 Edition 3.1
EMC:EN 60601-1-2 Edition 4.0

Technical specifications

Product type: AC/DC bench/mains PSU

Used at: Indoors
Mains socket

Max. output current: 5.0 A

Output current (max.) - rounded: 5 A

Output: 5.5/2.1 coaxial connector

Output voltage: 5 V DC

Input voltage: 110 V AC
230 V AC

No. of outputs: 1 x

Output current (high): 5 A

EuP Status: Step 2

Weight: 170 g

: 25 W

PSU features: Regulated

Type: Switched PSU

Width: 50 mm

Height: 33 mm

Length: 100 mm

Type: ATM 036T-A050

Variants(All information is without VAT, plus shipping costs)

Input voltage

Output

No. of outputs

Used at

Output current (max.) - rounded

Product type

Output voltage

Dehner Elektronik ATM 036T-A050 AC/DC bench/mains PSU 5 V DC 5.0 A 25 W Regulated

Item no:3350548

This article

110 V AC230 V AC

5.5/2.1 coaxial connector

1 x

IndoorsMains socket

5 A

AC/DC bench/mains PSU

5 V DC

Dehner Elektronik 26498 Bench PSU (fixed voltage) 12 V DC 5000 mA 65 W

Item no:1196262

90 V AC264 V AC

5.5/2.1 coaxial connector

5 A

Bench PSU (fixed voltage)

12 V DC

Dehner Elektronik ATM 065T-P120 Bench PSU (fixed voltage) 12 V DC 5000 mA 65 W

Item no:1196264

90 V AC264 V AC

5.5/2.1 coaxial connector

1 x

5 A

Bench PSU (fixed voltage)

12 V DC

Dehner Elektronik ATM 160-P120 Bench PSU (fixed voltage) 12 V DC 12500 mA 160 W

Item no:1196271

90 V AC264 V AC

Mini DIN plug (4-pin)

12.5 A

Bench PSU (fixed voltage)

12 V DC

Dehner Elektronik ATM 090T-A120 Adapter 12 V DC 7 A 90 W Regulated

Item no:1762781

110 V AC230 V AC

5.5/2.1 coaxial connector

1 x

Indoors

7 A

Adapter

12 V DC

Dehner Elektronik ATM 090T-A190 Adapter 19 V DC 4.7 A 90 W Regulated

Item no:1762782

110 V AC230 V AC

5.5/2.1 coaxial connector

1 x

Indoors

4.7 A

Adapter

19 V DC

Dehner Elektronik ATM 090T-A240 Adapter 24 V DC 3.75 A 90 W Regulated

Item no:1762783

110 V AC230 V AC

5.5/2.1 coaxial connector

1 x

Indoors

3.75 A

Adapter

24 V DC

Dehner Elektronik 28207 Bench PSU (fixed voltage) 12 V DC 10 A 120 W Regulated

Item no:1900659

100 V AC

Mini DIN plug (4-pin)

1 x

Indoors

10 A

Bench PSU (fixed voltage)

12 V DC

Dehner Elektronik ATM 036T-P240 Bench PSU (fixed voltage) 24 V DC 1.5 A Regulated

Item no:1923279

110 V AC240 V AC

5.5/2.1 coaxial connector

1 x

IndoorsMains socket

1.5 A

Bench PSU (fixed voltage)

24 V DC

Dehner Elektronik ATM 036T-A120 Bench PSU (fixed voltage) 12 V DC 3.0 A 36 W Regulated

Item no:1923280

110 V AC240 V AC

5.5/2.1 coaxial connector

1 x

IndoorsMains socket

3 A

Bench PSU (fixed voltage)

12 V DC

Documents & Downloads

Datasheet

Datasheet 3350548 Dehner Elektronik ATM 036T-A050 AC/DC bench/mains PSU 5 V DC 5.0 A 25 W Regulated

User & Safety Instructions

User & Safety Instructions 3350548 Dehner Elektronik ATM 036T-A050 AC/DC bench/mains PSU 5 V DC 5.0 A 25 W Regulated

Warranty Terms

Warranty Terms 3350548 Dehner Elektronik ATM 036T-A050 AC/DC bench/mains PSU 5 V DC 5.0 A 25 W Regulated

Description

The ATM series power supply from Adapter Tech is intended for use in medical applications.

The mains adapter corresponds to the valid standards for medical technology (EN 60601-1). It has two protective measures to protect patients against electric shock (2MOPP). The power supply is suitable for operating a large number of devices in the diagnostic and therapeutic environment.

Wide-range input from 100V/AC to 240V/AC. The output voltage is stabilised. The switched-mode power supply has a high degree of efficiency and therefore low heat generation.

Number of output voltages 1 – single
Can be used in region: Europe, USA / Canada, Japan
Protection class I
Application: Medicine
Output connection: Hollow plug
Design: Desktop power supply
Input connection: C7-socket

This text is machine translated.

Features

Short circuit and over load protection with automatic restart
DC-DC Plug 5.5 mm x 2.1 mm, polarity + inside
Safety tested according to EN standard, CB, UL
Type: synchronised.

Scope of delivery

Connection cable
