Dehner Elektronik ATP 060PD-W200E USB charger 5 V DC, 9 V DC, 12 V DC, 15 V DC, 20 V DC 3 A 60 W USB Power Delivery (USB
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

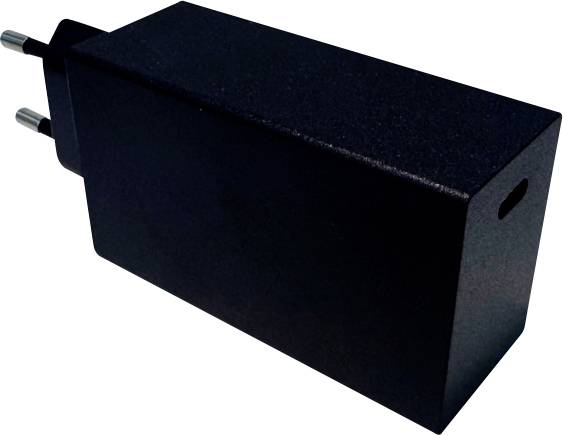

Plug power supply ATP 060PD-W200 Power Delivery 3.0 USB-C Dehner Elektronik GmbH
- PD - Power Delivery 3.0
- 5V 3A / 9V 3A / 12V 3A / 15V 3A / 20V 3A (output voltage is controlled via CC1)
- DoE 2016 (Level VI), ERP Level 2 (Lot 7)
- IEC/EN/UL 62368-1 & 60950-1
- Power consumption without load less than 0.1 W.
- Regulated output with low ripple
Technical specifications
- Product type
USB charger
- Used at
Mains socket
Indoors
- Max. output current
3 A
- Output voltage
5 V DC
9 V DC
12 V DC
15 V DC
20 V DC
- Output current (max.) - rounded
3 A
- Output
USB-C® plug
USB
- PSU features
USB Power Delivery (USB-PD)
w/o cable
- Input voltage
240 V AC
60 W
- Dim
(L x W x H) 101 x 29 x 41.7 mm
- Connection
USB
- No. of outputs
1 x
- No. of inputs
1 x
- Input voltage (max.)
264 V AC
- Min. input voltage
100 V AC
- EuP Status
Step 2
- Weight
130 g
- Width
29 mm
- Height
41.7 mm
- Length
101 mm
- Type
ATP 060PD-W200E
Documents & Downloads
Datasheet
Datasheet 3350550 Dehner Elektronik ATP 060PD-W200E USB charger 5 V DC, 9 V DC, 12 V DC, 15 V DC, 20 V DC 3 A 60 W USB Power Delivery (USB
User & Safety Instructions
User & Safety Instructions 3350550 Dehner Elektronik ATP 060PD-W200E USB charger 5 V DC, 9 V DC, 12 V DC, 15 V DC, 20 V DC 3 A 60 W USB Power Delivery (USB
Warranty Terms
Warranty Terms 3350550 Dehner Elektronik ATP 060PD-W200E USB charger 5 V DC, 9 V DC, 12 V DC, 15 V DC, 20 V DC 3 A 60 W USB Power Delivery (USB
Description
This power supply with Power delivery (PD) is a charger that supports the USB Power delivery standard. This standard allows the charging of devices such as smartphones, tablets, laptops and other USB-C compatible devices quickly and flexibly.
The most important features are:
High performance
This power supply unit with PD can deliver a power up to 60 W (with USB-C 3.0), depending on the device and cable. Ideal for devices with Hohem power requirements such as laptops.
Flexible charging:
Power delivery automatically adjusts the voltage and current to the requirements of the connected device (e.g. 5V, 9V, 12V, 15V, 20V). Supports a variety of devices with different power requirements.
Rapid charging:
Smartphones and tablets that support the PD standard can be charged in a short time (e.g. 50% in 30 minutes on some models).
USB-C compatibility:
PD power supplies usually use USB-C connections that are universal and future-ready.
Safety:
Intelligent charging protocols protect against overloading, overheating and short-circuits.
What should you pay attention to when buying?
Power (Watt):
Make sure that the maximum wattage of the power supply matches your device.
Supported devices:
Check that your device supports the Power delivery standard.
Cable quality:
Use a high quality USB-C cable designed for the desired performance
This text is machine translated.
