Dehner Elektronik ATS 036T-A050 Bench PSU (fixed voltage) 5 V DC 5 A 25 W
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 21.84
3
4% = € 0.95
€ 20.89
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 21.84 / piece)
€ 21.84
plus VAT.
Only 6 Piece(s) available
Highlights & Details

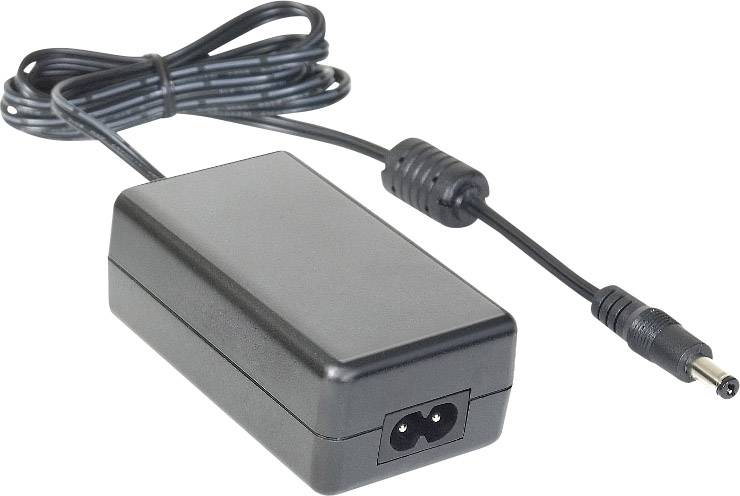

Dehner Elektronik ATS 036T-A050 Bench PSU (fixed voltage) 5 V DC 5 A 25 W
- Protection class 2
- ErP-compliant LEVEL VI
- High degree of efficiency
- 5 V DC
- 5 A
- 25 W power output
- DC-hollow plug 5.5 x 2.1 mm
- This text is machine translated.
Technical specifications
- Product type
Bench PSU (fixed voltage)
- Used at
Mains socket
- Max. output current
5 A
- Output current (max.) - rounded
5 A
- Output
5.5/2.1 coaxial connector
- Output voltage
5 V DC
- Input voltage
110 V AC
230 V AC
- No. of outputs
1 x
- EuP Status
Step 2
- Weight
160 g
25 W
- Width
51 mm
- Height
34 mm
- Length
101 mm
- Type
ATS 036T-A050
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1575643 Dehner Elektronik ATS 036T-A050 Bench PSU (fixed voltage) 5 V DC 5 A 25 W
Warranty Terms
Warranty Terms 1575643 Dehner Elektronik ATS 036T-A050 Bench PSU (fixed voltage) 5 V DC 5 A 25 W
Description
Features
- Short circuit and over load protection with automatic restart
- Output port: small unit port 2.1 x 5.5 mm, polarity + inside
- Safety as per c-UL, TUV, CB, PSE
- Input: IEC 60320-C8
- Protection class: 2
Scope of delivery
- Power supply cable, IEC 60320 C7
