1/2

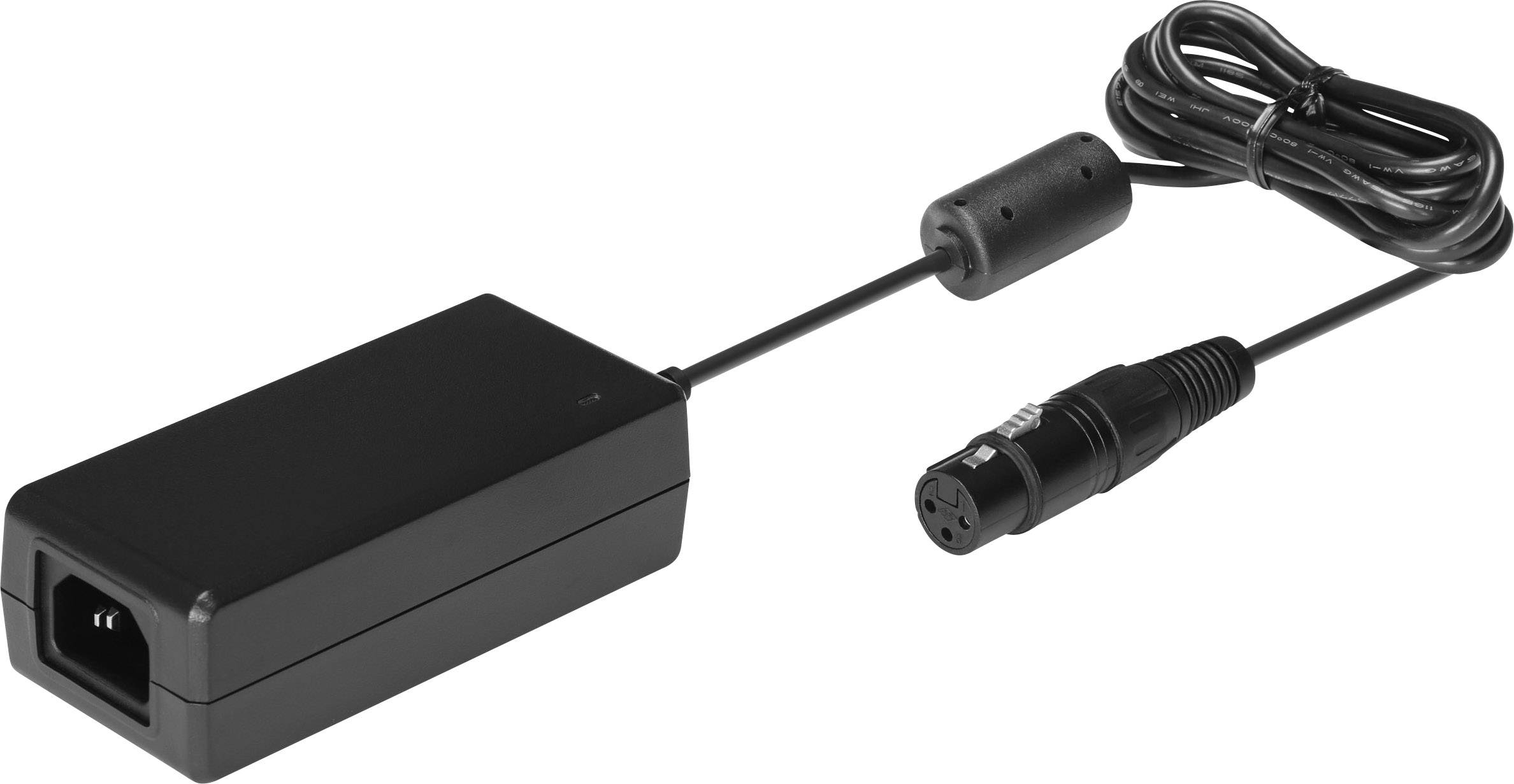

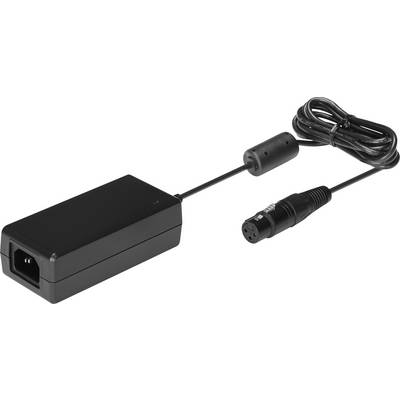

Dehner Elektronik ATS 065T-P241 Bench PSU (fixed voltage) 24 V DC 11 A 65 W, 264 W Regulated
EAN:
Part number:
Item no:
Highlights & Details
Dehner Elektronik ATS 065T-P241 Bench PSU (fixed voltage) 24 V DC 11 A 65 W, 264 W Regulated
- Protection class 2
- ErP Stage 2, NRCan & GEMS Level VI
- High degree of efficiency 24 V/DC
- 3 A (short-term 11 A possible)
- 72 W power (short 264 W)
- Short circuit and over load protection with automatic restart
Technical specifications
- Product type
Bench PSU (fixed voltage)
- Used at
Indoors
- Max. output current
11 A
- Output current (max.) - rounded
11 A
- Output
3-pin
- Output voltage
24 V DC
- Input voltage
100 V AC
240 V AC
- No. of outputs
1 x
- Output current (high)
11 A
- Output current (low)
2,71 A
- EuP Status
Step 2
- Weight
310 g
65 W
264 W
- PSU features
Regulated
- Width
53 mm
- Height
38 mm
- Length
115 mm
- Type
ATS 065T-P241
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1783537 Dehner Elektronik ATS 065T-P241 Bench PSU (fixed voltage) 24 V DC 11 A 65 W, 264 W Regulated
Warranty Terms
Warranty Terms 1783537 Dehner Elektronik ATS 065T-P241 Bench PSU (fixed voltage) 24 V DC 11 A 65 W, 264 W Regulated
Description
Short-term up to 11A load (264 Watt)
Ideal for applications that require high inrush current
Short circuit and over load protection with automatic restart
This text is machine translated.
Ideal for applications that require high inrush current
Short circuit and over load protection with automatic restart
This text is machine translated.
Features
- Short circuit and over load protection with automatic restart
- DC-XLR plug.
Scope of delivery

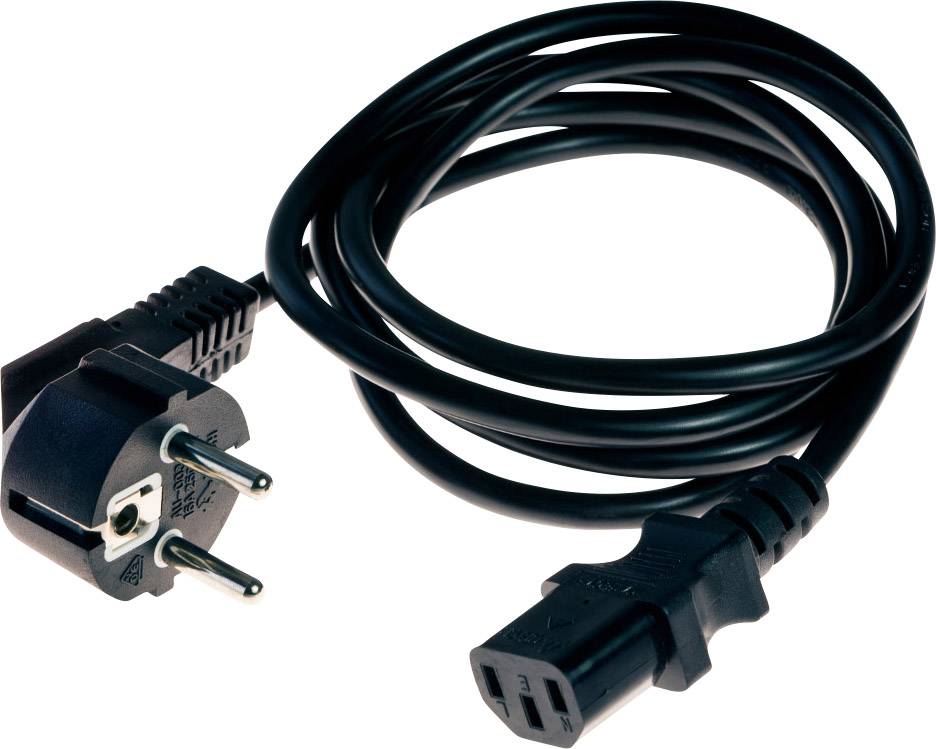

- Power cord
- User manual.
Hints
Safety tested according to EN standard, CB, UL
Safety according to IEC/EN/UL 62368-1, IEC/EN/UL 60950-1, RCM, PSE, BSMI
