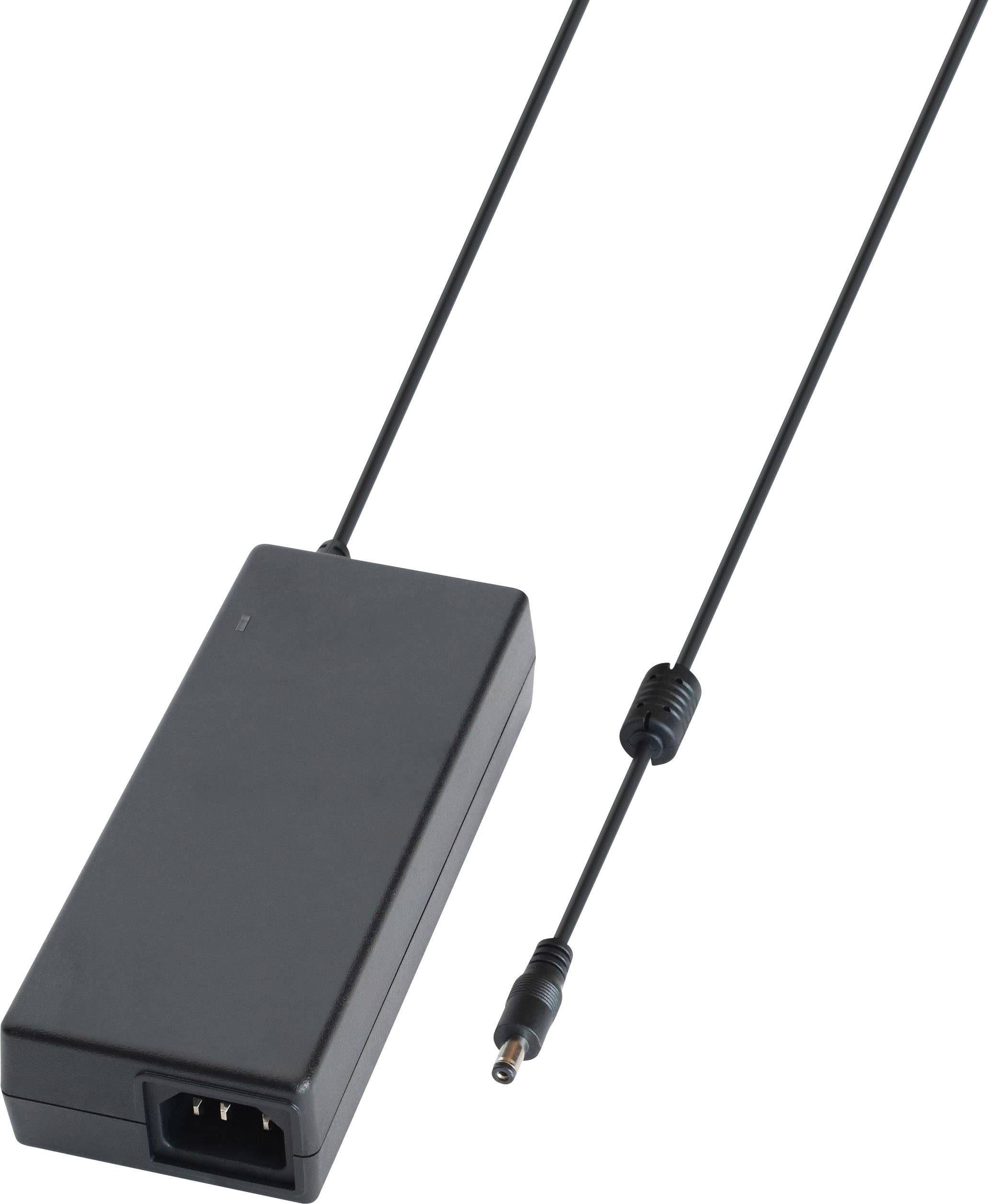

Dehner Elektronik ATS 090-P240 IEC 60320 C13 Bench PSU (fixed voltage) 24 V DC 3.75 A 90 W
EAN:
Part number:
Item no:
6 Piece(s)
Sales and shipping:
Number
Total (€ 65.54 / piece)
€
Only 6 Piece(s) available
Highlights & Details
Dehner Elektronik ATS 090-P240 IEC 60320 C13 Bench PSU (fixed voltage) 24 V DC 3.75 A 90 W
- Protection class 1
- ErP-compliant
- High degree of efficiency
- 24 VDC
- 3.75 A
- 90 W power
- Short circuit and over load protection with automatic restart
- Safety as per c-UL, TUV, CB, PSE
Technical specifications
- Temperature range: 0°C to +40 °C
- Product type
Bench PSU (fixed voltage)
- Used at
Mains socket
Indoors
- Max. output current
3.75 A
- Output current (max.) - rounded
3.75 A
- Output
5.5/2.1 coaxial connector
- Output voltage
24 V DC
- Input voltage
115 V AC
230 V AC
- No. of outputs
1 x
- Connections
Input IEC 60320 C14
- Output current (high)
3,75 A
- EuP Status
Step 2
- Weight
423 g
90 W
- Width
59 mm
- Height
35 mm
- Length
137 mm
- Type
ATS 090-P240 IEC 60320 C13
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1656196 Dehner Elektronik ATS 090-P240 IEC 60320 C13 Bench PSU (fixed voltage) 24 V DC 3.75 A 90 W
Warranty Terms
Warranty Terms 1656196 Dehner Elektronik ATS 090-P240 IEC 60320 C13 Bench PSU (fixed voltage) 24 V DC 3.75 A 90 W
Description
Robust and reliable Desktop adapter switching power supply technology in a compact design. Corresponds to the latest environmental requirements. Is suitable for international use.
This text is machine translated.
This text is machine translated.
Features
- Short circuit and over load protection with automatic restart
- DC-DC Plug 5.5 x 2.1 mm, polarity + inside
- Safety as per c-UL, TUV, CB, PSE.
Scope of delivery
- Power Cord IEC 60320 C13
- User manual
