Dehner Elektronik LED transformer, LED driver Constant voltage 30 W 2.50 A 12 V DC Surge protection, Overvoltage, not di
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 11.76
3
6% = € 0.65
€ 11.11
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 11.76 / piece)
€ 11.76
plus VAT.
14-day return policy included
Highlights & Details

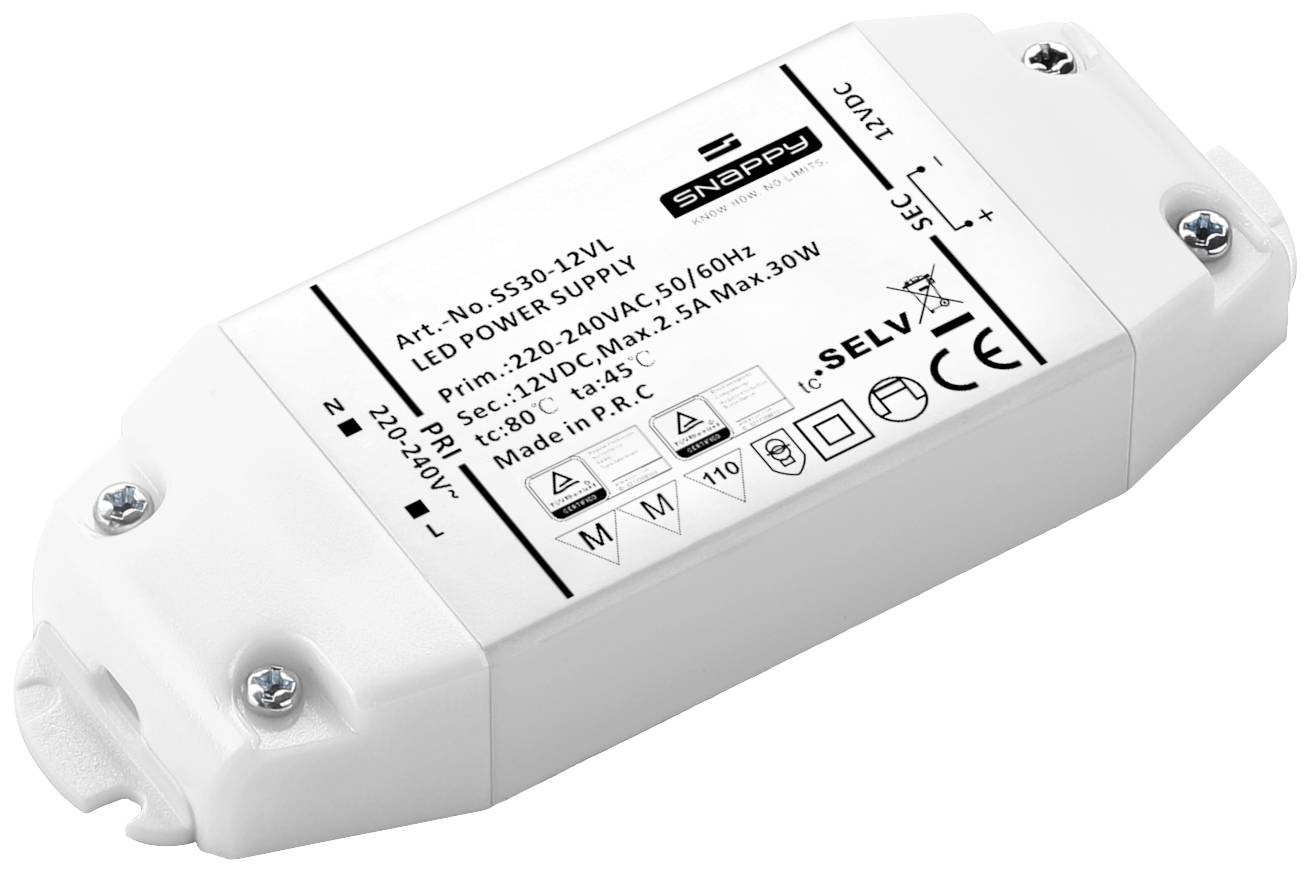

LED power supply/driver SS 30-12VL regular size - Dehner Elektronik GmbH
- Constant voltage
- 12 V DC
- 2.50 A
Technical specifications
- Product type
LED transformer
- Type
Constant voltage
- Dim
(L x W x H) 123 x 44.6 x 19.2 mm
- Factory colour
White
- Output voltage (max.)
12 V DC
- Output voltage (min.)
12 V DC
- Test mark
MM;SELV; TÜV; UKCA;
- Max. output current
2.50 A
- Output current (max.) - rounded
2.5 A
- Operating voltage
240 V AC
- Protection class
IP20
- LED driver features
Surge protection
Overvoltage
not dimmable
IP20
- Connection
Screw terminal
- Max. power
30 W
- No. of outputs
1 x
- No. of inputs
1 x
- Output current (min.)
2.50 A
- Input voltage (max.)
264 V AC
- Min. input voltage
180 V AC
- Power range
30 W (max)
- Type
Switched PSU
- Width
44.6 mm
- Height
19.2 mm
- Length
123 mm
- Max. temperature
45 °C
- Min. temperature
-20 °C
Documents & Downloads
Datasheet
Datasheet 2890338 Dehner Elektronik LED transformer, LED driver Constant voltage 30 W 2.50 A 12 V DC Surge protection, Overvoltage, not di
User & Safety Instructions
User & Safety Instructions 2890338 Dehner Elektronik LED transformer, LED driver Constant voltage 30 W 2.50 A 12 V DC Surge protection, Overvoltage, not di
Conformity certificate
Conformity certificate 2890338 Dehner Elektronik LED transformer, LED driver Constant voltage 30 W 2.50 A 12 V DC Surge protection, Overvoltage, not di
Description
Power supply specially designed for LED lighting, especially compact and flat design. Suitable for various LED-applications in the inner area (e.g. Decoration, furniture installation, suspended ceilings)
This text is machine translated.
This text is machine translated.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
