Buy Dehner Elektronik DRP045D-48FTN Rail mounted PSU (DIN) 48 V DC 1 A 45 W No. of outputs:1 x Content 1 pc(s)

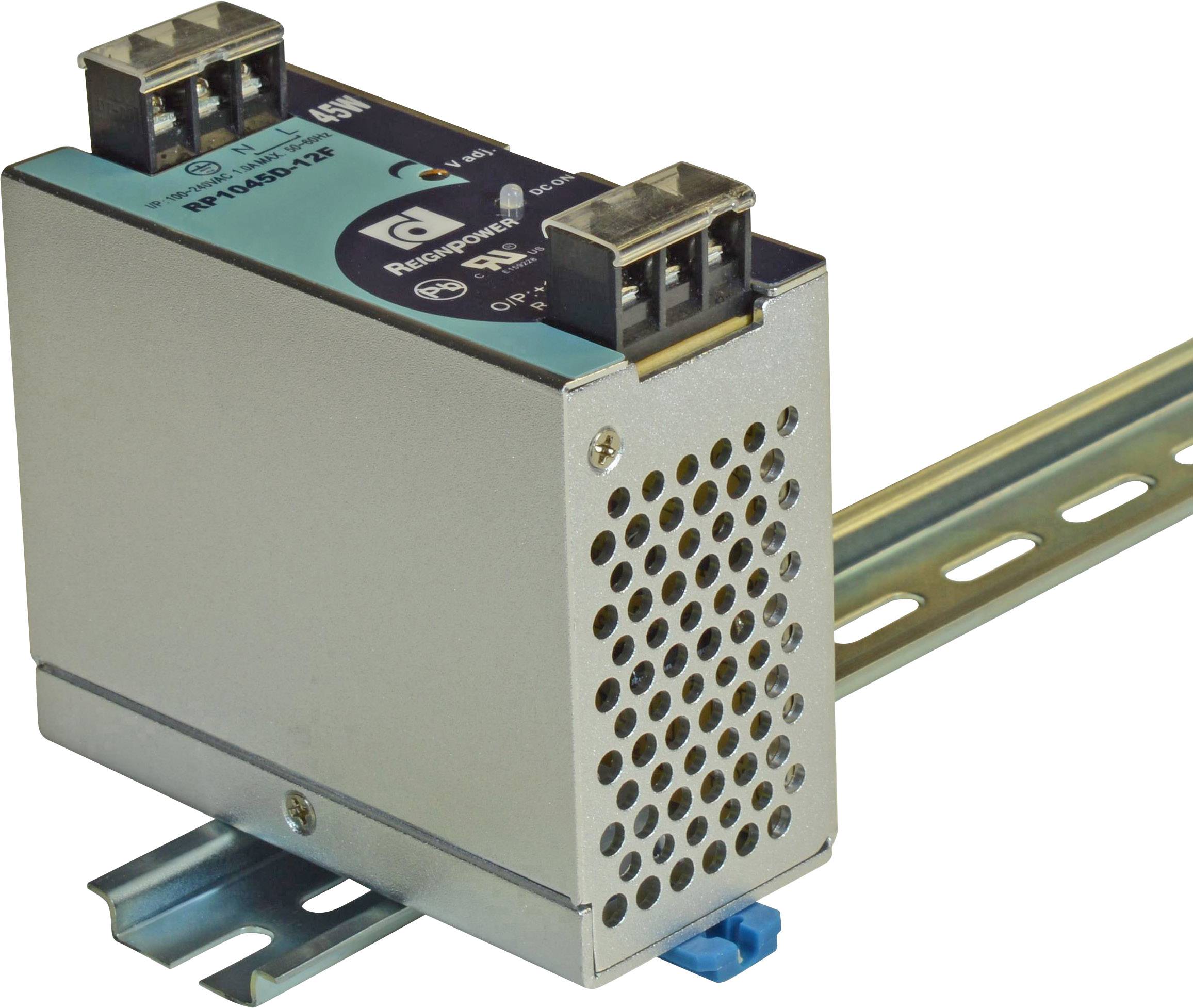

'Compact switched-mode power supply mounted on DIN rail, with metal enclosure and ventilation slots, designed for stable power supply.'

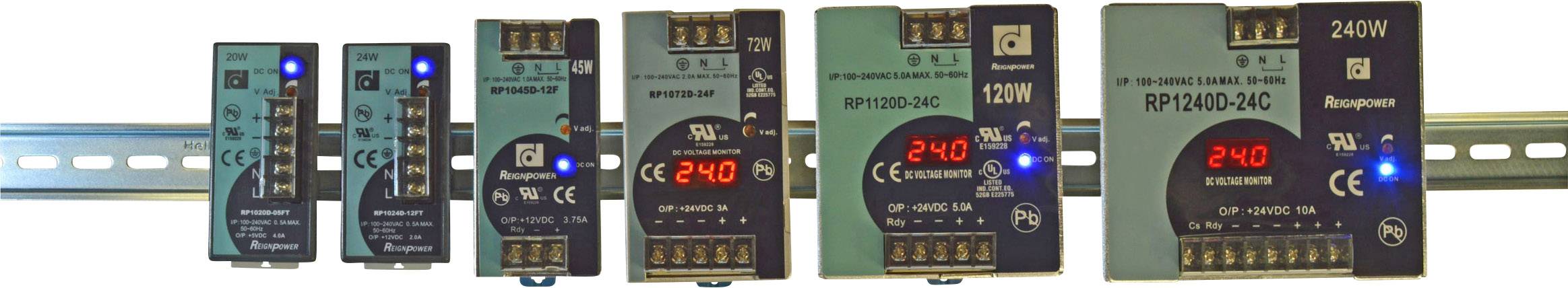

A row of red digital voltmeters, mounted on a metal rail, displaying voltage readings of 240 V.

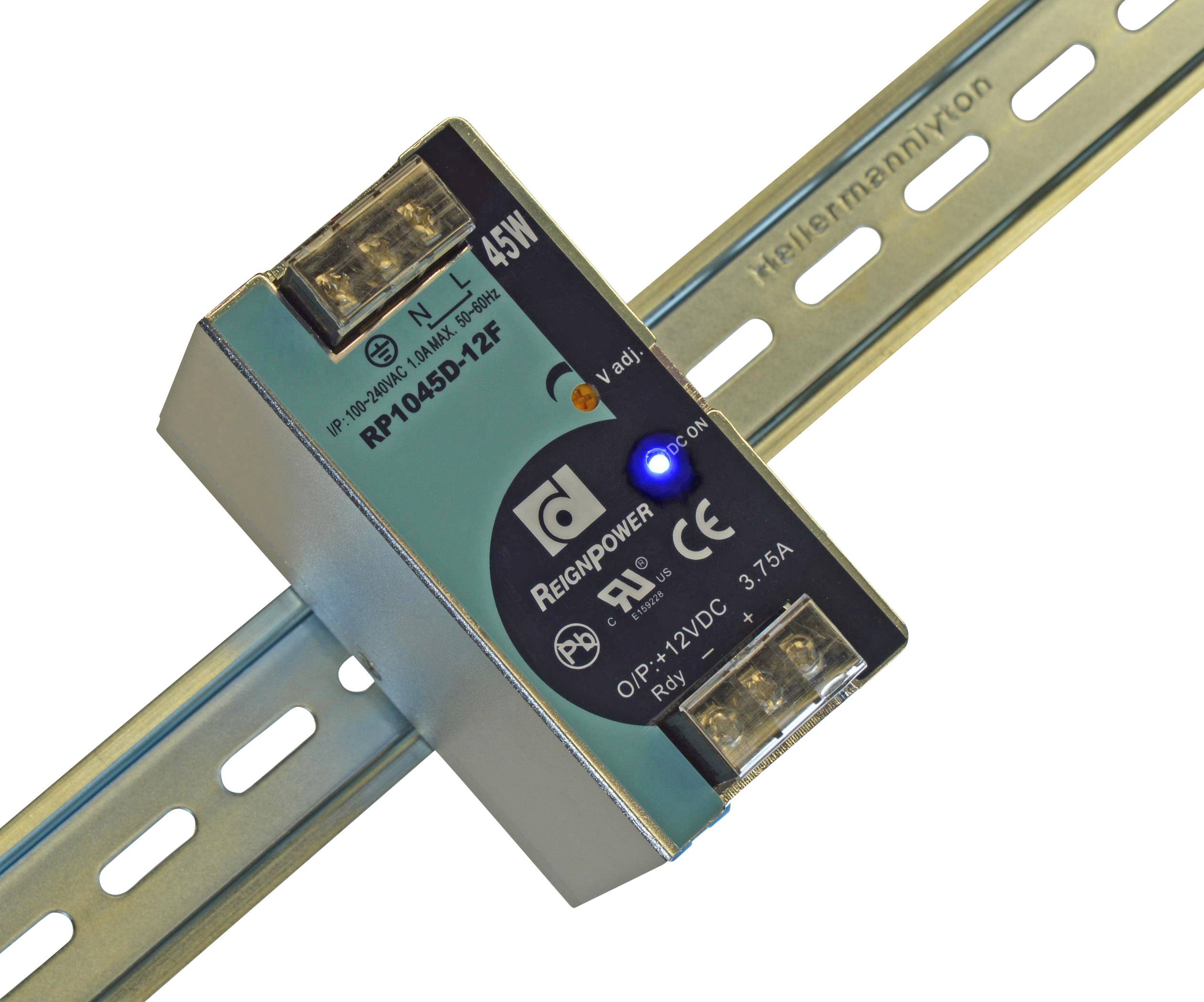

A ReignPower electrical device, with a blue LED display, mounted on a metal bracket, shows 12 VDC, 3.75 A.

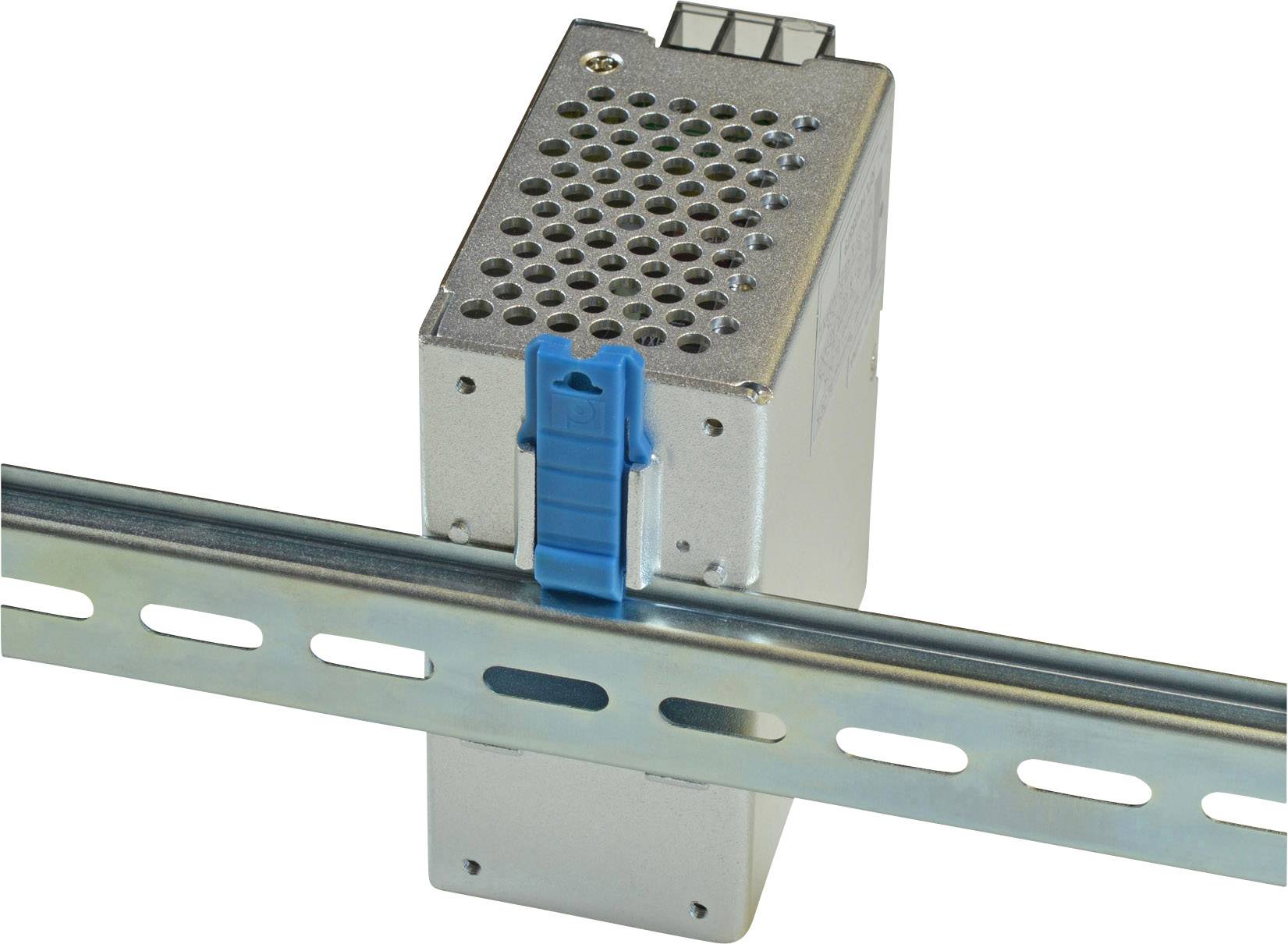

'A rectangular, metallic device with a perforated top is attached to a horizontal metal rail.'

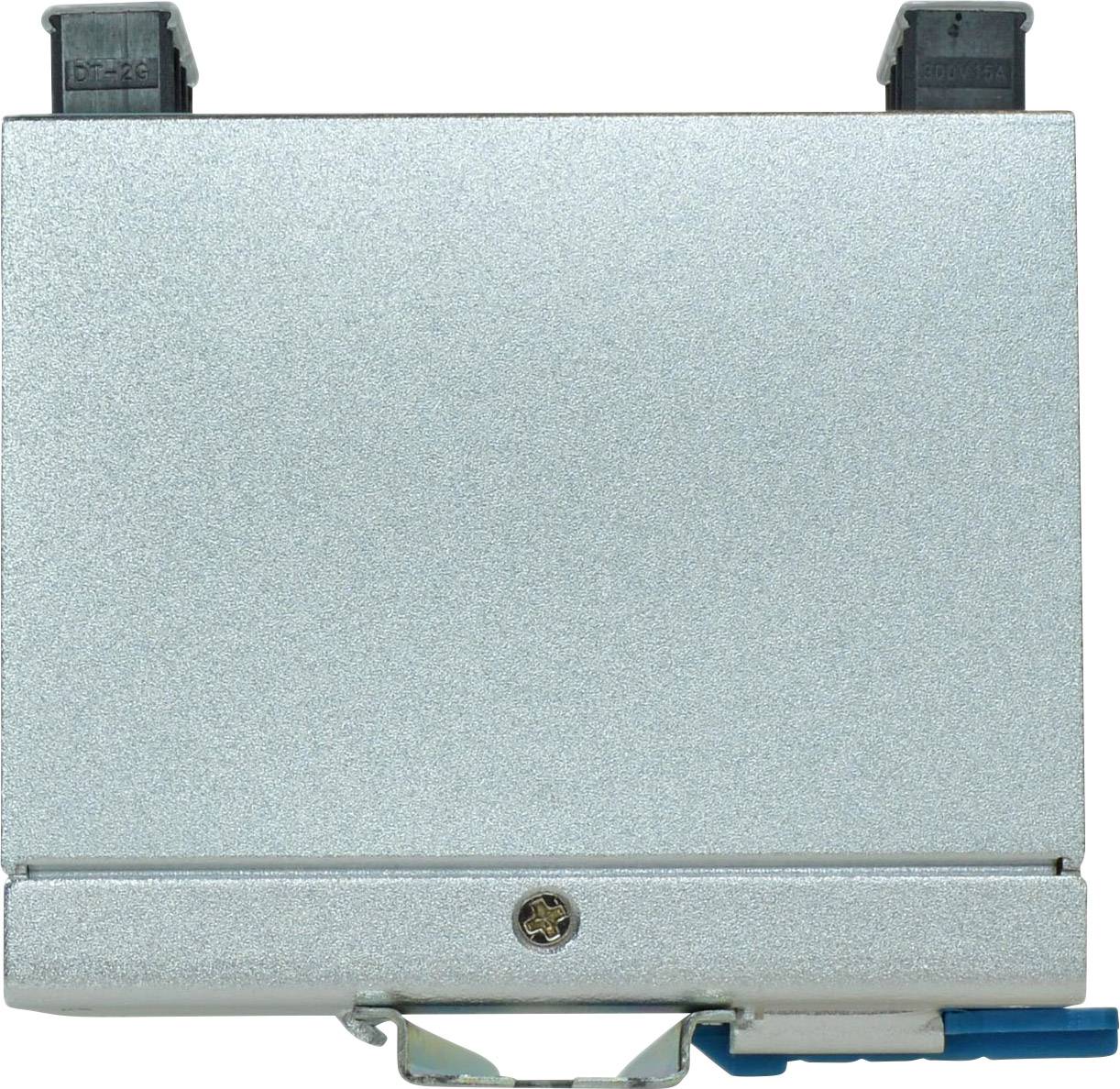

Metal case with two lateral plug connections, front view. A screw is visible in the lower area.

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Total (€ 36.97 / piece)

€ 36.97

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Dehner Elektronik DRP045D-48FTN Rail mounted PSU (DIN) 48 V DC 1 A 45 W No. of outputs:1 x Content 1 pc(s)

52.8 V DC/ 1 A
45 W Power
Input1 -phase
Input voltage range 100 - 240 Vac, 127 - 380 V DC
Connection (components): Screw terminal

Technical specifications

Nominal input voltage: 115 V/AC
230 V/AC
127 - 380 V/DC

Type: Switched Mode

Product type: Rail mounted PSU (DIN)

Min. input voltage: 100 V AC

Output voltage: 48 V DC

Input voltage: 100 - 240 Vac, 127 - 380 V DC

Input voltage (max.): 240 V AC

Max. output current: 1 A

Output current (max.) - rounded: 1 A

: 45 W

Phases: 1

Output voltage (nominal): 48 V DC

No. of outputs: 1 x

Connection: Screw terminal

Dim: (W x H x D) 49 x 100 x 83 mm

Weight: 310 g

Output voltage (max.): 52.8 V DC

Output voltage (min.): 43.2 V DC

Manufacturer part #: DRP045D-48FTN

Content: 1 pc(s)

MTBF: 350000 h

Width: 49 mm

Height: 100 mm

Type: DRP045D-48FTN

Depth: 83 mm

: 45 W

Connections: Screw terminals

Output current (details): 1.0 A

Documents & Downloads

Datasheet

Datasheet 510886 Dehner Elektronik DRP045D-48FTN Rail mounted PSU (DIN) 48 V DC 1 A 45 W No. of outputs:1 x Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 510886 Dehner Elektronik DRP045D-48FTN Rail mounted PSU (DIN) 48 V DC 1 A 45 W No. of outputs:1 x Content 1 pc(s)

Warranty Terms

Warranty Terms 510886 Dehner Elektronik DRP045D-48FTN Rail mounted PSU (DIN) 48 V DC 1 A 45 W No. of outputs:1 x Content 1 pc(s)

Description

The Dehner Elektronik DRP045D-48FTN is a cost-effective reliable DIN rail mount power supply with robust metal enclosure.

Features

Standard DIN-Rail-Mounted device
Long service life through Use of high quality Components
Protection against Overload and Short circuit with automatic Restart
International Deployment of universal Voltage input of 100 - 240 V / AC 47 - 440 Hz or 127 - 380 V / DC
All Models are made for Parallel operation
Output voltage ± 10% adjustable at Front side
Safety/Reliability in accordance with CE, CSA, UL, EMC/EMS EN55022 Class B, EN61000-3-2.3, EN55024, EN61000-4-2.3.4.5.6.8.11.
