Dehner Elektronik MPU-101-108 Bench PSU (fixed voltage) 24 V DC 4160 mA 100 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 113.44 / piece)
€ 113.44
plus VAT.
Only 9 Piece(s) available
Highlights & Details

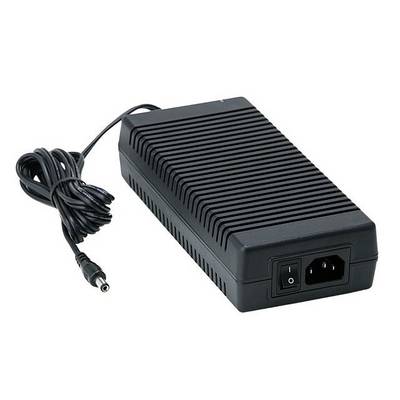

Dehner Elektronik MPU-101-108 Bench PSU (fixed voltage) 24 V DC 4160 mA 100 W
- Certified for medical use to EN 60601
- Max Power: 100W
- Voltage: 24V DC
- Current: 4.16A
- Technology: Switched Mode
- Power Tip: DC-hollow plug 5.5 x 2.1 mm
Technical specifications
- Product type
Bench PSU (fixed voltage)
- Used at
Mains socket
- Max. output current
4160 mA
- Output current (max.) - rounded
4.16 A
- Output
5.5/2.1 coaxial connector
- Output voltage
24 V DC
- Input voltage
115 V AC
230 V AC
- No. of outputs
1 x
- Connections
DC-hollow plug 5.5 x 2.1 mm
- Type
MPU-100-108
- Inputs
IEC 320 C14
- EuP Status
Exempt
- Weight
900 g
100 W
- Type
Switched Mode
- Width
90 mm
- Height
44 mm
- Length
189 mm
- Type
MPU-101-108
100 W
- Output rating
100 W
- Output voltage
24 V DC
- Output current (details)
4.16 A
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 510493 Dehner Elektronik MPU-101-108 Bench PSU (fixed voltage) 24 V DC 4160 mA 100 W
User & Safety Instructions
User & Safety Instructions 510493 Dehner Elektronik MPU-101-108 Bench PSU (fixed voltage) 24 V DC 4160 mA 100 W
Warranty Terms
Warranty Terms 510493 Dehner Elektronik MPU-101-108 Bench PSU (fixed voltage) 24 V DC 4160 mA 100 W
Description
Compact power supply with integrated power switch and wide input range. Thanks to the EN60601 approval these devices can also be used in medical applications.
Features
- Short circuit and overload protection with automatic restart
- DC-DC Plug 5.5 x 2.1 mm, polarity + inside
- Output cable 1.8 m
- Safety as per CE, TÜV, cUL.
Scope of delivery
- Power cable
- User manual.
