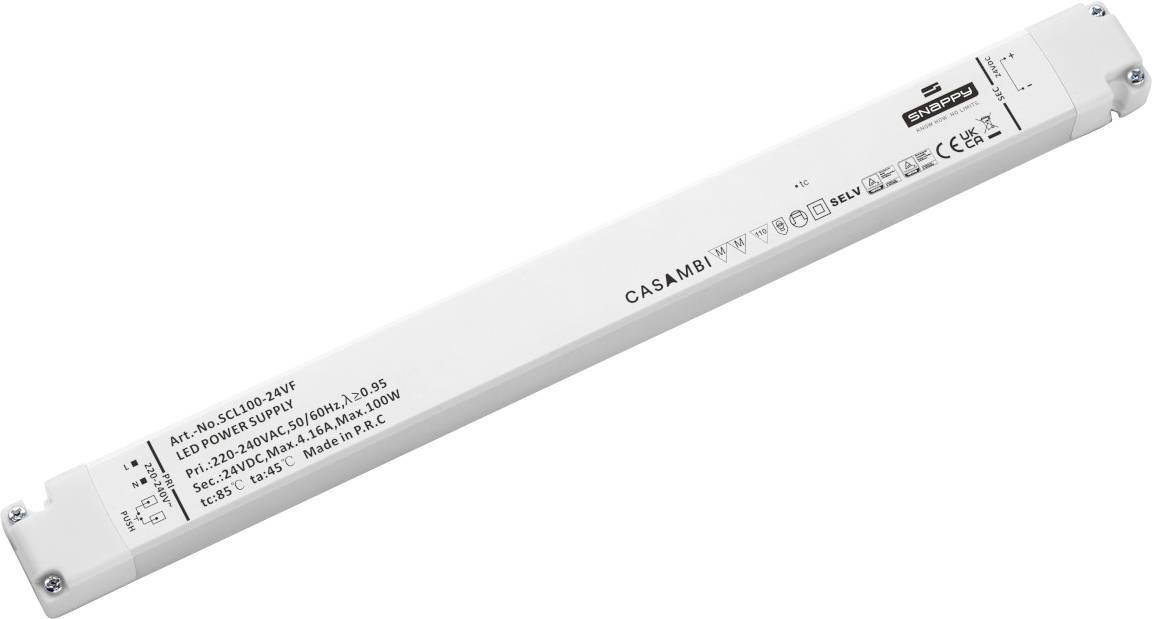

Dehner Elektronik SCL100-24VF LED driver, LED transformer, LED dimmer Constant voltage 100 W 0 - 4.16 A 24 V DC dimmable
EAN:
Part number:
Item no:
Highlights & Details
SCL100-24VF
- Constant voltage
- 24 V DC
- 0 - 4.16 A
Technical specifications
- Product type
LED driver
- Type
Constant voltage
- Dim
(L x W x H) 340 x 33 x 23 mm
- Factory colour
White orange
- Output voltage (max.)
24 V DC
- Output voltage (min.)
24 V DC
- Test mark
SELV,MM,UKCA,TÜV
- Max. output current
4.16 A
- Output current (max.) - rounded
4.16 A
- Operating voltage
230 V AC
- Protection class
IP20
- LED driver features
dimmable
adjustable
Approved for use on furniture
Overvoltage
Surge protection
IP20 (terminals)
- Connection
Screw terminal
- Max. power
100 W
- No. of outputs
1 x
- No. of inputs
1 x
- Output current (min.)
0 A
- Input voltage (max.)
264 V AC
- Min. input voltage
198 V AC
- Weight
240 g
- Power range
100 W (max)
- Width
33 mm
- Height
23 mm
- Length
340 mm
- Max. temperature
45 °C
- Min. temperature
-20 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3350553 Dehner Elektronik SCL100-24VF LED driver, LED transformer, LED dimmer Constant voltage 100 W 0 - 4.16 A 24 V DC dimmable
Warranty Terms
Warranty Terms 3350553 Dehner Elektronik SCL100-24VF LED driver, LED transformer, LED dimmer Constant voltage 100 W 0 - 4.16 A 24 V DC dimmable
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
