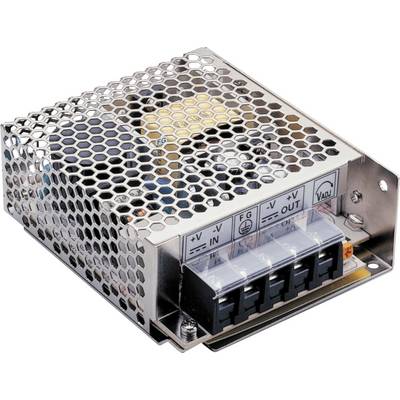

Dehner Elektronik SDS 050L-12 DC/DC converter 4.2 A 50 W Content 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 77.30 / piece)
€ 77.30
plus VAT.
Only 3 Piece(s) available
Technical specifications
- Product type
DC/DC converter
- Type
SDS 050L-12
- Min. input voltage
9.5 V DC
- Input voltage (max.)
36 V DC
- Max. output current
4.2 A
- Output current (max.) - rounded
4.2 A
50 W
- Connection
Screw terminal
- PSU features
Adjustable voltage output
DC-to-DC converter
- Dim
(L x W x H) 99 x 82 x 35 mm
- Height
35 mm
- Length
99 mm
- Width
82 mm
- Output voltage (max.)
12 V
- Weight
300
- Content
1 pc(s)
- Max. operating temperature (derating)
70 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2201324 Dehner Elektronik SDS 050L-12 DC/DC converter 4.2 A 50 W Content 1 pc(s)
Warranty Terms
Warranty Terms 2201324 Dehner Elektronik SDS 050L-12 DC/DC converter 4.2 A 50 W Content 1 pc(s)
Description
Standard mounting device, thus identical to products of other power supply manufacturers.Very long service life through the installation of high-quality components such as Nippon Chemi-Con capacitors or similar, thus high MTBF rate. Protection measures against overload, overvoltage and short circuit with automatic restart Wide-range DC voltage input. · Increased temperature range of +70 ºC with derating High efficiency through modern switching technology.
