Buy Dehner Elektronik SPE 320-24 (24V 13.4A) SMPSU 24 V DC 13.4 A 320 W

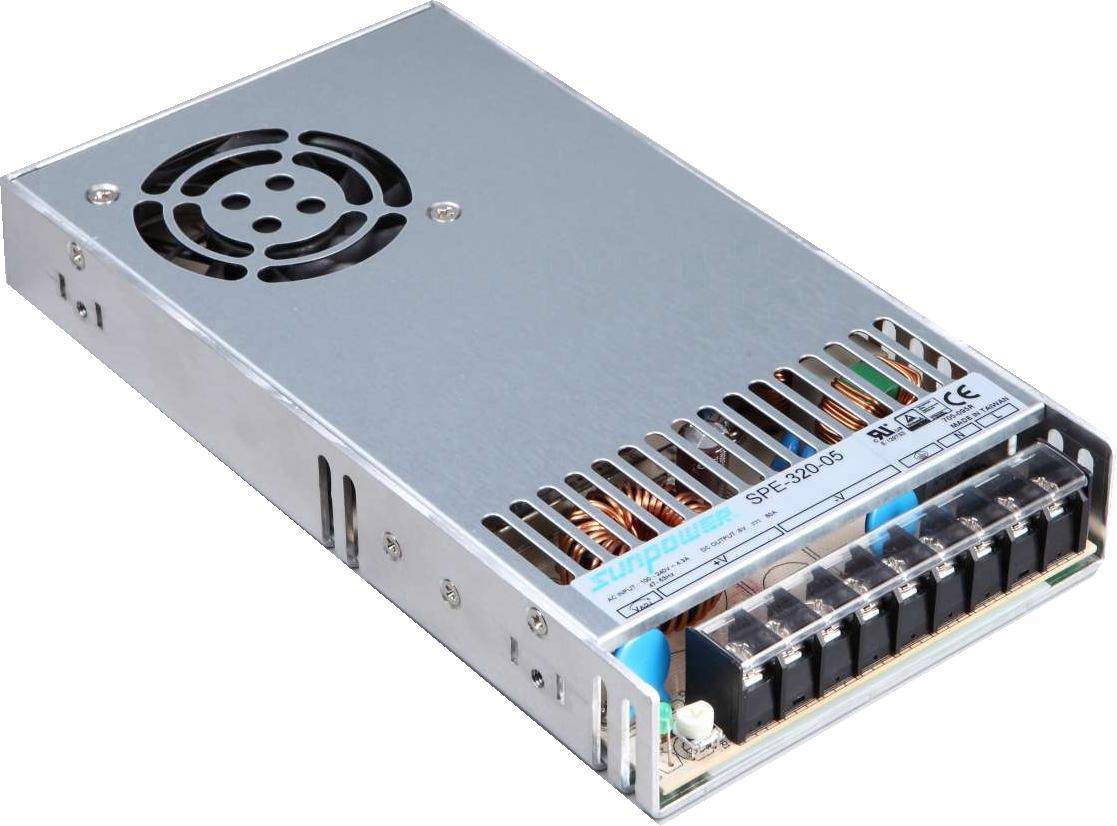

A rectangular metal enclosure with a fan on the top and several electrical connections on the front.

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Built-in power supply SPE 320-24

Output 24 V DC / 13.4 A
Power 320 W
Screw terminal

Technical specifications

Product type: SMPSU

Input voltage (max.): 264 V AC

Max. output current: 13.4 A

Output current (max.) - rounded: 13.4 A

Min. input voltage: 85 V AC

Dim: (L x W x H) 212 mm x 115 cm x 30 mm

Output voltage (max.): 24 V DC

Connection: Screw terminal

: 320 W

No. of outputs: 1 x

Type: closed

Min. operating temperature (derating): 70 °C

Weight: 720 g

PSU features: Regulated

Width: 115 cm

Height: 30 mm

Length: 212 mm

Type: SPE 320-24 (24V 13.4A)

MTBF: 179000 h

Output voltage (min.): 24 V DC

PFC: Yes

Max. temperature: 85 °C

Min. temperature: -40 °C

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1783164 Dehner Elektronik SPE 320-24 (24V 13.4A) SMPSU 24 V DC 13.4 A 320 W

Warranty Terms

Warranty Terms 1783164 Dehner Elektronik SPE 320-24 (24V 13.4A) SMPSU 24 V DC 13.4 A 320 W

Description

With the SPE-series expands Sunpower its portfolio for the needs of the music, film and advertising industry and recording studios, music producers and artists. Further applications are applications for the acoustic irradiation of arenas, exhibition halls and large events, electronic devices for content creation and consumer electronics.

By the approved under the from 21. June 2019 applicable standard EN 62368-1, developers can the power supplies of the SPE-series for applications of various kinds future-proof. The low profile of only 30 mm makes it suitable for 1U rack.

The Standard IEC/EN 62368-1 summarizes the existing safety standards for IT applications (IEC/EN 60950-1) and for audio/video applications (IEC/EN 60065). The new standard deals with safety aspects for both IT and telecommunications applications as well as for audio and video applications.

This text is machine translated.
