Buy Dehner Elektronik SPE 500-12 (12V 41.7A) SMPSU 12 V DC 41.7 A 500 W

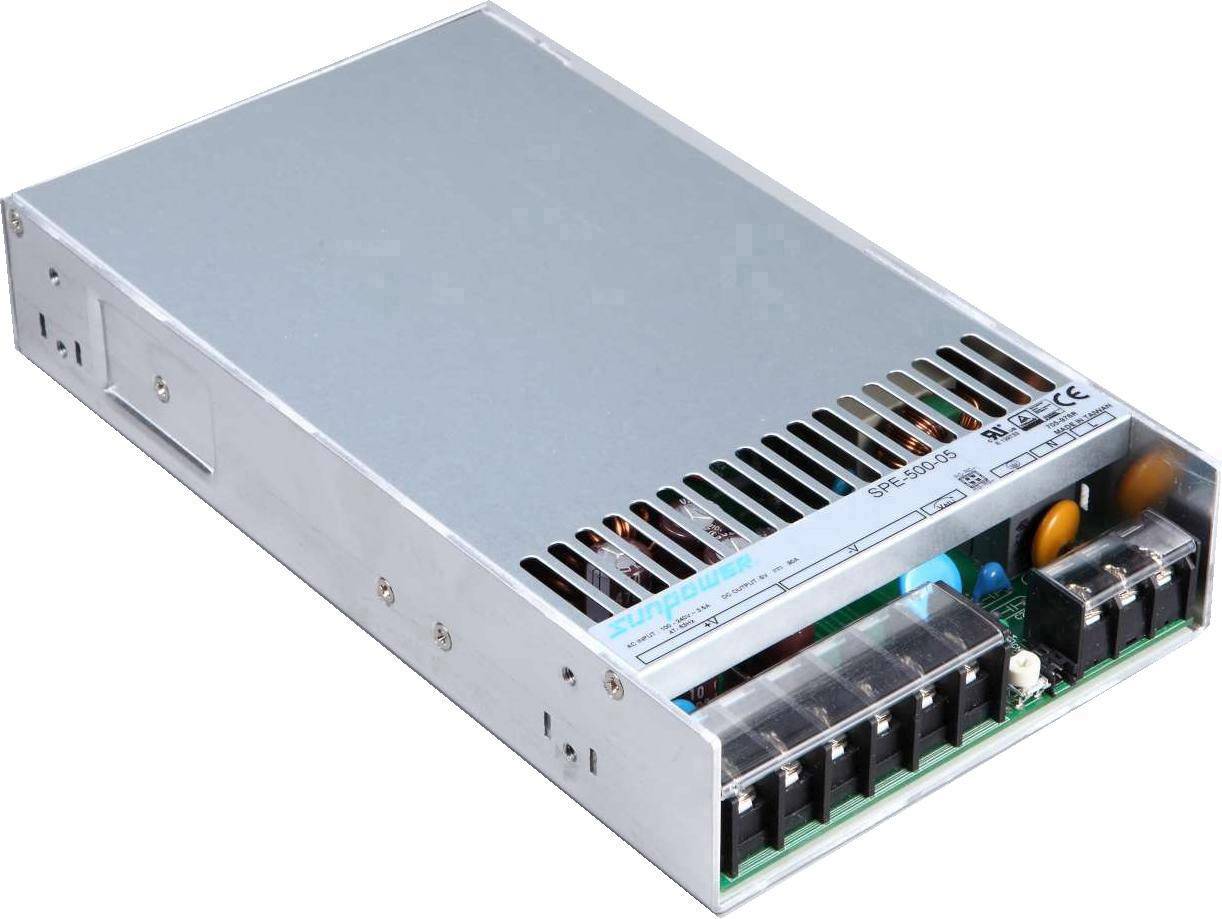

A silver power supply unit with ventilation slots and multiple ports on the front panel.

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Built-in power supply SPE 500-12

Output 12 V DC / 41.7 A
Power 500 W
Screw terminal

Technical specifications

Product type: SMPSU

Input voltage (max.): 264 V AC

Max. output current: 41.7 A

Output current (max.) - rounded: 41.7 A

Min. input voltage: 85 V AC

Dim: (L x W x H) 235 x 127 x 41 mm

Output voltage (max.): 12 V DC

Connection: Screw terminal

: 500 W

No. of outputs: 1 x

Type: closed

Max. operating temperature (derating): 70 °C

Weight: 1223 g

PSU features: Regulated

Width: 127 mm

Height: 41 mm

Length: 235 mm

Type: SPE 500-12 (12V 41.7A)

MTBF: 179000 h

Output voltage (min.): 12 V DC

PFC: Yes

Max. temperature: 85 °C

Min. temperature: -40 °C

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1783165 Dehner Elektronik SPE 500-12 (12V 41.7A) SMPSU 12 V DC 41.7 A 500 W

Warranty Terms

Warranty Terms 1783165 Dehner Elektronik SPE 500-12 (12V 41.7A) SMPSU 12 V DC 41.7 A 500 W

Description

With the SPE-series expands Sunpower its portfolio for the needs of the music, film and advertising industry and recording studios, music producers and artists. Further applications are applications for the acoustic irradiation of arenas, exhibition halls and large events, electronic devices for content creation and consumer electronics.

By the approved under the from 21. June 2019 applicable standard EN 62368-1, developers can the power supplies of the SPE-series for applications of various kinds future-proof. The low profile of only 40.6 mm, it also for 1U racks.

The Standard IEC/EN 62368-1 summarizes the existing safety standards for IT applications (IEC/EN 60950-1) and for audio/video applications (IEC/EN 60065). The new standard deals with safety aspects for both IT and telecommunications applications as well as for audio and video applications.

This text is machine translated.
