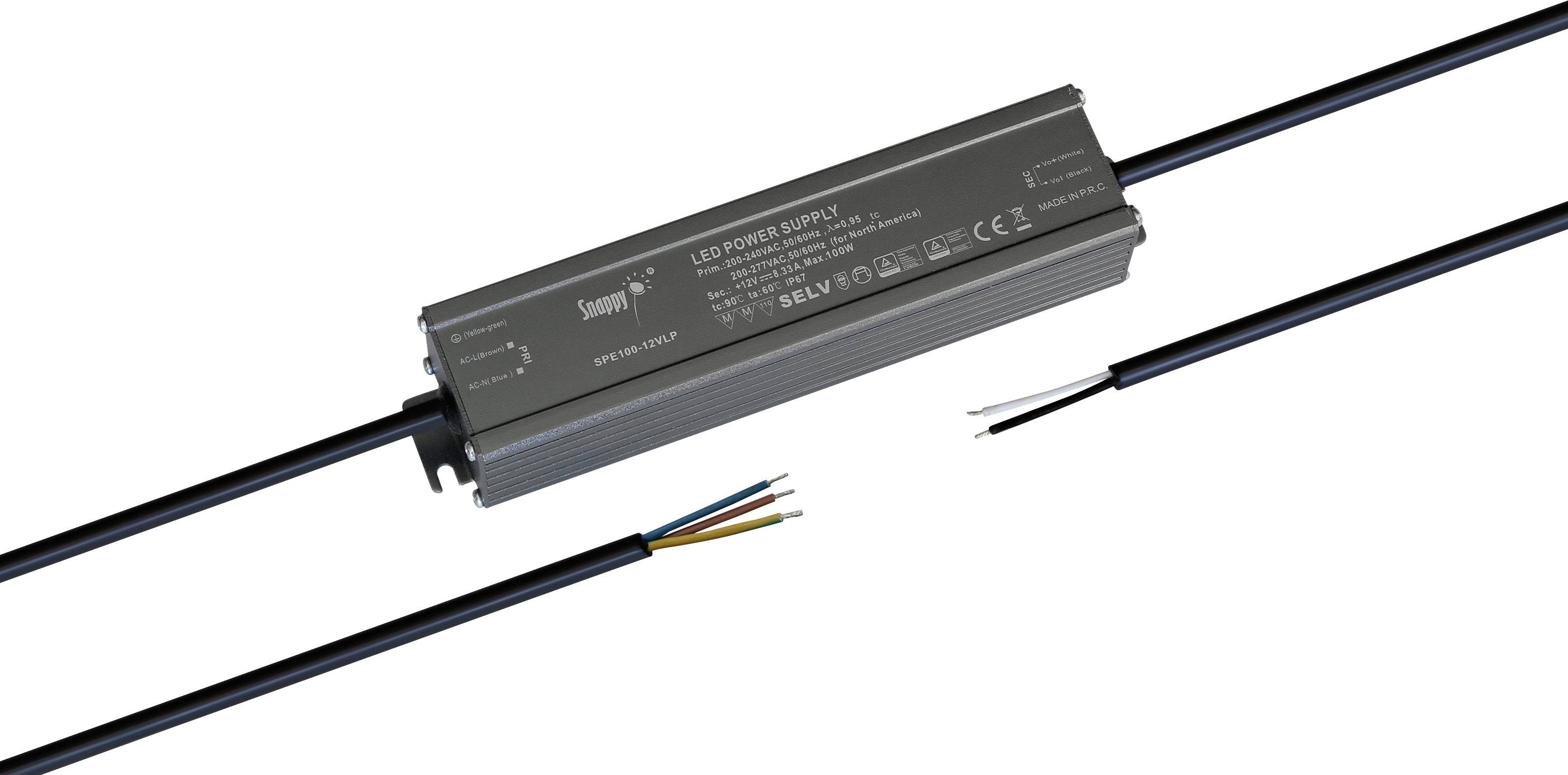

Dehner Elektronik SPE100-12VLP LED driver, LED transformer Constant voltage 100 W 8.33 A 12 V Outdoor, Approved for use
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 41.17 / piece)
€ 41.17
plus VAT.
Only 2 Piece(s) available
Highlights & Details
LED power supply LED 12V100W-MM-IP67 (SPE100-12VLP) Dehner Elektronik GmbH
- Constant voltage
- 12 V
- 8.33 A
Technical specifications
- Product type
LED driver
- Type
Constant voltage
- Dim
(L x W x H) 212 x 46 x 38.3 mm
- Factory colour
Silver (matt)
- Output voltage (max.)
12 V
- Output voltage (min.)
12 V
- Test mark
MM; SELV; TÜV
- Max. output current
8.33 A
- Output current (max.) - rounded
8.33 A
- Protection class
IP67
- LED driver features
Outdoor
Approved for use on furniture
Surge protection
Overvoltage
IP65/67
- Connection
Open end cable
- Max. power
100 W
- No. of outputs
1 x
- No. of inputs
1 x
- Type
Switched PSU
- Output current (min.)
8.33 A
- Input voltage (max.)
277 V AC
- Min. input voltage
200 V AC
- Weight
330 g
- Power (min.)
100 W
- Power range
100 up to 100 W
- Width
46 mm
- Height
38.3 mm
- Length
212 mm
- Max. temperature
60 °C
- Min. temperature
-40 °C
Documents & Downloads
Datasheet
Datasheet 2246412 Dehner Elektronik SPE100-12VLP LED driver, LED transformer Constant voltage 100 W 8.33 A 12 V Outdoor, Approved for use
User & Safety Instructions
User & Safety Instructions 2246412 Dehner Elektronik SPE100-12VLP LED driver, LED transformer Constant voltage 100 W 8.33 A 12 V Outdoor, Approved for use
Warranty Terms
Warranty Terms 2246412 Dehner Elektronik SPE100-12VLP LED driver, LED transformer Constant voltage 100 W 8.33 A 12 V Outdoor, Approved for use
Description
Power supply specially designed for LED lighting. The constant voltage source is suitable for LED lighting, in which a control electronics is connected upstream e.g. for brightness control.
This text is machine translated.
This text is machine translated.
Scope of delivery
- User manual
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
