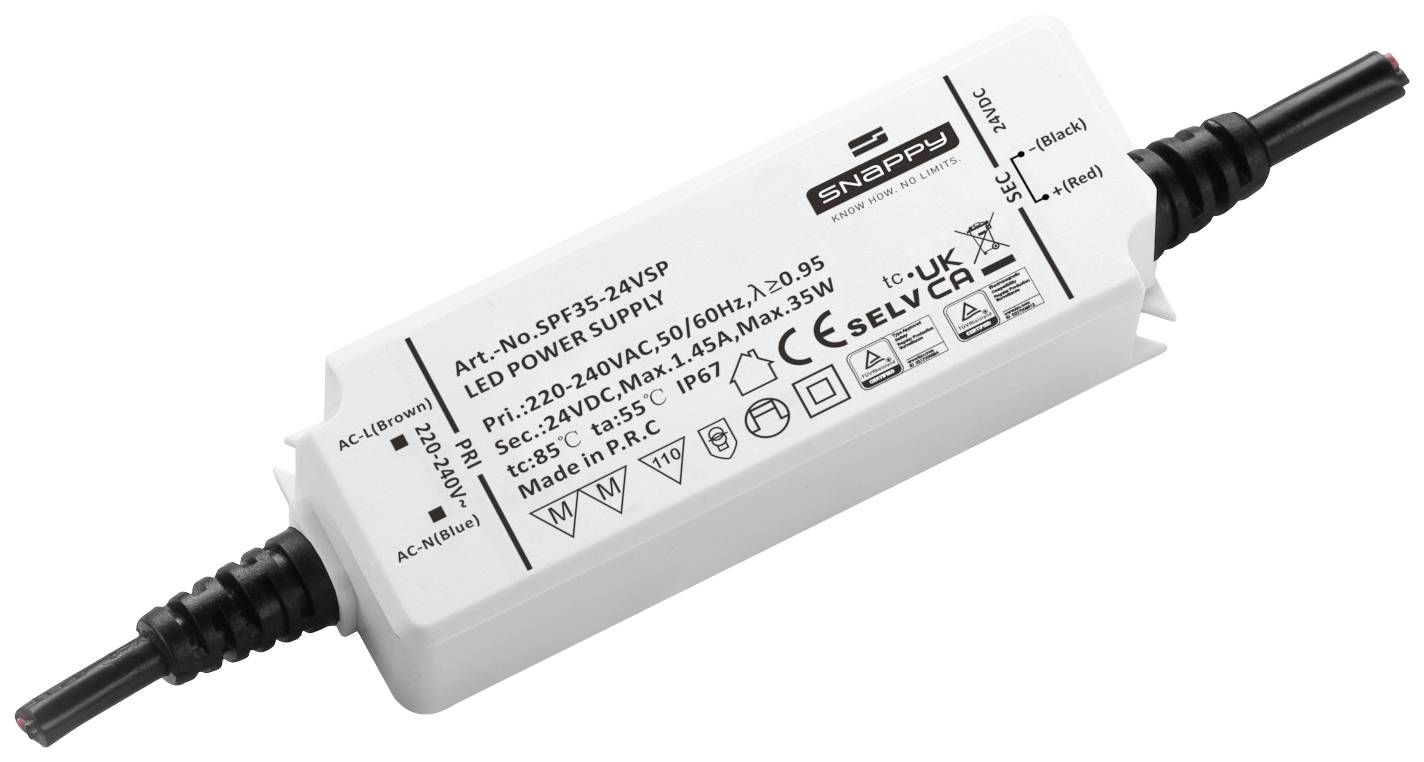

Dehner Elektronik SPF 35-24VSP LED transformer, LED driver Constant voltage 35 W 1.4 A 24 V Approved for use on furnitur
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 14.28
3
6% = € 0.79
€ 13.49
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 14.28 / piece)
€ 14.28
plus VAT.
Only 6 Piece(s) available
Highlights & Details
SPF 35-24VSP
- Constant voltage
- 24 V
- 1.4 A
Technical specifications
- Product type
LED transformer
- Type
Constant voltage
- Operating current
1.4 A
- Dim
(L x W x H) 110 x 38 x 30 mm
- Factory colour
White
- Output voltage (max.)
24 V
- Test mark
MM; SELV; TÜV; ; UKCA
- Max. output current
1.4 A
- Output current (max.) - rounded
1.4 A
- Protection class
IP67
- LED driver features
Approved for use on furniture
Surge protection
Overvoltage
IP65/67
- Connection
Open cable ends
- Max. power
35 W
- No. of outputs
1 x
- No. of inputs
1 x
- Input voltage (max.)
264 V AC
- Min. input voltage
198 V AC
- Weight
250 g
- Power range
35 W (max)
- Type
Switched PSU
- Width
38 mm
- Height
30 mm
- Length
110 mm
- Max. temperature
45 °C
- Min. temperature
-20 °C
Documents & Downloads
Datasheet
Datasheet 3015427 Dehner Elektronik SPF 35-24VSP LED transformer, LED driver Constant voltage 35 W 1.4 A 24 V Approved for use on furnitur
User & Safety Instructions
User & Safety Instructions 3015427 Dehner Elektronik SPF 35-24VSP LED transformer, LED driver Constant voltage 35 W 1.4 A 24 V Approved for use on furnitur
Warranty Terms
Warranty Terms 3015427 Dehner Elektronik SPF 35-24VSP LED transformer, LED driver Constant voltage 35 W 1.4 A 24 V Approved for use on furnitur
Description
Power supply specially designed for LED lighting, especially compact and inconspicuous design. Suitable for various LED applications in the interior (e.g. decoration, furniture installation, suspended ceilings).
This text is machine translated.
This text is machine translated.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
