Dehner Elektronik SPF 60-24VSP LED transformer, LED driver Constant voltage 60 W 2.5 A 24 V Approved for use on furnitur
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 17.64
3
5% = € 0.88
€ 16.76
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 17.64 / piece)
€ 17.64
plus VAT.
Only 8 Piece(s) available
Highlights & Details

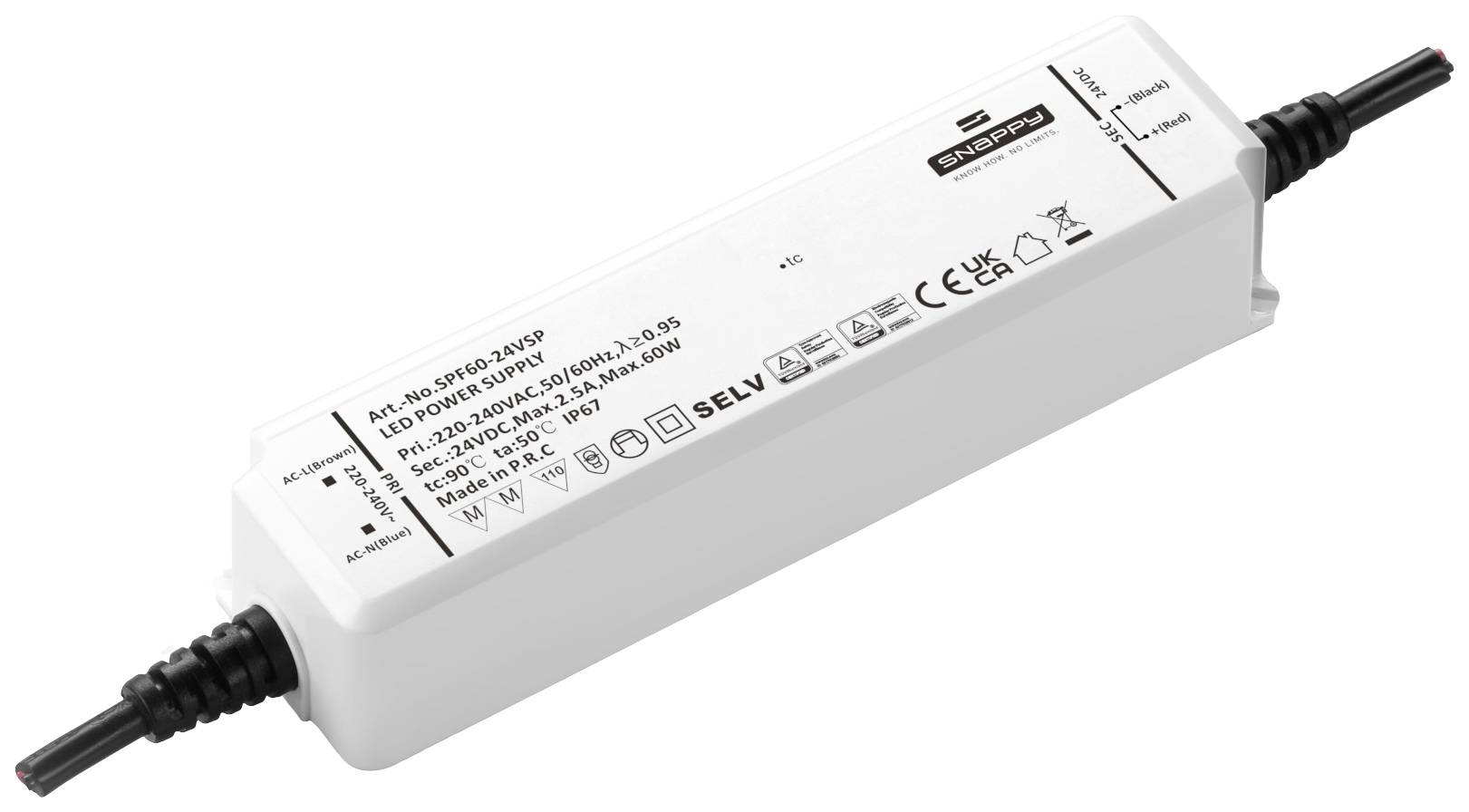

LED Power Supply Driver SPF 60-24VSP Dehner Elektronik GmbH
- Constant voltage
- 24 V
- 2.5 A
Technical specifications
- Product type
LED transformer
- Type
Constant voltage
- Operating current
2.5 A
- Dim
(L x W x H) 155 x 40 x 30 mm
- Factory colour
White
- Output voltage (max.)
24 V
- Test mark
MM; SELV; TÜV; ; UKCA
- Max. output current
2.5 A
- Output current (max.) - rounded
2.5 A
- Protection class
IP67
- LED driver features
Approved for use on furniture
Surge protection
Overvoltage
IP65/67
- Connection
Open cable ends
- Max. power
60 W
- No. of outputs
1 x
- No. of inputs
1 x
- Input voltage (max.)
264 V AC
- Min. input voltage
198 V AC
- Weight
366 g
- Power range
60 W (max)
- Type
Switched PSU
- Width
40 mm
- Height
30 mm
- Length
155 mm
- Max. temperature
45 °C
- Min. temperature
-20 °C
Documents & Downloads
Datasheet
Datasheet 3015429 Dehner Elektronik SPF 60-24VSP LED transformer, LED driver Constant voltage 60 W 2.5 A 24 V Approved for use on furnitur
User & Safety Instructions
User & Safety Instructions 3015429 Dehner Elektronik SPF 60-24VSP LED transformer, LED driver Constant voltage 60 W 2.5 A 24 V Approved for use on furnitur
Warranty Terms
Warranty Terms 3015429 Dehner Elektronik SPF 60-24VSP LED transformer, LED driver Constant voltage 60 W 2.5 A 24 V Approved for use on furnitur
Description
Power supply specially designed for LED lighting, especially compact and inconspicuous design. Suitable for various LED applications in the interior (e.g. decoration, furniture installation, suspended ceilings).
This text is machine translated.
This text is machine translated.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
