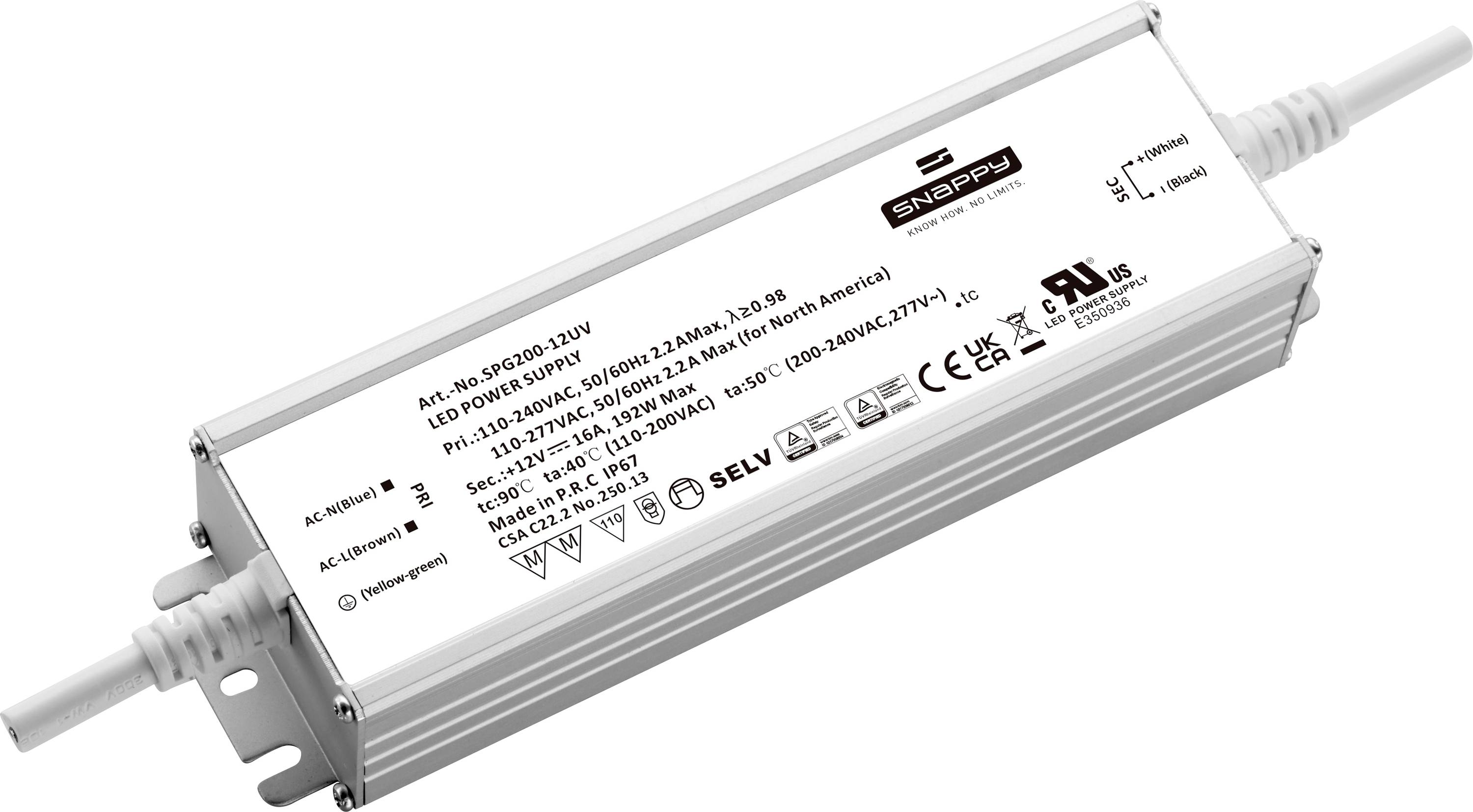

Dehner Elektronik SPG 200-12V LED driver Constant voltage 200 W 16 A 12 V DC Surge protection, Outdoor, Approved for use
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 47.05 / piece)
€ 47.05
plus VAT.
Only 4 Piece(s) available
Highlights & Details
LED driver power supply SPG 200-12V Dehner Elektronik GmbH
- Constant voltage
- 12 V DC
- 16 A
Technical specifications
- Product type
LED driver
- Type
Constant voltage
- Dim
(L x W x H) 220 x 62.5 x 38 mm
- Factory colour
White
- Output voltage (max.)
12 V DC
- Output voltage (min.)
12 V DC
- Test mark
MM; SELV; TÜV; CE; UKCA
- Max. output current
16 A
- Output current (max.) - rounded
16 A
- Protection class
IP67
- LED driver features
Surge protection
Outdoor
Approved for use on furniture
Overvoltage
IP67
- Connection
Open end cable
- Max. power
200 W
- No. of outputs
1 x
- No. of inputs
1 x
- Input voltage (max.)
277 V AC
- Min. input voltage
200 V AC
- Weight
900 g
- Power (min.)
200 W
- Power range
200 up to 200 W
- Type
Switched PSU
- Width
62.5 mm
- Height
38 mm
- Length
220 mm
Documents & Downloads
Datasheet
Datasheet 3771392 Dehner Elektronik SPG 200-12V LED driver Constant voltage 200 W 16 A 12 V DC Surge protection, Outdoor, Approved for use
User & Safety Instructions
User & Safety Instructions 3771392 Dehner Elektronik SPG 200-12V LED driver Constant voltage 200 W 16 A 12 V DC Surge protection, Outdoor, Approved for use
Conformity certificate
Conformity certificate 3771392 Dehner Elektronik SPG 200-12V LED driver Constant voltage 200 W 16 A 12 V DC Surge protection, Outdoor, Approved for use
Warranty Terms
Warranty Terms 3771392 Dehner Elektronik SPG 200-12V LED driver Constant voltage 200 W 16 A 12 V DC Surge protection, Outdoor, Approved for use
Description
Discover the SPG200-12 LED power supply from Snapppy - the ideal power supply for your demanding LED projects!
With a power of up to 200Wand IP67 protection class it is perfectly suitable for indoors and outdoors. Whether for LED lighting or movable signs – this power supply provides a constant voltage (12V) and convinces by:
Universal input voltage** 200–277VAC, 50/60Hz – can be used worldwide!
Intelligent Protection:** Short circuit, overload, overvoltage and overheating protection for maximum safety.
Energy efficiency:** Integrated **active PFC function** (power factor ≥ 0.98) for optimal energy utilization.
Long-lasting & reliable:** 100% burn-in test under full load - **5 years warranty** for trouble-free operation!
Compact & robust:** Dimensions only **220.6 × 62.5 × 38 mm** – Ideal for space-saving installation.
Certified & safe:** Fulfils international safety standards for LED lighting.
Perfect for:
Professional LED lighting
Moving signs & advertising plants
Indoor and outdoor applications
Easily. Thin. Intelligent. Reliable.
This text is machine translated.
With a power of up to 200Wand IP67 protection class it is perfectly suitable for indoors and outdoors. Whether for LED lighting or movable signs – this power supply provides a constant voltage (12V) and convinces by:
Universal input voltage** 200–277VAC, 50/60Hz – can be used worldwide!
Intelligent Protection:** Short circuit, overload, overvoltage and overheating protection for maximum safety.
Energy efficiency:** Integrated **active PFC function** (power factor ≥ 0.98) for optimal energy utilization.
Long-lasting & reliable:** 100% burn-in test under full load - **5 years warranty** for trouble-free operation!
Compact & robust:** Dimensions only **220.6 × 62.5 × 38 mm** – Ideal for space-saving installation.
Certified & safe:** Fulfils international safety standards for LED lighting.
Perfect for:
Professional LED lighting
Moving signs & advertising plants
Indoor and outdoor applications
Easily. Thin. Intelligent. Reliable.
This text is machine translated.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
