Name: Dehner Elektronik SPS N080-ID1 Industrial PSU 80 W
Brand: Dehner Elektronik
SKU: 3455176

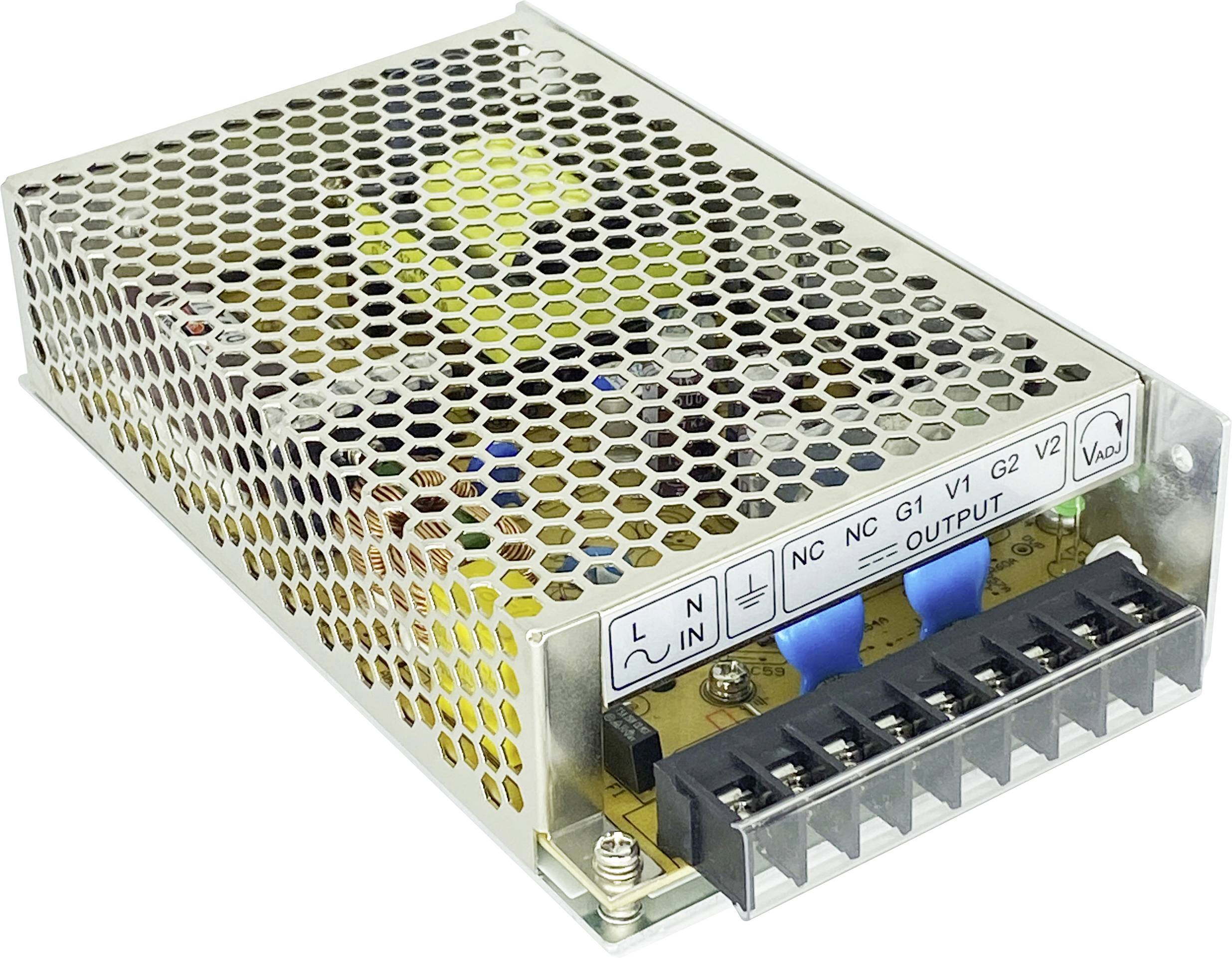

A metallic power supply unit with a perforated casing, showing input and output terminals, labeled 'L IN' and 'OUTPUT'.

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Industrial power supply SPS N080-ID1 SunPower - Dehner Elektronik GmbH

Output /
Power 80 W
Screw terminal

Technical specifications

Type: Switched PSU

Product type: Industrial PSU

Input voltage (max.): 264 V AC
375 V DC

Min. input voltage: 88 V AC
125 V DC

Dim: (L x W x H) 16 x 9.5 x 4 cm

Connection: Screw terminal

: 80 W

Efficiency to: 80 %

Tolerance (output voltage): 5 %

No. of outputs: 2 x

Output voltage 1: 5 V DC

Output voltage 2: +/-12 V DC

Output current 1: 9 A

Output current 2: 4 A

Operating temperature (max.): 70 °C

Max. operating temperature (derating): 70 °C

Min. operating temperature (derating): -20 °C

Operating temperature (min.): -20 °C

Weight: 450 g

PSU features: Regulated

Width: 9.5 cm

Height: 4 cm

Length: 16 cm

Type: SPS N080-ID1

Documents & Downloads

Datasheet

Datasheet 3455176 Dehner Elektronik SPS N080-ID1 Industrial PSU 80 W

User & Safety Instructions

User & Safety Instructions 3455176 Dehner Elektronik SPS N080-ID1 Industrial PSU 80 W

Warranty Terms

Warranty Terms 3455176 Dehner Elektronik SPS N080-ID1 Industrial PSU 80 W

Description

High-performance, efficient power supply. Versatile application in industry, in information technology and for audio/video applications.

High-quality casing power supply with performance up to 80 watts. Can be used worldwide because of the wide-range input and up to a height of 5000 m above sea level With LED-power lamp, low interference emission. Suitable for ambient temperatures from -20 °C to 70 °C.

The output voltage is stabilised. The switched-mode power supply has a high degree of efficiency and therefore low heat generation.
