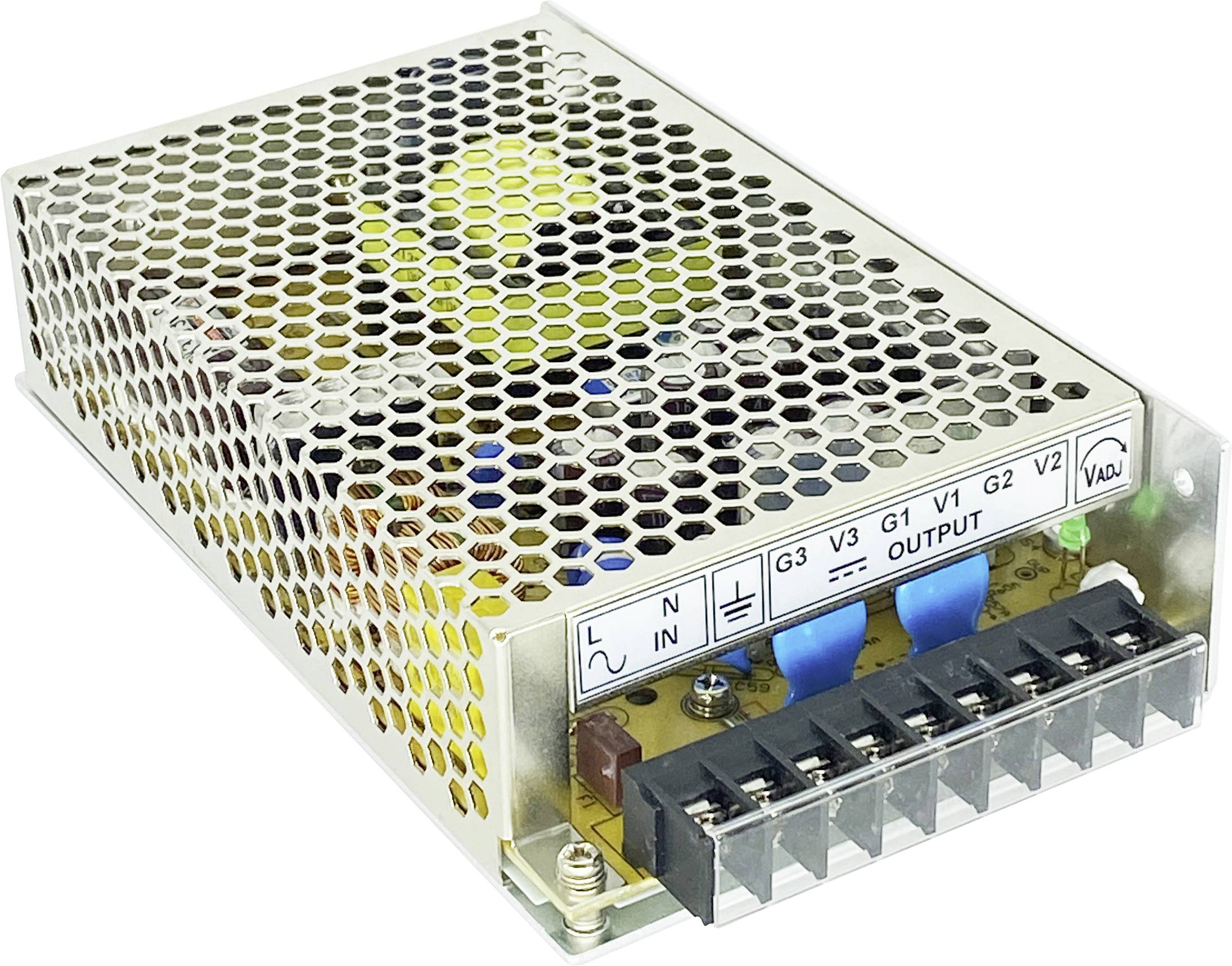

Dehner Elektronik SPS N080-IT4 Industrial PSU 80 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Industrial power supply SPS N080-IT4 SunPower - Dehner Elektronik GmbH
- Output /
- Power 80 W
- Screw terminal
Technical specifications
- Type
Switched PSU
- Product type
Industrial PSU
- Input voltage (max.)
264 V AC
375 V DC
- Min. input voltage
88 V AC
125 V DC
- Dim
(L x W x H) 16 x 9.5 x 4 cm
- Connection
Screw terminal
80 W
- Efficiency to
82 %
- Tolerance (output voltage)
6 %
- No. of outputs
3 x
- Output voltage 1
5 V
- Output voltage 2
+/-12 V DC
- Output voltage 3
+/-24 V DC
- Output current 1
8 A
- Output current 2
3.5 A
- Output current 3
1,5 A
- Operating temperature (max.)
70 °C
- Max. operating temperature (derating)
70 °C
- Min. operating temperature (derating)
-20 °C
- Operating temperature (min.)
-20 °C
- Weight
450 g
- PSU features
Regulated
- Width
9.5 cm
- Height
4 cm
- Length
16 cm
- Type
SPS N080-IT4
Documents & Downloads
Datasheet
Datasheet 3455179 Dehner Elektronik SPS N080-IT4 Industrial PSU 80 W
User & Safety Instructions
User & Safety Instructions 3455179 Dehner Elektronik SPS N080-IT4 Industrial PSU 80 W
Warranty Terms
Warranty Terms 3455179 Dehner Elektronik SPS N080-IT4 Industrial PSU 80 W
Description
High-performance, efficient power supply. Versatile application in industry, in information technology and for audio/video applications.
High-quality casing power supply with performance up to 80 watts. Can be used worldwide because of the wide-range input and up to a height of 5000 m above sea level With LED-power lamp, low interference emission. Suitable for ambient temperatures from -20 °C to 70 °C.
The output voltage is stabilised. The switched-mode power supply has a high degree of efficiency and therefore low heat generation.
This text is machine translated.
High-quality casing power supply with performance up to 80 watts. Can be used worldwide because of the wide-range input and up to a height of 5000 m above sea level With LED-power lamp, low interference emission. Suitable for ambient temperatures from -20 °C to 70 °C.
The output voltage is stabilised. The switched-mode power supply has a high degree of efficiency and therefore low heat generation.
This text is machine translated.
