Dehner Elektronik SPS N080-T4 AC/DC PSU module 24 V DC, 12 V DC, 5 V DC 8 A 82 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Industrial power supply SPS N080-T4 SunPower- Dehner Elektronik GmbH
- Output 24 V DC, 12 V DC, 5 V DC / 8 A
- Power 82 W
- Screw terminal
Technical specifications
- Type
Switched PSU
- Product type
AC/DC PSU module
- Input voltage (max.)
264 V AC
375 V DC
- Max. output current
8 A
- Output current (max.) - rounded
8 A
- Min. input voltage
88 V AC
125 V DC
- Dim
(L x W x H) 16 x 9.5 x 4 cm
- Output voltage (max.)
24 V DC
12 V DC
5 V DC
- Connection
Screw terminal
82 W
- Efficiency to
82 %
- Tolerance (output voltage)
6 %
- No. of outputs
3 x
- Output voltage 1
5 V AC
- Output voltage 2
12 V DC
- Output voltage 3
24 V DC
- Output current 1
8 A
- Output current 2
3.5 A
- Output current 3
1,5 A
- Type
closed
- Max. operating temperature (derating)
70 °C
- Min. operating temperature (derating)
-20 °C
- Operating temperature (min.)
-20 °C
- Weight
500 g
- PSU features
Regulated
- Width
9.5 cm
- Height
4 cm
- Length
16 cm
- Type
SPS N080-T4
Documents & Downloads
Datasheet
Datasheet 3455159 Dehner Elektronik SPS N080-T4 AC/DC PSU module 24 V DC, 12 V DC, 5 V DC 8 A 82 W
User & Safety Instructions
User & Safety Instructions 3455159 Dehner Elektronik SPS N080-T4 AC/DC PSU module 24 V DC, 12 V DC, 5 V DC 8 A 82 W
Warranty Terms
Warranty Terms 3455159 Dehner Elektronik SPS N080-T4 AC/DC PSU module 24 V DC, 12 V DC, 5 V DC 8 A 82 W
Description

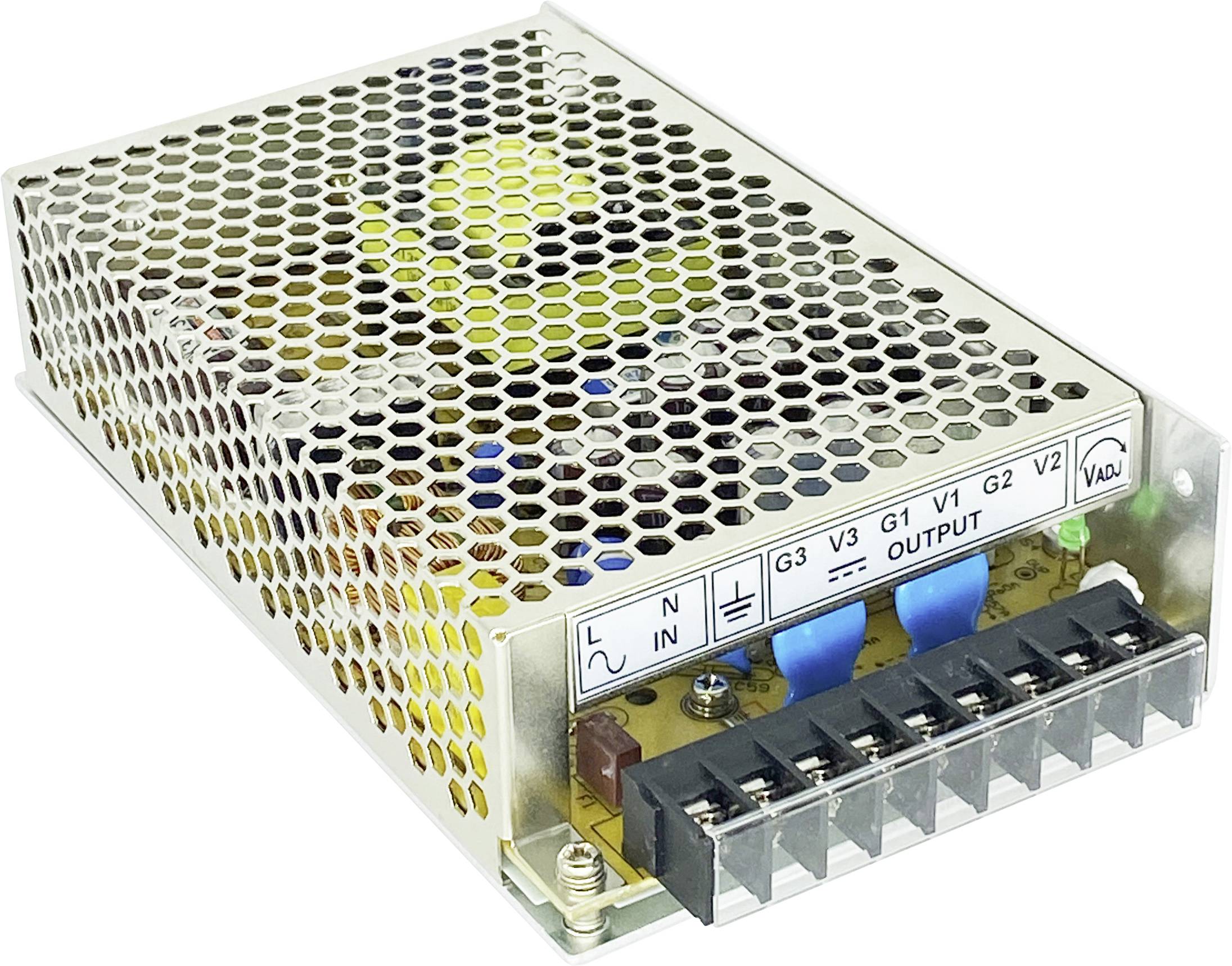

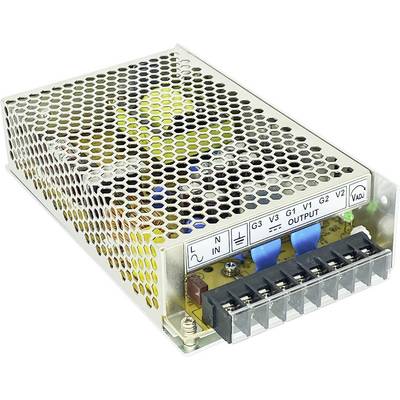

Switched-mode power supply in metal casing (closed design, enclosed) for providing double and triple regulated output voltage (Dual output / triple output).
High-performance, efficient power supply. Versatile application in industry, in information technology and for audio/video applications.
High-quality casing power supply with performance up to 80 watts. Can be used worldwide because of the wide-range input and up to a height of 5000 m above sea level With LED-power lamp, low interference emission. Suitable for ambient temperatures from -20 °C to 70 °C.
The output voltage is stabilised. The switched-mode power supply has a high degree of efficiency and therefore low heat generation.
This text is machine translated.
High-performance, efficient power supply. Versatile application in industry, in information technology and for audio/video applications.
High-quality casing power supply with performance up to 80 watts. Can be used worldwide because of the wide-range input and up to a height of 5000 m above sea level With LED-power lamp, low interference emission. Suitable for ambient temperatures from -20 °C to 70 °C.
The output voltage is stabilised. The switched-mode power supply has a high degree of efficiency and therefore low heat generation.
