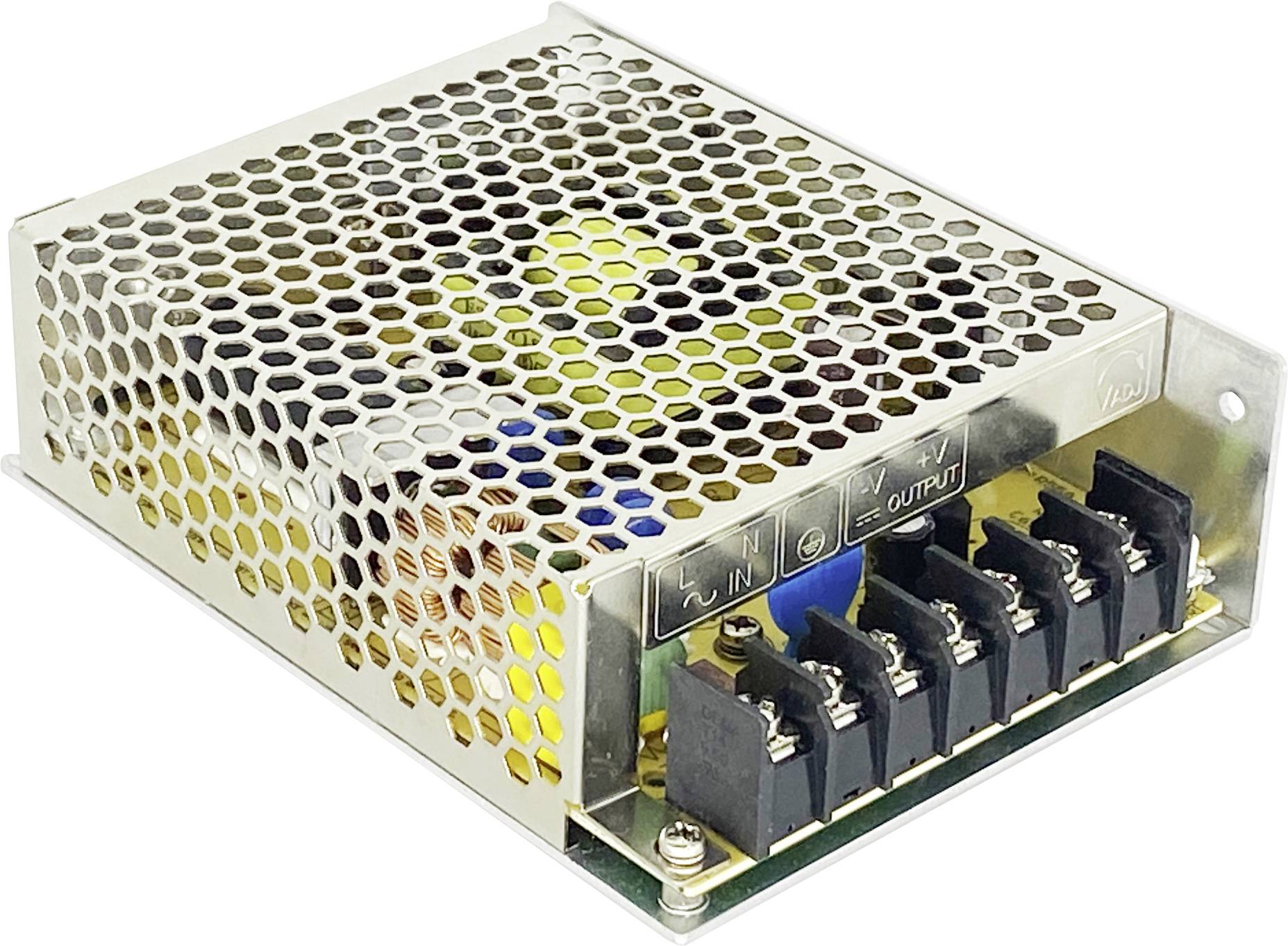

Dehner Elektronik SPS N100-24 (24VDC) AC/DC industrial PSU module 24 V DC 4.2 A 105 W
EAN:
Part number:
Item no:
Highlights & Details
Industrial power supply SPS N100-24 SunPower - Dehner Elektronik GmbH
- Output 24 V DC / 4.2 A
- Power 105 W
- Screw terminal
Technical specifications
- Type
Switched PSU
- Product type
AC/DC industrial PSU module
- Input voltage (max.)
264 V AC
375 V DC
- Max. output current
4.2 A
- Output current (max.) - rounded
4.2 A
- Min. input voltage
88 V AC
125 V DC
- Dim
(L x W x H) 13 cm x 9.5 mm x 4.0 cm
- Output voltage (max.)
24 V DC
- Connection
Screw terminal
105 W
- No. of outputs
1 x
- Output voltage 1
24 V DC
- Output current 1
4.2 A
- Operating temperature (max.)
70 °C
- Max. operating temperature (derating)
70 °C
- Min. operating temperature (derating)
-20 °C
- Weight
360 g
- PSU features
Regulated
Surge protection
- Width
9.5 mm
- Height
4.0 cm
- Length
13 cm
- Type
SPS N100-24 (24VDC)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3455191 Dehner Elektronik SPS N100-24 (24VDC) AC/DC industrial PSU module 24 V DC 4.2 A 105 W
Warranty Terms
Warranty Terms 3455191 Dehner Elektronik SPS N100-24 (24VDC) AC/DC industrial PSU module 24 V DC 4.2 A 105 W
Description
High-performance, efficient power supply. Versatile application in industry, in information technology and for audio/video applications.
High-quality casing power supply with performance up to 80 watts. Can be used worldwide because of the wide-range input and up to a height of 5000 m above sea level With LED-power lamp, low interference emission. Suitable for ambient temperatures from -20 °C to 70 °C.
The output voltage is stabilised. The switched-mode power supply has a high degree of efficiency and therefore low heat generation.
This text is machine translated.
High-quality casing power supply with performance up to 80 watts. Can be used worldwide because of the wide-range input and up to a height of 5000 m above sea level With LED-power lamp, low interference emission. Suitable for ambient temperatures from -20 °C to 70 °C.
The output voltage is stabilised. The switched-mode power supply has a high degree of efficiency and therefore low heat generation.
