Name: Dehner Elektronik SPS N110-24 Industrial PSU 4.6 A 110 W
Brand: Dehner Elektronik
SKU: 3455165

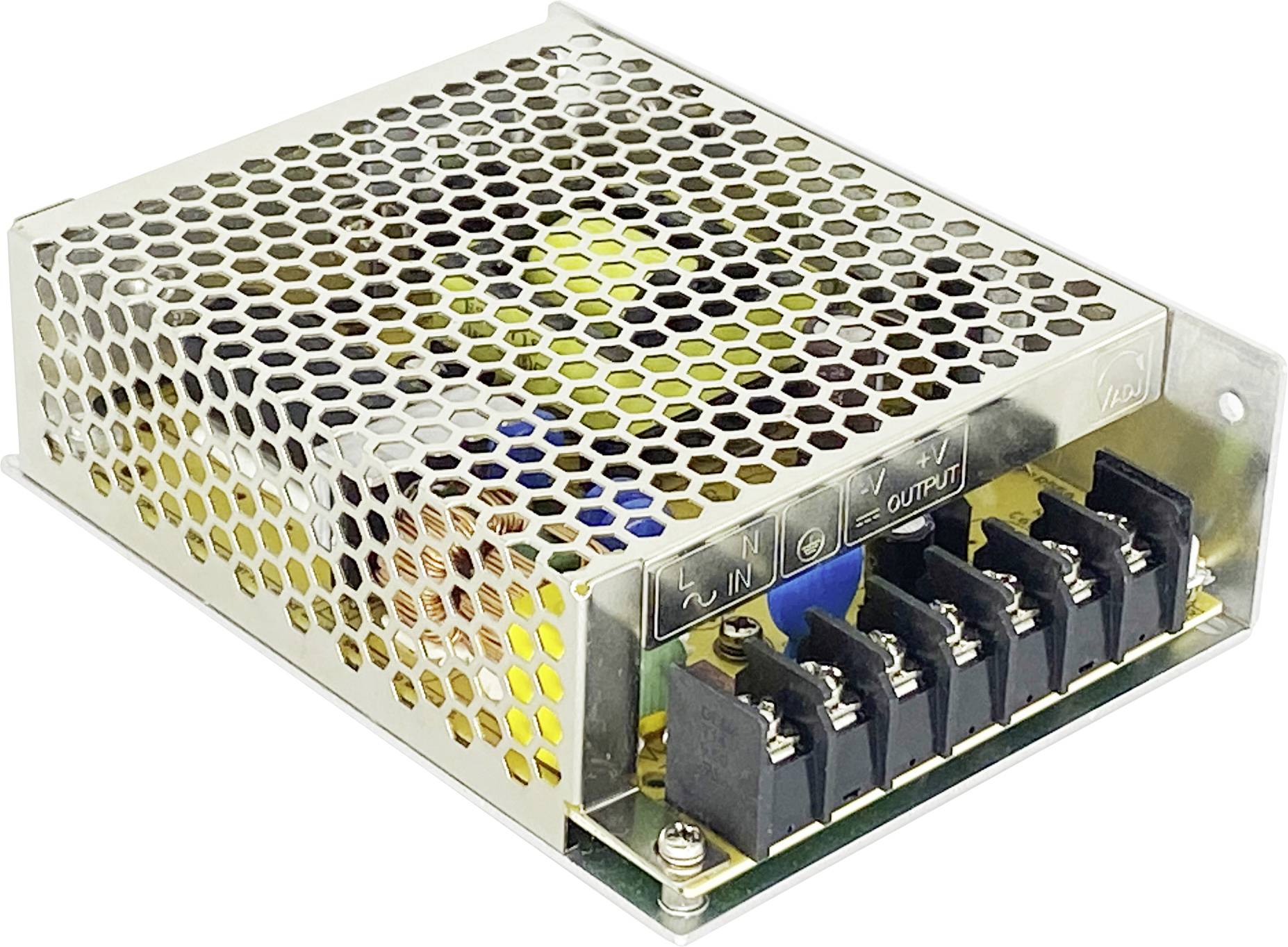

A metal enclosure power supply unit with multiple screw terminals labeled 'L', 'N', 'G', '-V', and '+V' for electrical connections.

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Industrial power supply SPS N110-24 SunPower - Dehner Elektronik GmbH

Output / 4.6 A
Power 110 W
Screw terminal

Technical specifications

Product type: Industrial PSU

Input voltage (max.): 264 V AC
375 V DC

Max. output current: 4.6 A

Output current (max.) - rounded: 4.6 A

Min. input voltage: 88 V AC
125 V DC

Dim: (L x W x H) 16 cm x 9.5 mm x 4 cm

Connection: Screw terminal

: 110 W

No. of outputs: 1 x

Weight: 440 g

PSU features: Regulated

Width: 9.5 mm

Height: 4 cm

Length: 16 cm

Type: SPS N110-24

EuP Status: Step 2

Output: Screw terminals

Input voltage: 240 V AC

Output voltage: 24 V DC

No. of inputs: 1 x

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3455165 Dehner Elektronik SPS N110-24 Industrial PSU 4.6 A 110 W

User & Safety Instructions

User & Safety Instructions 3455165 Dehner Elektronik SPS N110-24 Industrial PSU 4.6 A 110 W

Warranty Terms

Warranty Terms 3455165 Dehner Elektronik SPS N110-24 Industrial PSU 4.6 A 110 W

Description

High-performance, efficient power supply. Versatile application in industry, in information technology and for audio/video applications.

High-quality casing power supply with performance up to 110 watts. Can be used worldwide because of the wide-range input and up to a height of 5000 m above sea level With LED-power lamp, low interference emission. Suitable for ambient temperatures from -20 °C to 70 °C.

The output voltage is stabilised. The switched-mode power supply has a high degree of efficiency and therefore low heat generation.
