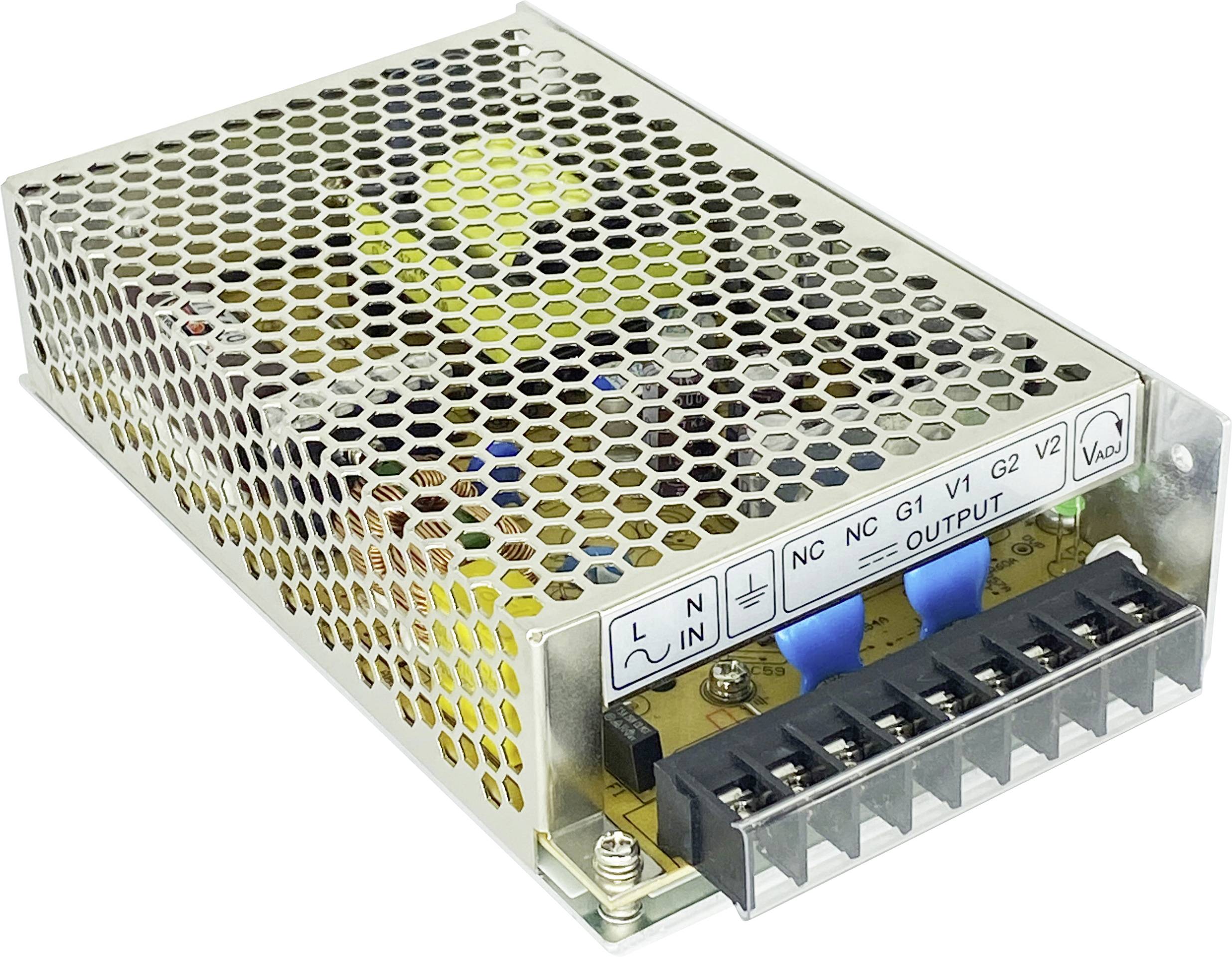

Dehner Elektronik SPS N120-D1 AC/DC industrial PSU module 12 V DC 12 A 120 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Industrial Power Supply SPS N120-D1 (Dual) Dehner Elektronik GmbH
- Output 12 V DC / 12 A
- Power 120 W
- Screw terminal
Technical specifications
- Product type
AC/DC industrial PSU module
- Input voltage (max.)
264 V AC
364 V DC
- Max. output current
12 A
- Output current (max.) - rounded
12 A
- Min. input voltage
88 V AC
125 V DC
- Dim
(L x W x H) 159 x 95 x 38 mm
- Output voltage (max.)
12 V DC
- Connection
Screw terminal
120 W
- Efficiency to
80 %
- Tolerance (output voltage)
5 %
- No. of outputs
2 x
- Output voltage 1
5 V DC
- Output voltage 2
12 V DC
- Output current 1
12 A
- Output current 2
5 A
- Type
closed
- Operating temperature (max.)
70 °C
- Max. operating temperature (derating)
50 °C
- Min. operating temperature (derating)
-20 °C
- Weight
536 g
- PSU features
Surge protection
Regulated
- Type
Switched PSU
- Width
95 mm
- Height
38 mm
- Length
159 mm
- Residual ripple
80 mV
- Type
SPS N120-D1
Documents & Downloads
Datasheet
Datasheet 3397142 Dehner Elektronik SPS N120-D1 AC/DC industrial PSU module 12 V DC 12 A 120 W
User & Safety Instructions
User & Safety Instructions 3397142 Dehner Elektronik SPS N120-D1 AC/DC industrial PSU module 12 V DC 12 A 120 W
Conformity certificate
Conformity certificate 3397142 Dehner Elektronik SPS N120-D1 AC/DC industrial PSU module 12 V DC 12 A 120 W
Description
High-performance, efficient power supply. Versatile application in industry, in information technology and for audio/video applications
High-quality casing power supply with performance up to 120 watts. Can be used worldwide because of the wide-range input and up to a height of 5000 m above sea level With LED-power lamp, low interference emission. Suitable for ambient temperatures from -20 °C to 70 °C.
The output voltage is stabilised. The switched-mode power supply has a high degree of efficiency and therefore low heat generation.
This text is machine translated.
High-quality casing power supply with performance up to 120 watts. Can be used worldwide because of the wide-range input and up to a height of 5000 m above sea level With LED-power lamp, low interference emission. Suitable for ambient temperatures from -20 °C to 70 °C.
The output voltage is stabilised. The switched-mode power supply has a high degree of efficiency and therefore low heat generation.
This text is machine translated.
Scope of delivery
- User manual
