Buy Dehner Elektronik SYS 1561-1105-W2E Mains PSU (fixed voltage) 5 V DC 2.1 A 10.5 W Regulated, incl. AUS adapter, incl. Ch

A black power supply with detachable plug adapters and a long cable.

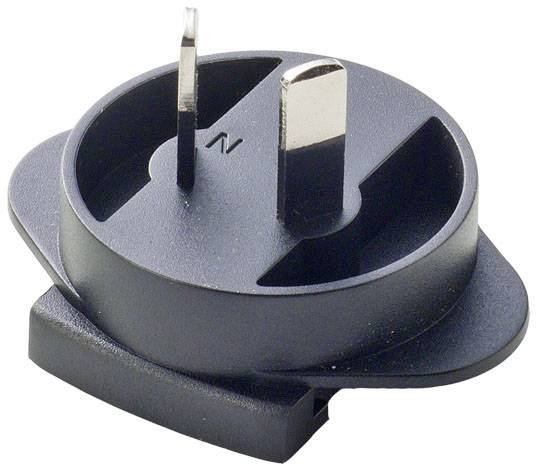

Australian plug adapter with two flat metal pins and a vertical earthing pin, black housing.

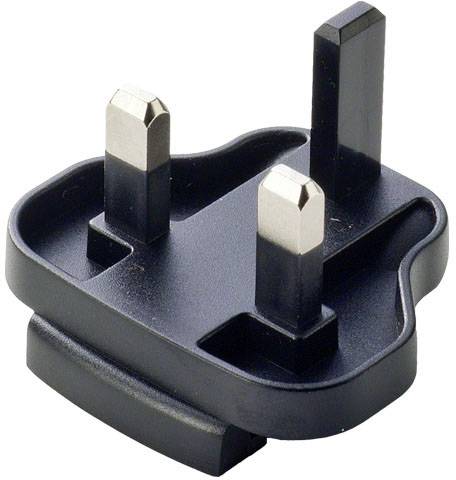

A black three-pin mains adaptor plug for the United Kingdom with rectangular metal pins.

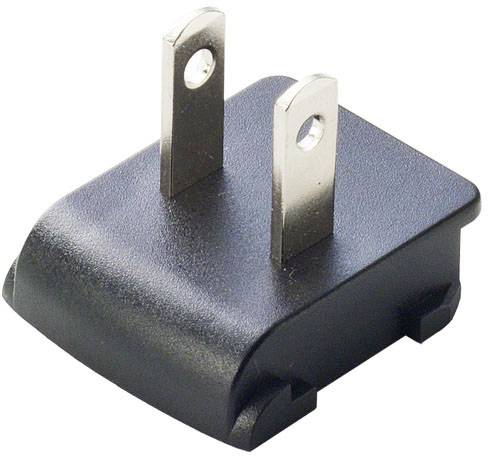

A black US plug adapter with two flat, parallel metal pins for use with a socket transformer.

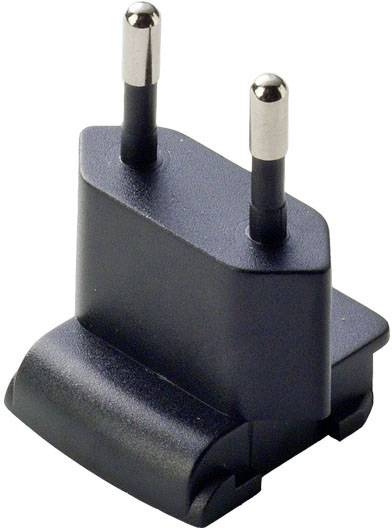

A black European plug adapter with two round metal pins, for use with European power sockets.

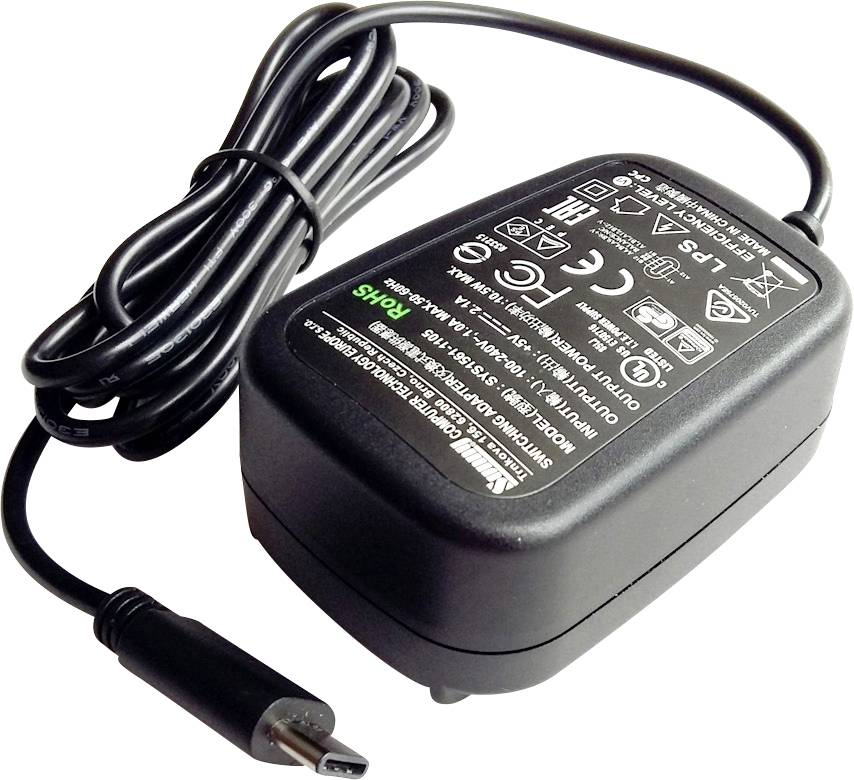

Black power adapter with cable and micro-USB plug. Technical specifications and safety certifications are printed on the power adapter.

1/6

Datasheet (PDF)

Fast track dispatch on Mon, 5 Oct

8 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 17.64 / piece)

€ 17.64

plus VAT.

Only 8 Piece(s) available

14-day return policy included

Report legal concerns

Technical specifications

Product type: Mains PSU (fixed voltage)

Used at: Indoors

Type: Switched PSU

Max. output current: 2.1 A

Output voltage: 5 V DC

Output current (max.) - rounded: 2.1 A

Output: USB-C® plug

PSU features: Regulated
incl. AUS adapter
incl. China adapter
incl. Europe adapter
incl. UK adapter
incl. US adapter

Input voltage: 240 V AC

: 10.5 W

Dim: (L x W x H) 65 x 45 x 30 mm

Connection: USB

No. of outputs: 1 x

No. of inputs: 1 x

Input voltage (max.): 264 V AC

Min. input voltage: 90 V AC

EuP Status: Step 2

Weight: 100 g

Width: 45 mm

Height: 30 mm

Length: 65 mm

Type: SYS 1561-1105-W2E

Documents & Downloads

Datasheet

Datasheet 2368169 Dehner Elektronik SYS 1561-1105-W2E Mains PSU (fixed voltage) 5 V DC 2.1 A 10.5 W Regulated, incl. AUS adapter, incl. Ch

User & Safety Instructions

User & Safety Instructions 2368169 Dehner Elektronik SYS 1561-1105-W2E Mains PSU (fixed voltage) 5 V DC 2.1 A 10.5 W Regulated, incl. AUS adapter, incl. Ch

Conformity certificate

Conformity certificate 2368169 Dehner Elektronik SYS 1561-1105-W2E Mains PSU (fixed voltage) 5 V DC 2.1 A 10.5 W Regulated, incl. AUS adapter, incl. Ch

Warranty Terms

Warranty Terms 2368169 Dehner Elektronik SYS 1561-1105-W2E Mains PSU (fixed voltage) 5 V DC 2.1 A 10.5 W Regulated, incl. AUS adapter, incl. Ch

Description

Powerful, compact power supply. ideal for different applications. The power supply is suitable for continuous operation and offers maximum safety through the various protective measures. The power supply complies with the latest international energy saving guidelines.

Due to the wide-range input from 100V/AC to 240V/AC, it is suitable for worldwide use. The output voltage is stabilised. The switched-mode power supply has a high degree of efficiency and thus a low heat generation.

This text is machine translated.
