Dehner Elektronik YSD 15S-2400630 AC/DC PSU module (+ enclosure) 24 V DC 0.63 A 15 W No. of outputs:1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 15.12
3
5% = € 0.75
€ 14.37
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 15.12 / piece)
€ 15.12
plus VAT.
Only 1 Piece(s) available
Highlights & Details

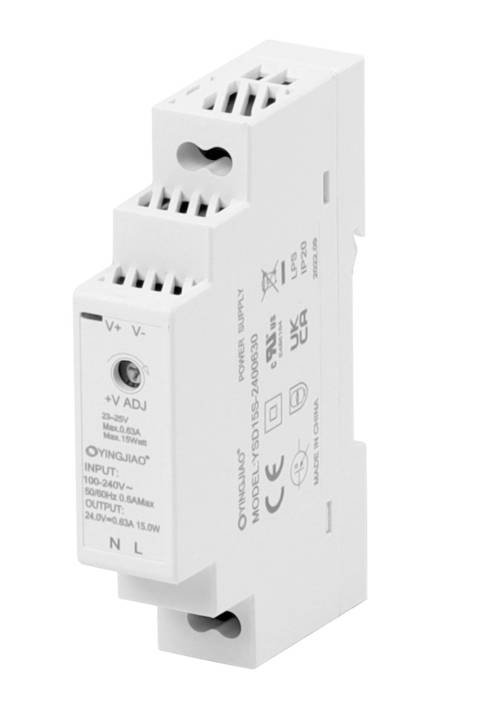

YSD 15S-2400630 DIN rail power supply
- Class 2 power supply
- DIN-Rail TS-35/7.5 & 15
- Ultra Slim
- Output voltage can be set
- Overcharge protection
- Overvoltage protection
- Temperature protection
Technical specifications
- Nominal input voltage
100 - 240 V/AC
120 - 370 V/DC
- Type
Switched PSU
- Product type
AC/DC PSU module (+ enclosure)
- Min. input voltage
85 V AC
120 V DC
- Input voltage (max.)
264 V AC
370 V DC
- Max. output current
0.63 A
- Output current (max.) - rounded
630 mA
15 W
- Output type (power supply units)
Fixed voltage
- Output voltage (nominal)
24 V DC
- No. of outputs
1 x
- Connection
Screw terminal
- Dim
(L x W x H) 90 x 18 x 58 mm
- Weight
78 g
- Output voltage (max.)
24 V DC
- Output voltage (min.)
24 V DC
- Operating temperature (max.)
50 °C
- Max. operating temperature (derating)
70 °C
- Operating temperature (min.)
-30 °C
- Manufacturer part #
YSD 15S-2400630
- Content
1 pc(s)
- PSU features
Regulated
- Width
18 mm
- Height
58 mm
- Length
90 mm
- Max. temperature
85 °C
- Min. temperature
-40 °C
- Type
YSD 15S-2400630
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2890332 Dehner Elektronik YSD 15S-2400630 AC/DC PSU module (+ enclosure) 24 V DC 0.63 A 15 W No. of outputs:1 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2890332 Dehner Elektronik YSD 15S-2400630 AC/DC PSU module (+ enclosure) 24 V DC 0.63 A 15 W No. of outputs:1 x Content 1 pc(s)
Conformity certificate
Conformity certificate 2890332 Dehner Elektronik YSD 15S-2400630 AC/DC PSU module (+ enclosure) 24 V DC 0.63 A 15 W No. of outputs:1 x Content 1 pc(s)
Description
The power supply is a single-phase primary switched-mode power supply for mounting on DIN rails or busbars (DIN rail) of the type TS-35/7.5 or TS-35/15. The power supply is used in closed distribution casings like switch cabinets or control systems
High energy efficiency and wide range input. The power supply can be operated with alternating current or direct current
This text is machine translated.
High energy efficiency and wide range input. The power supply can be operated with alternating current or direct current
This text is machine translated.
