Buy Deko Light 348099 Draconis LED ceiling light SMD LED Built-in LED EEC: E (A - G) 72 W White aluminium (RAL 9006)

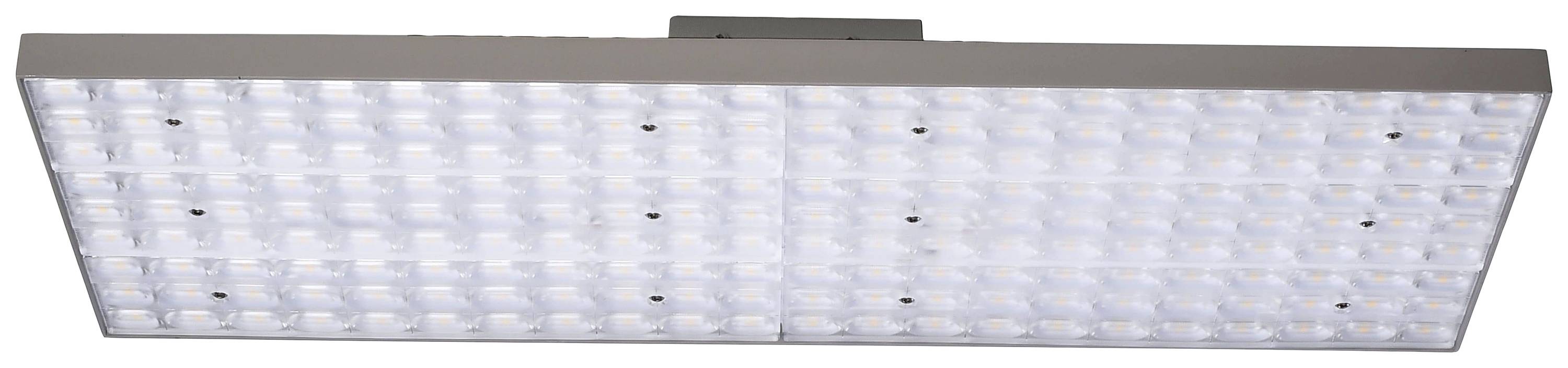

A rectangular LED light panel with multiple small light sources, suitable for large-area interior lighting.

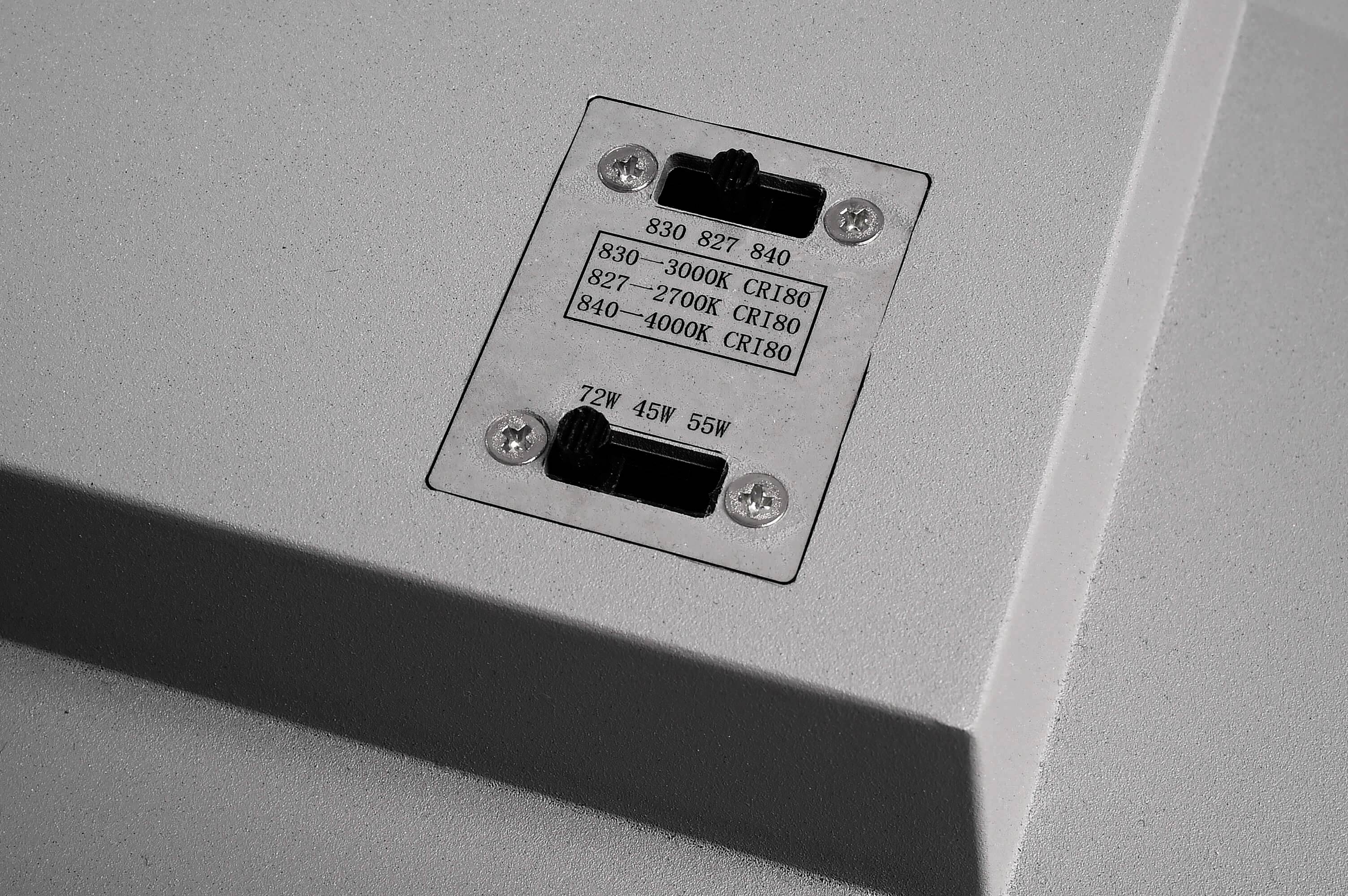

Switch plate on a device with selection options for different colour temperatures (3000K, 2700K, 4000K) and power ratings (72W, 45W, 55W).

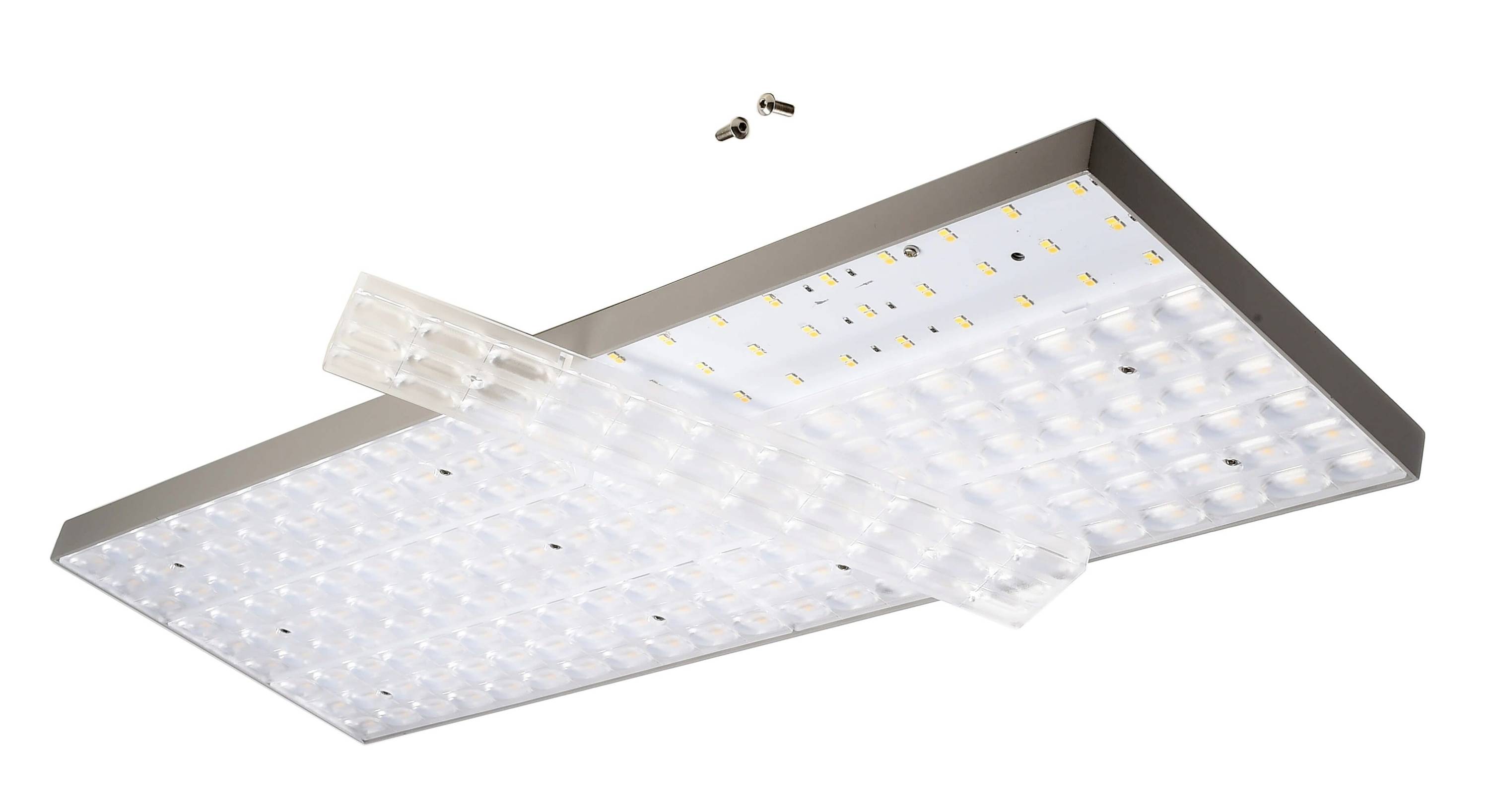

Rectangular LED ceiling light with a removable plastic cover. Two fixing screws are visible.

Workspace with a table; tools and materials such as a drill and spanner are laid out on it. An old wooden frame hangs on the wall.

A workbench with tools and materials, including a drill, adhesive tape, spray cans and a lamp above a wooden frame on the wall.

Workbench with tools and accessories such as a drill, grinding device and spray cans under a lamp, in front of a grey wall.

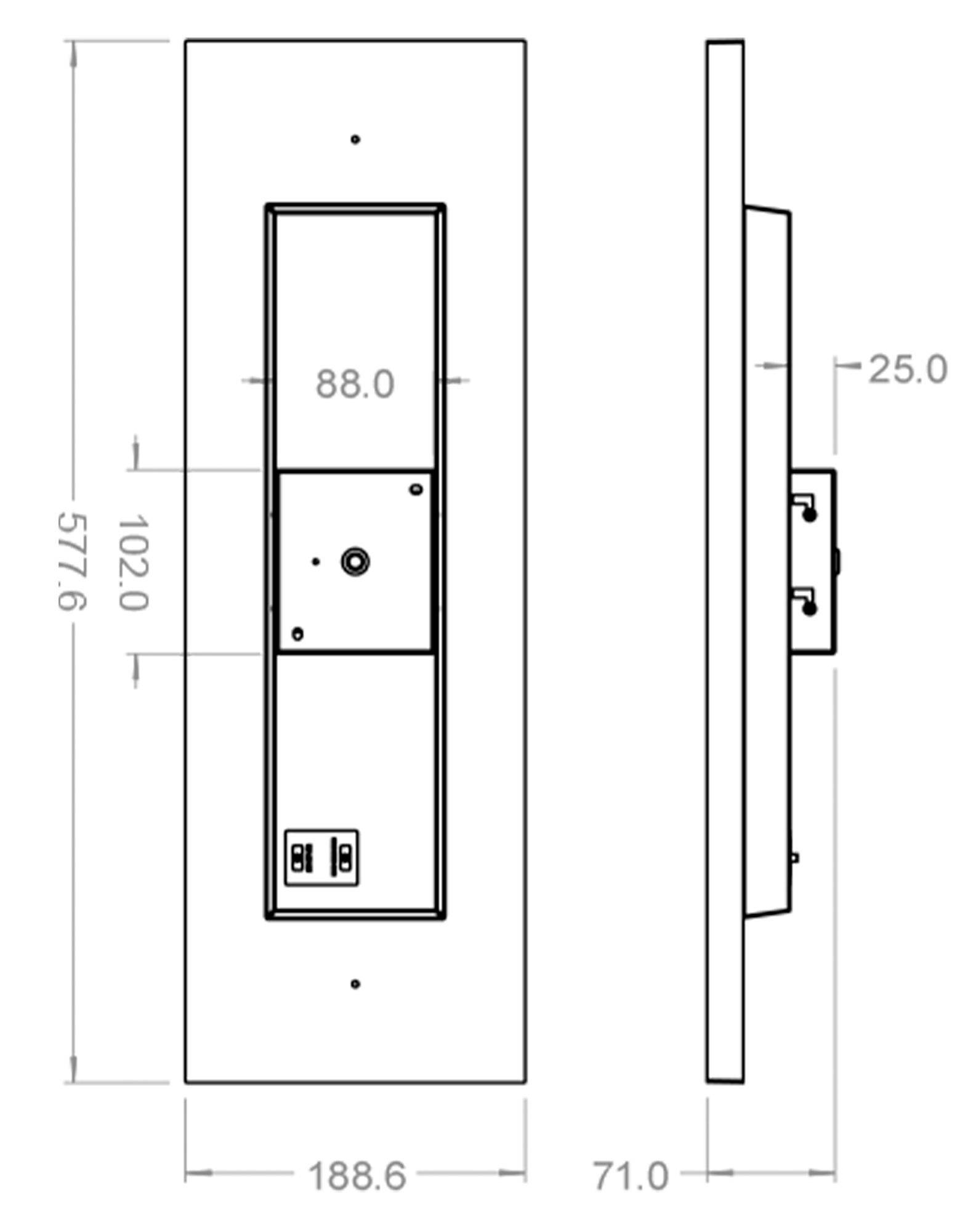

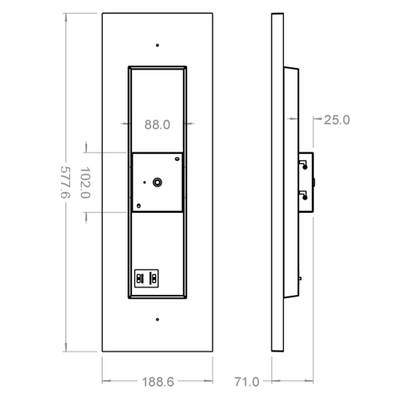

Technical drawing of a rectangular device with dimensions: height 577.6 mm, width 188.6 mm, depth 71 mm. Connection port located at the bottom.

1/7

Product data sheet

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Draconis ceiling lamp, 2700/3500/4000K, 45/55/72W

Power= 72 W
Total luminous flux= 8215 lm
Colour temperature= 4000 K
Warm white, Neutral white

Technical specifications

POWER 45 W/55 W/72 W.Input voltage 220-240 V AC/50 HzLight: LED module fixedBeam angle: 60°LED type SMDNumber of LEDs: 198Base size (L x B x H) 102 x 88 x 25 mmOperating temperature -20 °C - +30 °CLife: 50000 hEnd-of-life luminous flux: 0.70Switching cycles 25,000

Dim: (L x W x H) 577.6 x 188.6 x 71 mm

Type: Rectangular

Operating voltage: 230 V

No. of bulbs: 198

Product type: LED ceiling light

Width: 188.6 mm

Bulb type: SMD LED

Height: 71 mm

: Built-in LED

Length: 577.6 mm

Rating per bulb: 0.36 W

: 72 W

Energy consumption: 72 kWh/1000h

Protection class: I

: IP20

Factory colour: White aluminium (RAL 9006)

Material: Aluminium (die-cast)

Weight: 2634 g

: E (A - G)

Colour: Warm white
Neutral white

: 4000 K

Colour temperature range: 4000 K

Total luminous flux: 8215 lm

: 41.48 lm

Documents & Downloads

Datasheet

Datasheet 2758325 Deko Light 348099 Draconis LED ceiling light SMD LED Built-in LED EEC: E (A - G) 72 W White aluminium (RAL 9006)

User & Safety Instructions

User & Safety Instructions 2758325 Deko Light 348099 Draconis LED ceiling light SMD LED Built-in LED EEC: E (A - G) 72 W White aluminium (RAL 9006)

Description

The modular DRACONIS series enables the flexible ceiling lighting for different application areas. Combine this lamp head with our mounting adapters for optional use as a fixed surface-mounted ceiling lamp, in a 3-phase track system or as a pendant lamp and you can adjust the power and light color flexibly. In addition, we offer several lenses for asymmetric and symmetrical illumination at multiple beam angles, so that THE DRACONIS can be used in almost any scenario.
