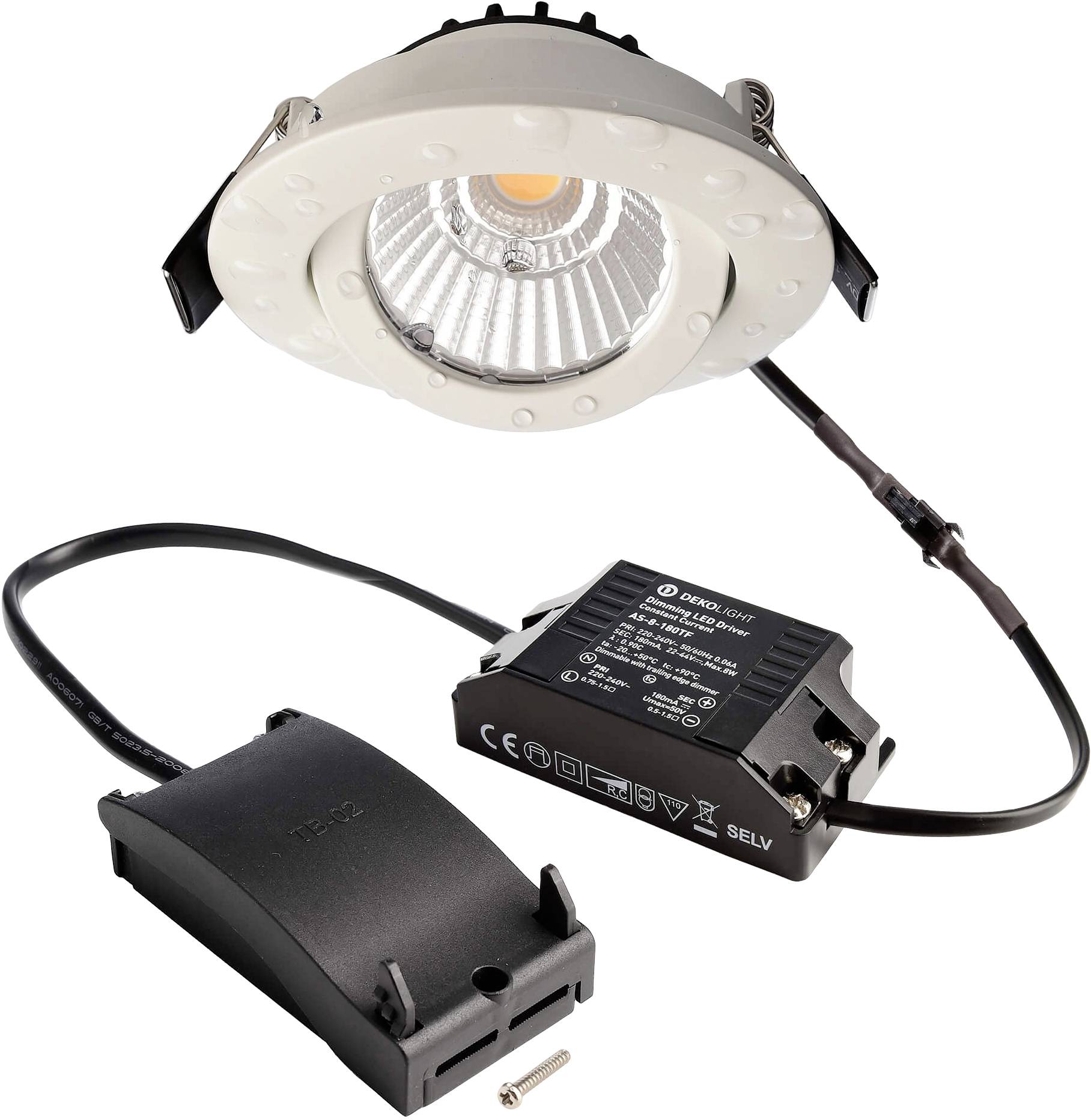

Recessed light fitting with LED lamp and external transformer, suitable for ceiling mounting, featuring white details and black cable.

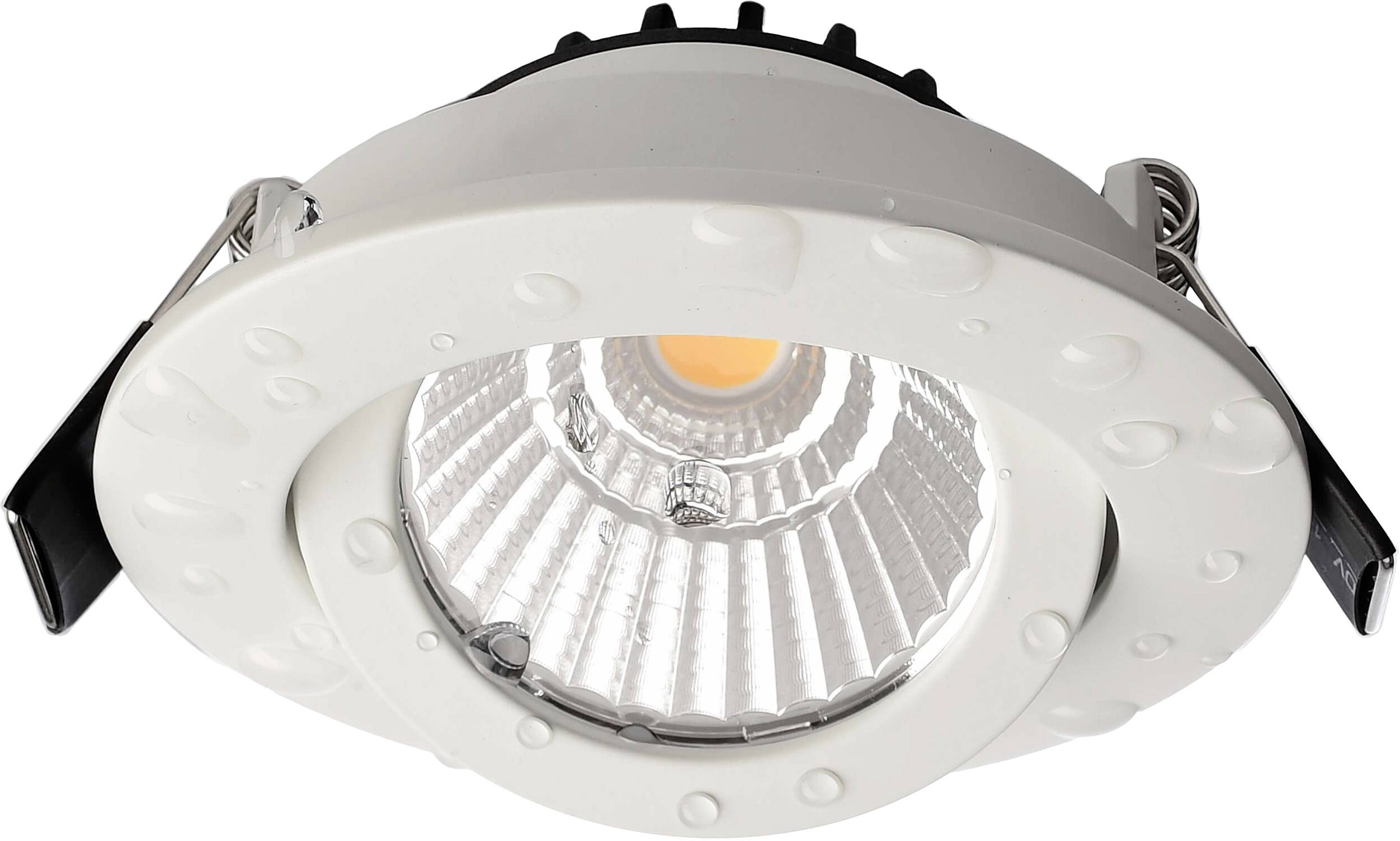

Round, white LED ceiling recessed light with a fluted inner structure and a central light source, suitable for interior lighting.

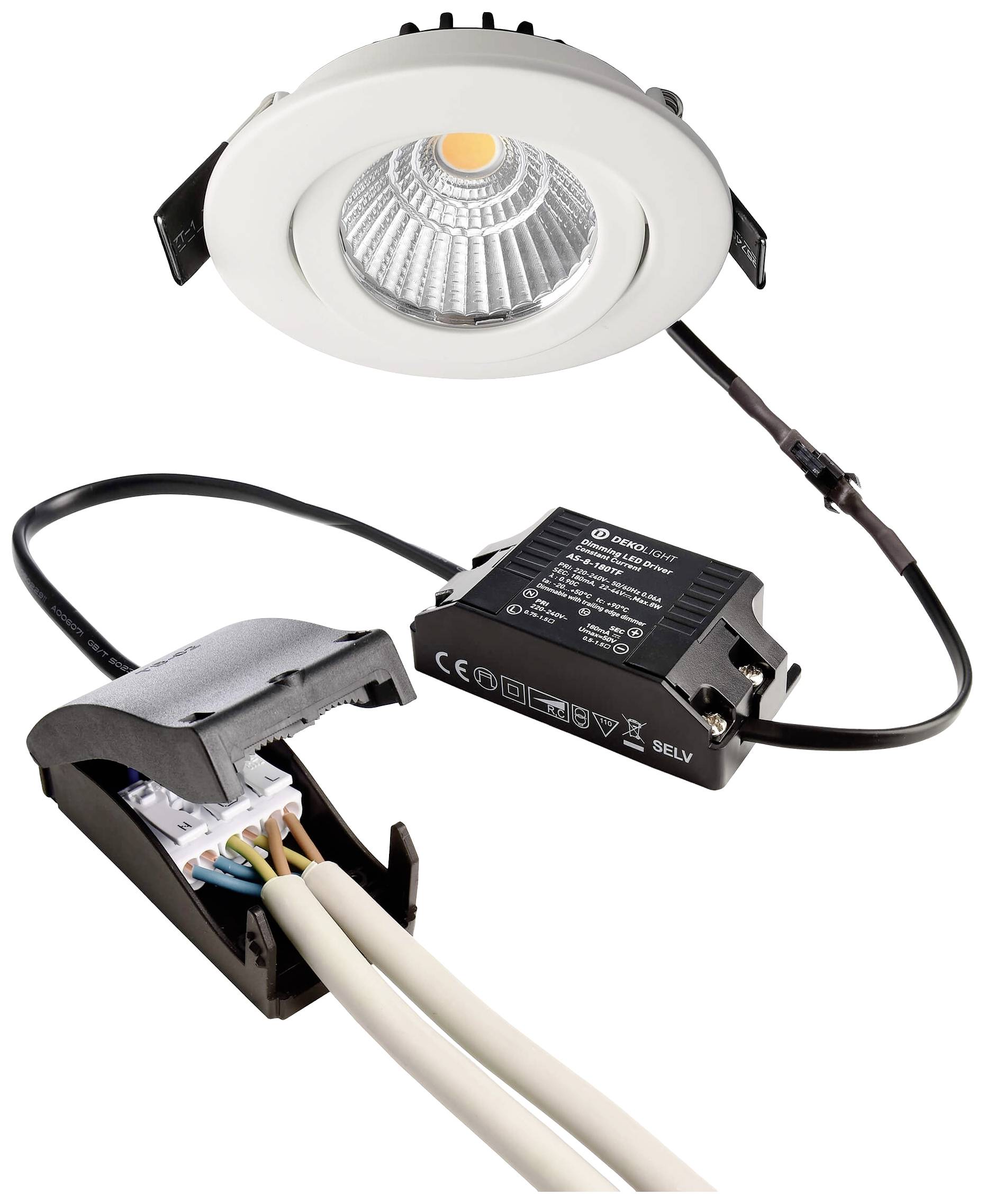

A round, white recessed spotlight with an LED light source, connected to a black transformer and cable connections.

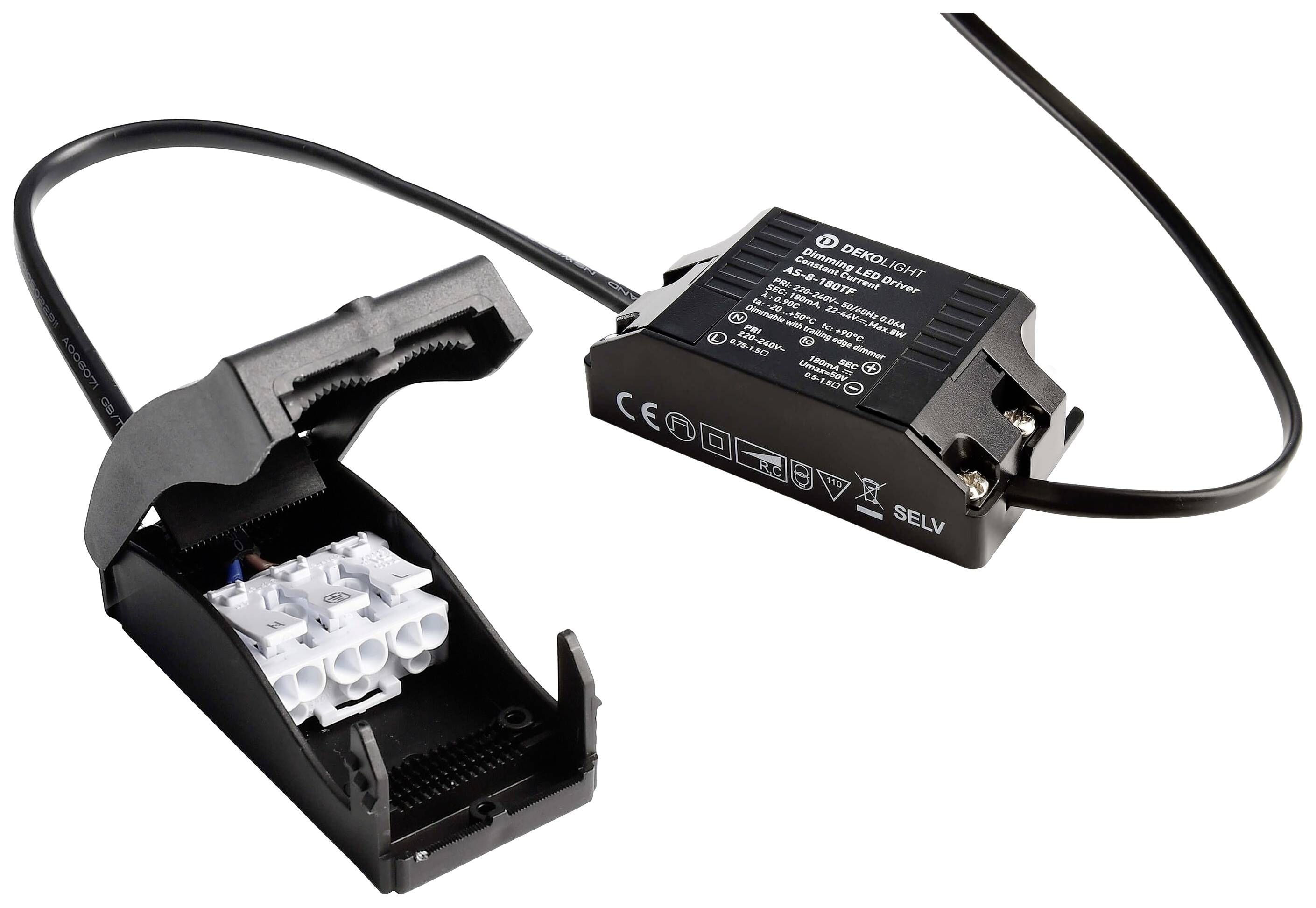

A LED driver with a black housing is connected via a cable to an open junction box.

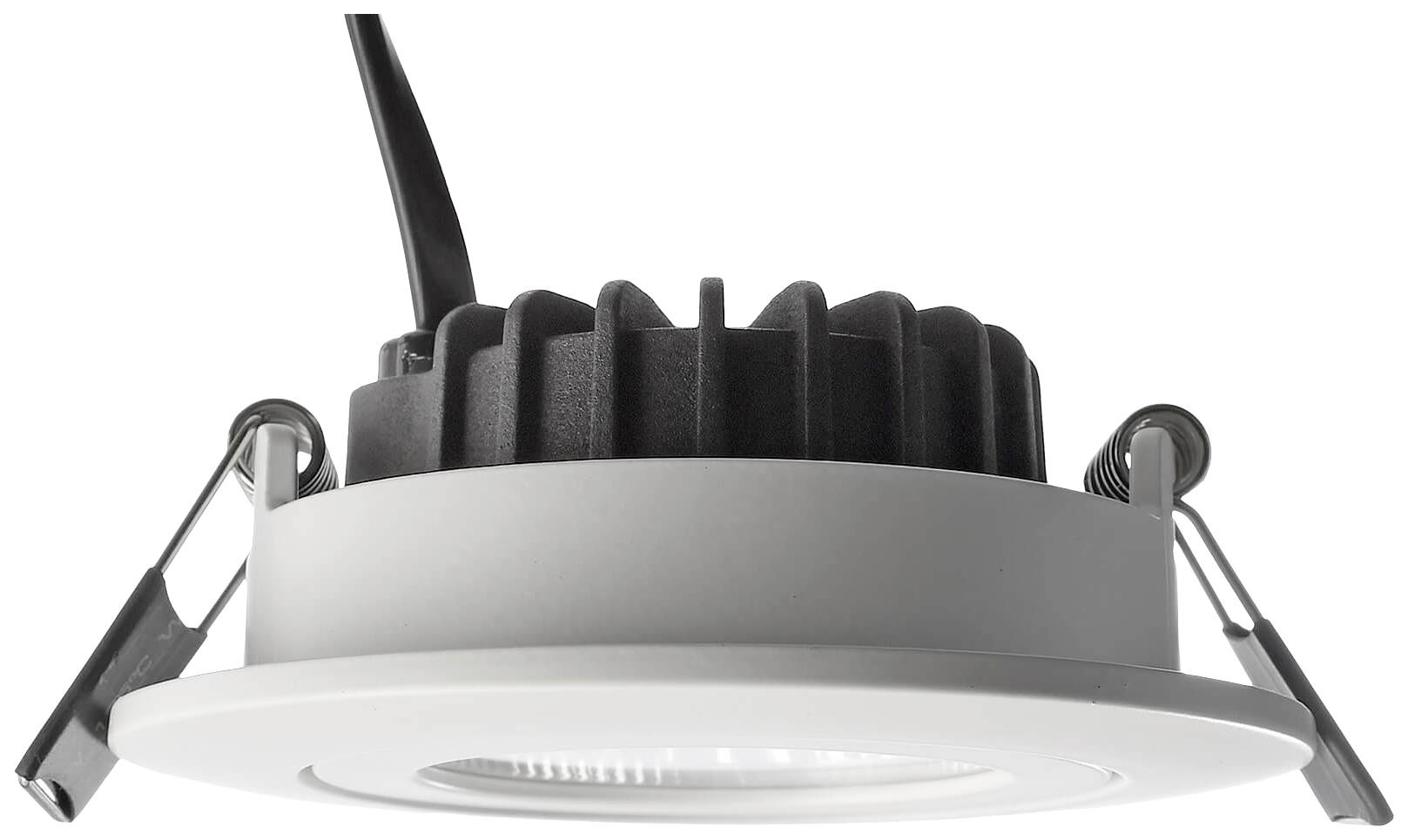

A round, white recessed spotlight with a black heatsink and two side brackets for mounting. Suitable for ceiling lighting.

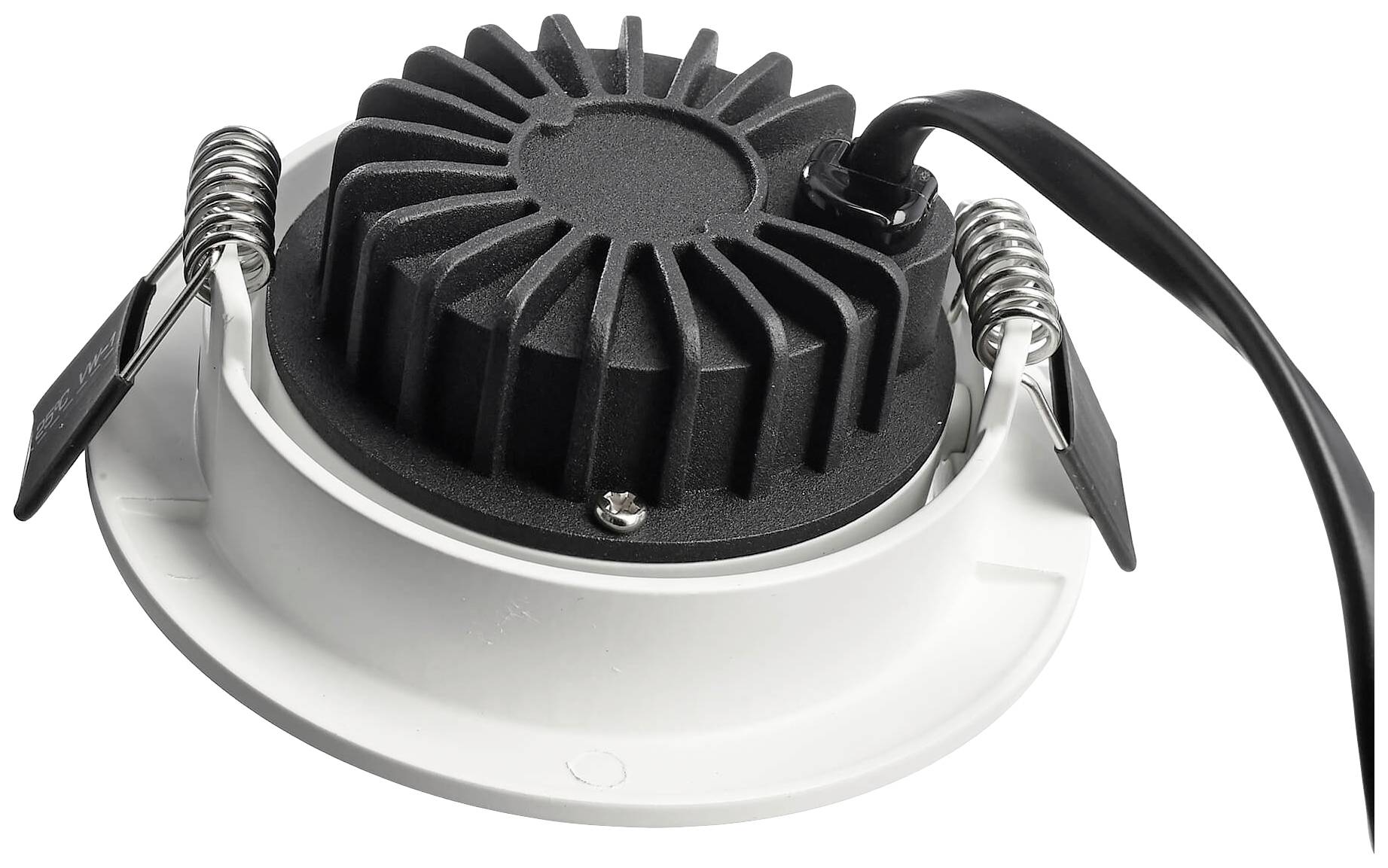

Back of a recessed spotlight with a black heatsink and cable. The spotlight has two springs for mounting in the ceiling.

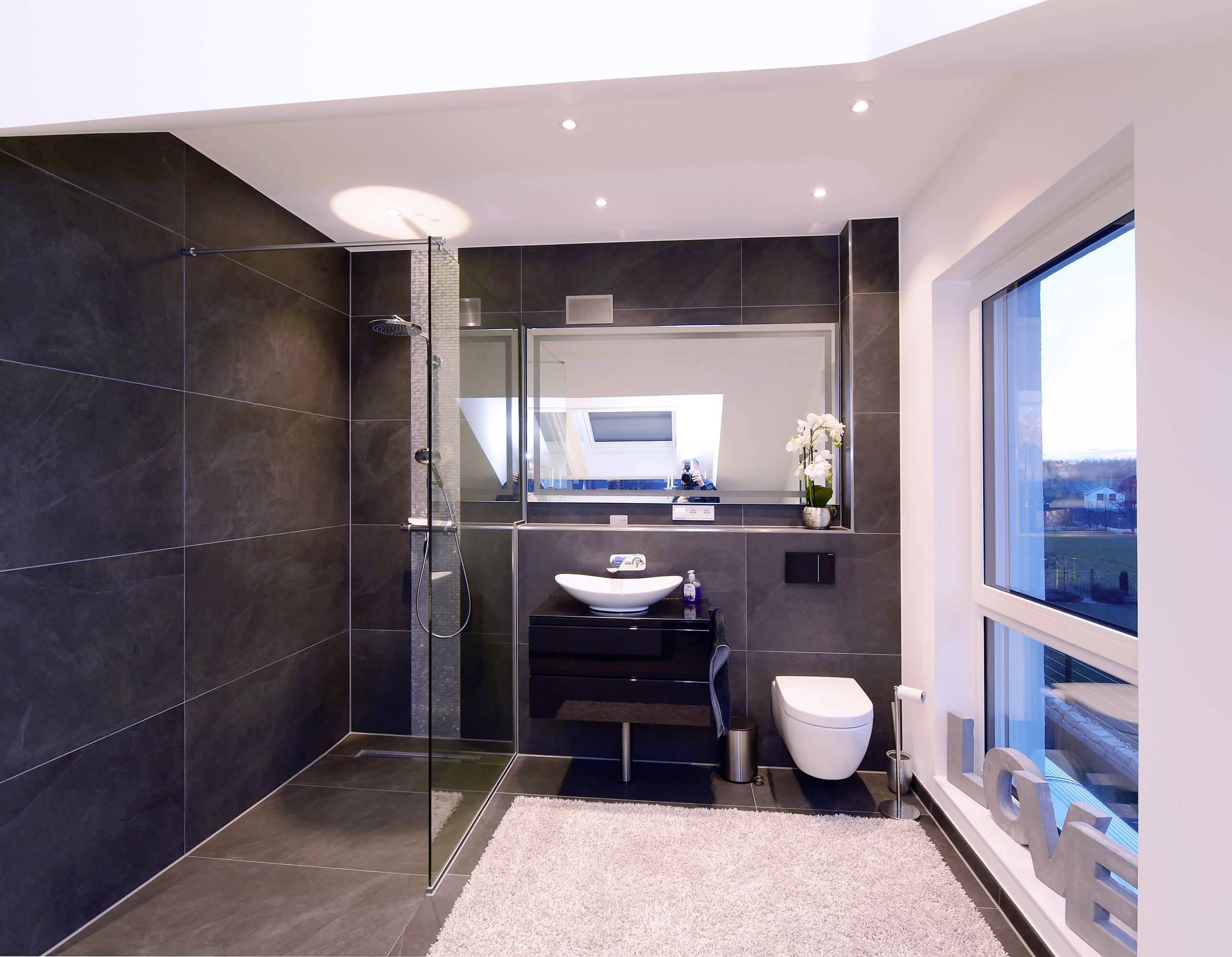

A modern bathroom with dark tiles, a glass shower enclosure, washbasin, toilet and large window. Flowers and 'LOVE' decor.

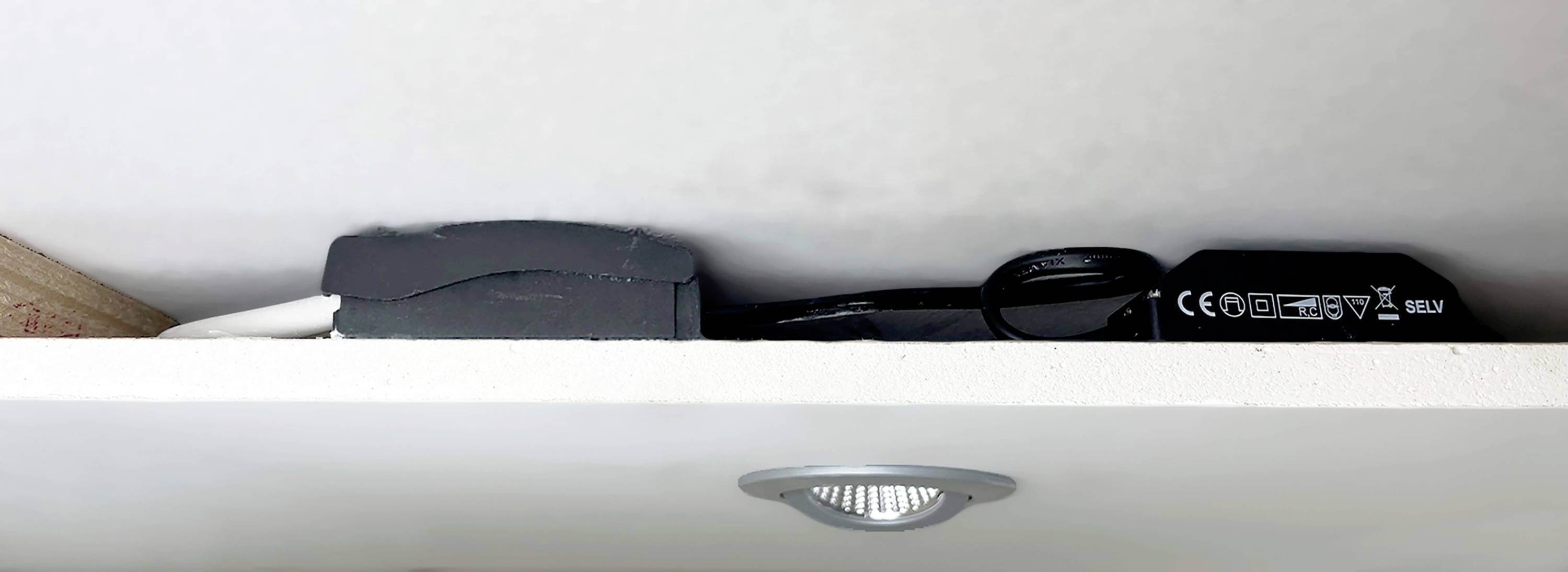

Device with cables on a shelf, partially hidden. A ceiling light is located beneath the shelf.

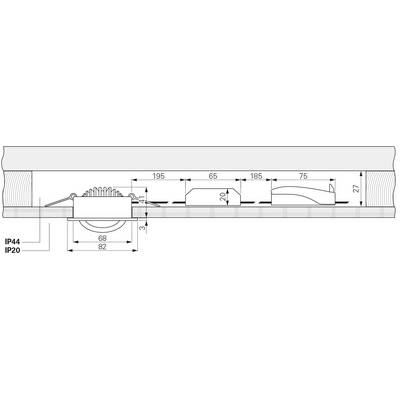

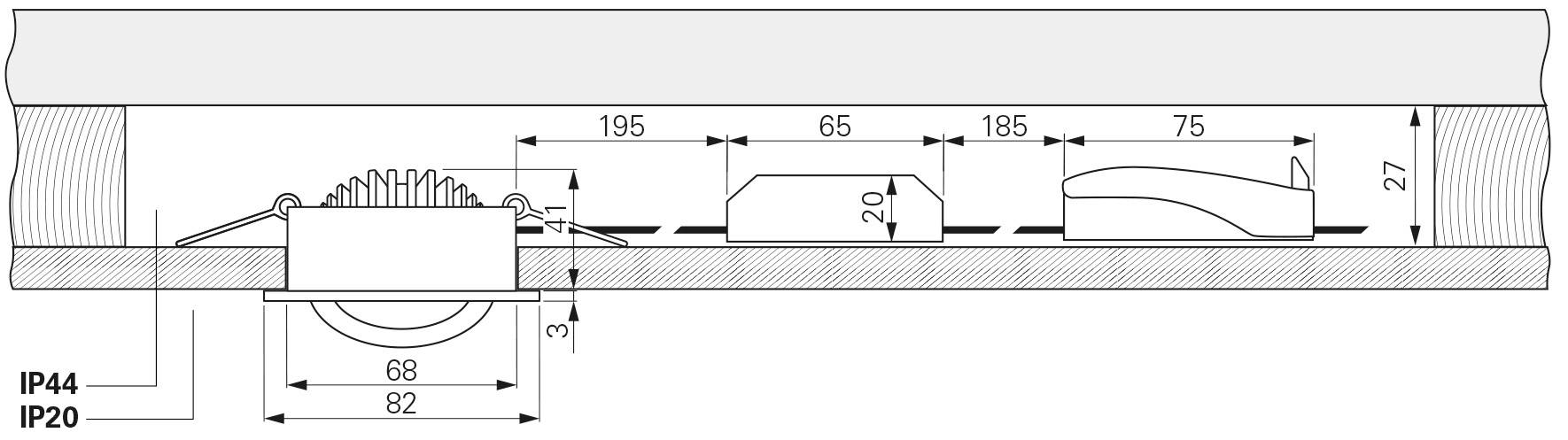

Diagram shows recessed luminaire with IP44/20 rating, installed in ceiling. Dimensions 195 mm, 65 mm, 75 mm along the length. Luminaire measures 68 x 82 mm.

1/9

Product data sheet

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Ceiling Lights, Dione IP DTW, 8.5 W, DIM, 1800/3000 K, White, 220-240 V/AC, 50 / 60 Hz

Power= 8.5 W Total luminous flux= 480 lm Warm white

Technical specifications

Input voltage 220-240V AC/50-60Hz
Activation: Phase-section dimmer
Colour rendering Ra: 80
Switching cycles 25000
LED type COB
Terminal connection option
Including. LED power supply
Inclination 30°
Power supply dimensions: 66x35x20 mm
Dimensions of connection box: 75x39x23 mm
Ceiling thickness: Max. 13 mm
Cable length 200 mm

Product type: LED recessed light

No. of bulbs: 1

: Built-in LED

Bulb type: LED (monochrome)

: 8.5 W

Total luminous flux: 480 lm

Colour: Warm white

Energy consumption: 7 kWh/1000h

Type: Circular

Radiation angle: 36°

Light features: Swivelling

Swivel range (max.): 30°

Recess diameter: 68 mm

Recess depth: 41 mm

Outside Ø: 82 mm

: IP20

Protection class: II

Factory colour: White

Material: Aluminium

: F (A - G)

Dim: (Ø x H) 82 mm x 41 mm

Light bulb included: Yes

Height: 41 mm

(Ø): 82 mm

Documents & Downloads

Datasheet

Datasheet 2998320 Deko Light 565403 Dione IP DTW LED recessed light EEC: F (A - G) LED (monochrome) Built-in LED 8.5 W White

User & Safety Instructions

User & Safety Instructions 2998320 Deko Light 565403 Dione IP DTW LED recessed light EEC: F (A - G) LED (monochrome) Built-in LED 8.5 W White

Description

The ceiling mounting spots of the DIONE series impress with their particularly low installation depth. This makes them very space-saving and requires only a ceiling cavity of 25 mm. Also the connection box included in the delivery and the dimmable power supply fit thanks to the compact design into the 68 mm cutout. Since all components for operating the Dione are pre-assembled, a time-saving tool-free installation is possible. The junction box with plug-in terminals enables additional 3-pin through wiring. This makes the DIONE spotlight the ideal solution for retrofitting within a renovation or for new installations with a limited installation space.
With the high-quality COB technology, the recessed spotlights can deliver up to 750 lm with an output of 8.5 W. The casing is made of aluminum, the angle of radiation is 36° and the spots are available in the light colors 3,000 K and 4,000 K. The lamp head can be rotated by up to 30°.
