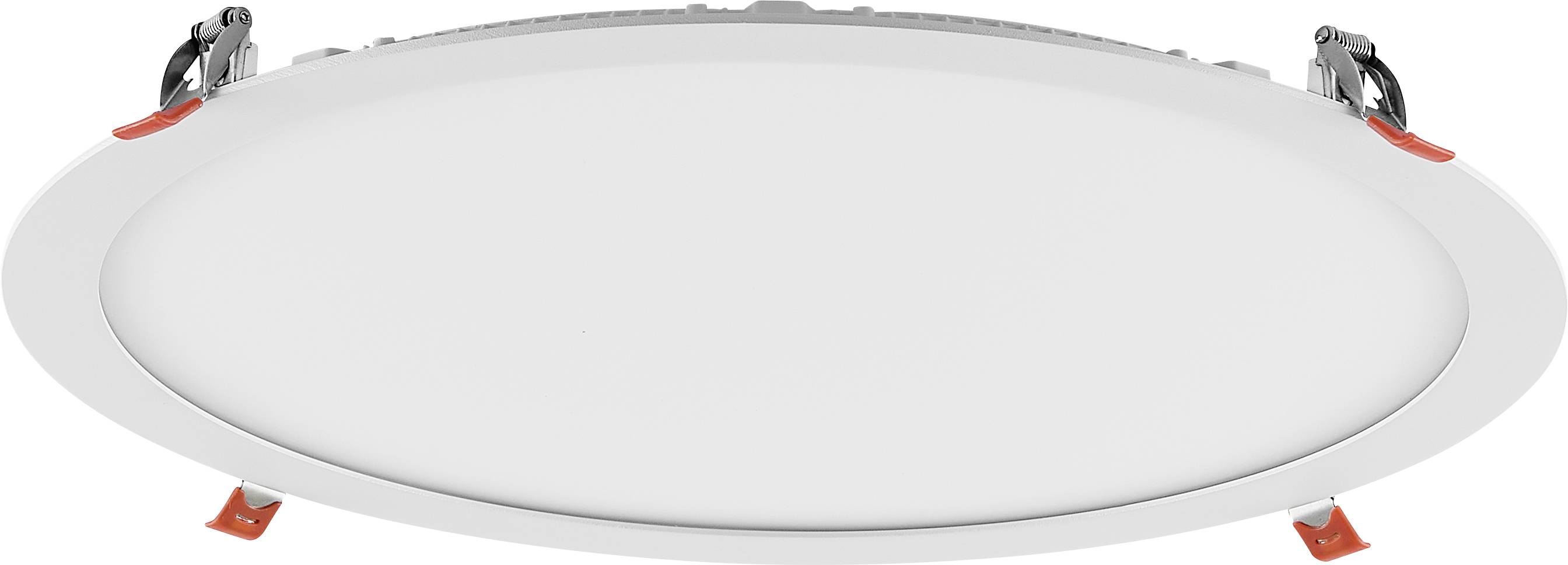

Deko Light 565425 Downlight - Anik CCT Round 380 Flush mount light LED (monochrome) 30 W Traffic white (RAL 9016)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Deco Light Downlight - ANIK Round 380, 30 W, DIM, 2700-6500 K, white
- Power= 30 W Total luminous flux= 3220 lm Colour temperature= 6500 K Warm white, Cool white
Technical specifications
- Output: 2700K = 1750 lm / 15.0 W, 4000K = 3220 lm / 30.0 W, 6500K = 1750 lm / 15.0 W
- Operating mode: Voltage constant
- Colour consistency 3 SDCM
- Switching cycles 100000
- UGR 19
- Colour reproduction (Ra): 90
- Product type
Flush mount light
- Operating voltage
24 V DC
- Bulb type
LED (monochrome)
30 W
- Total luminous flux
3220 lm
6500 K
- Colour
Warm white
Cool white
- Energy consumption
30 kWh/1000h
- Type
Circular
- Radiation angle
120°
- Light features
Dimmable
- Recess diameter
390 mm
- Recess depth
17 mm
IP44
IP20
IK05
- Protection class
III
- Factory colour
Traffic white (RAL 9016)
- Material
PMMA
Steel
Aluminium
- Weight
1143 g
n.rel.
- Dim
(Ø x H) 398 mm x 20 mm
Yes
- Light bulb included
Yes
- Colour temperature (max.)
6500 K
- Colour temperature (min.)
2700 K
- Colour temperature range
2700 - 6500 K
- Height
20 mm
- (Ø)
398 mm
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 3766315 Deko Light 565425 Downlight - Anik CCT Round 380 Flush mount light LED (monochrome) 30 W Traffic white (RAL 9016)
User & Safety Instructions
User & Safety Instructions 3766315 Deko Light 565425 Downlight - Anik CCT Round 380 Flush mount light LED (monochrome) 30 W Traffic white (RAL 9016)
Warranty Terms
Warranty Terms 3766315 Deko Light 565425 Downlight - Anik CCT Round 380 Flush mount light LED (monochrome) 30 W Traffic white (RAL 9016)
Description

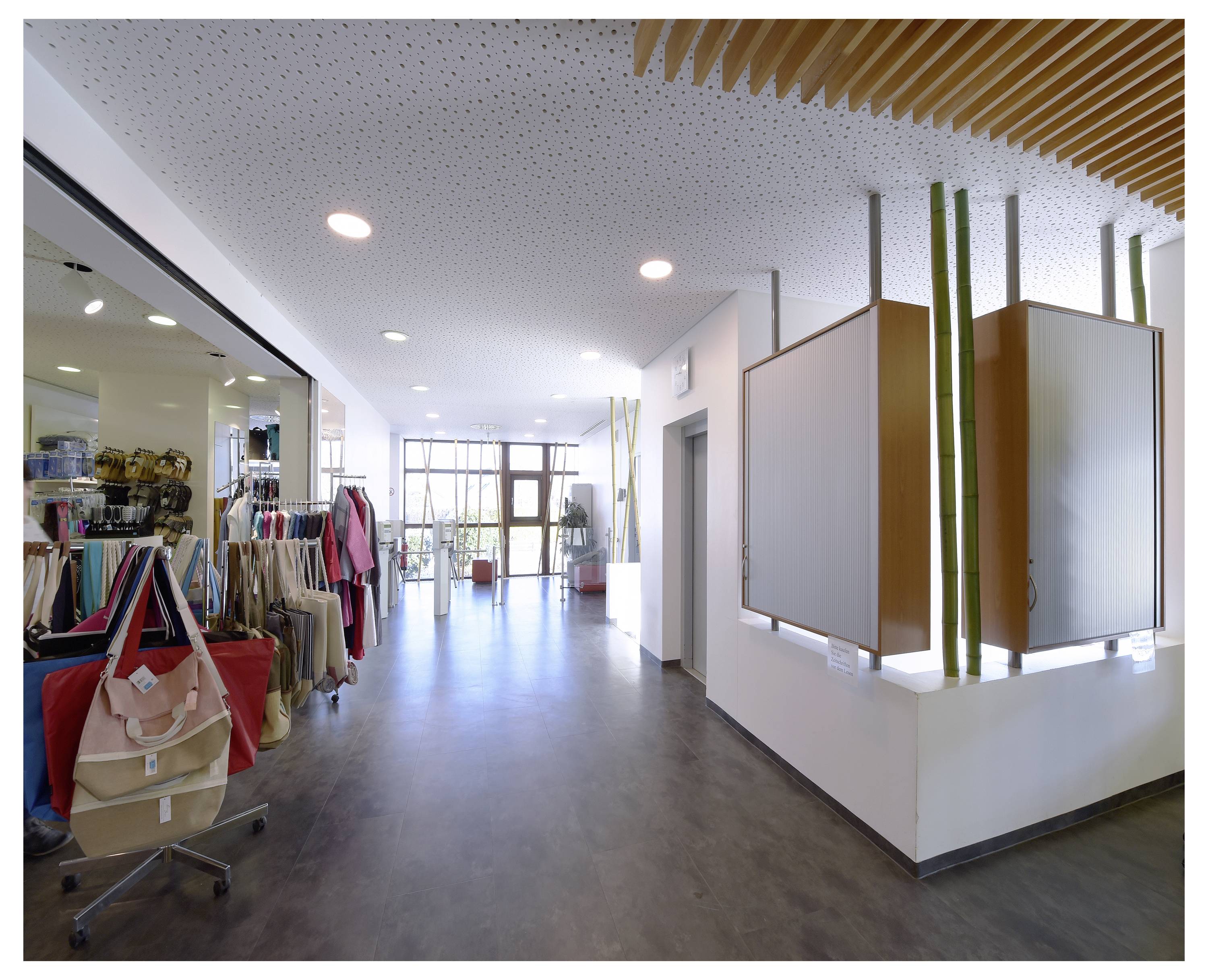

The LED Downlight ANIK ROUND CCT is a high quality lighting solution for a wide range of applications, for example, in reception areas, offices, conference rooms, shops, retail areas, Hotels, restaurants, bathrooms and toilets. It impresses through a uniform, wide-spread light distribution with an angle of radiation of 120° and a very high color reproduction (Ra ≥ 90). Thanks to the protection class IP44 on the bottom in the installed state, it is also suitable for moist surroundings. The lamp can be combined with external power supplies and thus can be dimmed. The ANIK ROUND CCT series covers a wide power spectrum from 9 W to 30 W. The color temperature can be individually adjusted from 2700-6500K via an optional controller. With its flat design (19–22 mm height) and various diameters (144–398 mm), it is suitable for both new buildings and renovation projects.
