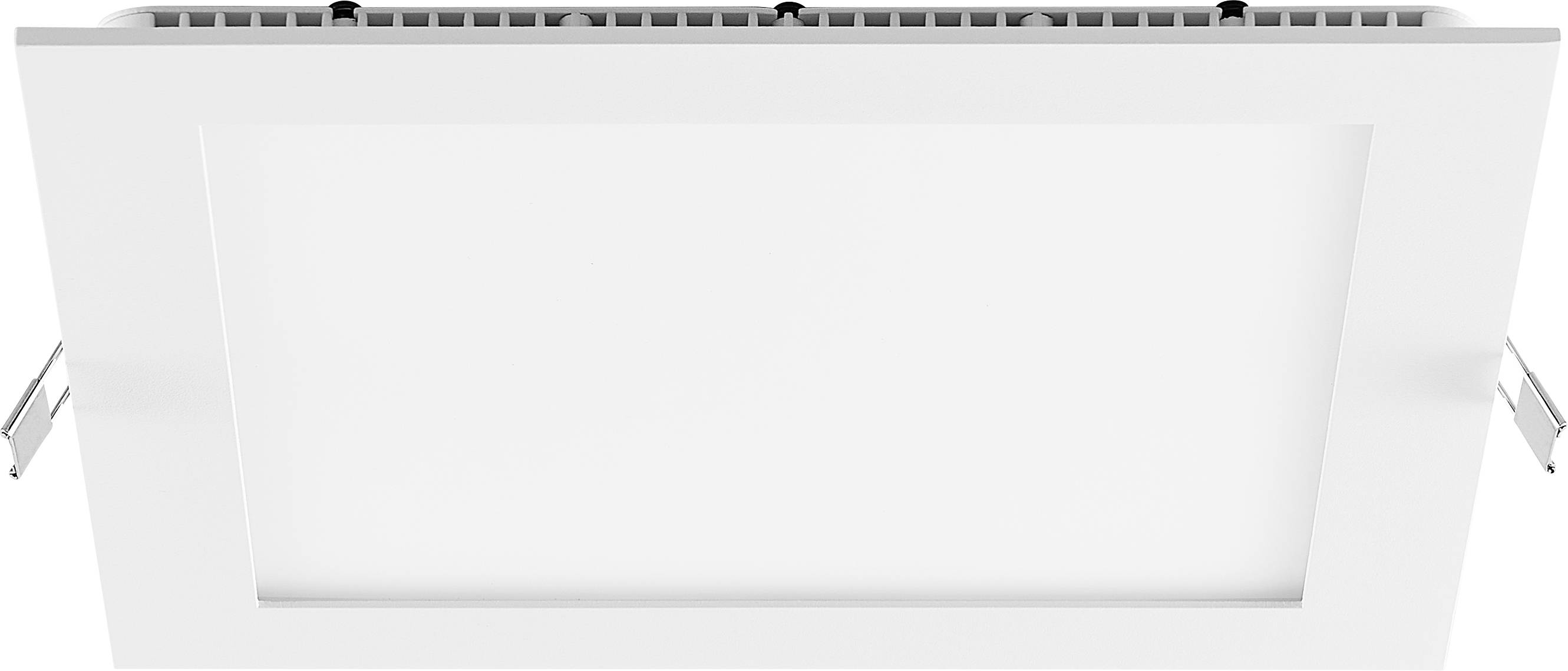

Deko Light 565444 Downlight - Anik CCT Square 215 Flush mount light LED (monochrome) 24 W Traffic white (RAL 9016)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Deco Light Down light - Anik CCT Square 215, 24 W, DIM, 2700-6500 K in white
- Power= 24 W Total luminous flux= 2620 lm Colour temperature= 6500 K Warm white, Cool white
Technical specifications
- Operating mode: Current constant
- Colour consistency 3 SDCM
- Switching cycles 100000
- UGR 19
- Product type
Flush mount light
- Operating voltage
24 V DC
- Bulb type
LED (monochrome)
24 W
- Total luminous flux
2620 lm
6500 K
- Colour
Warm white
Cool white
- Energy consumption
24 kWh/1000h
- Type
Rectangular
- Radiation angle
120°
- Light features
Dimmable
- Recess length
222 mm
- Recess width
222 mm
- Recess depth
18 mm
IP44
IP20
IK05
- Protection class
III
- Factory colour
Traffic white (RAL 9016)
- Material
PMMA
Steel
Aluminium
- Weight
583 g
n.rel.
- Dim
(L x W x H) 237 x 237 x 21 mm
- Light bulb included
Yes
- Colour temperature (max.)
6500 K
- Colour temperature (min.)
2700 K
- Colour temperature range
2700 - 6500 K
- Width
237 mm
- Height
21 mm
- Length
237 mm
Documents & Downloads
Datasheet
Datasheet 3766335 Deko Light 565444 Downlight - Anik CCT Square 215 Flush mount light LED (monochrome) 24 W Traffic white (RAL 9016)
User & Safety Instructions
User & Safety Instructions 3766335 Deko Light 565444 Downlight - Anik CCT Square 215 Flush mount light LED (monochrome) 24 W Traffic white (RAL 9016)
Warranty Terms
Warranty Terms 3766335 Deko Light 565444 Downlight - Anik CCT Square 215 Flush mount light LED (monochrome) 24 W Traffic white (RAL 9016)
Description
The LED Downlight ANIK SQUARE CCT is a high quality lighting solution for a wide range of applications, such as reception areas, offices, conference rooms, shops, retail areas, Hotels, restaurants, bathrooms and toilets. It impresses through a uniform, wide-spread light distribution with an angle of radiation of 120° and a very high color reproduction (Ra ≥ 90). Thanks to the protection class IP44 on the bottom in the installed state, it is also suitable for moist surroundings. The lamp can be combined with external power supplies and thus can be dimmed. The ANIK SQUARE CCT series covers a wide power spectrum from 9 W to 30 W. The color temperature can be individually adjusted from 2700-6500K via an optional controller. With its flat design (19–22 mm height) and various diameters (144–398 mm), it is suitable for both new buildings and renovation projects.
