Deko Light 710024 D Line Steckdosenadapter High voltage mounting rail Busbar 3-phase White
EAN:
Part number:
Item no:
Highlights & Details
Trunking 3-phase 230V, D Line socket adapter, 220-240V AC/50-60Hz, 6 A.
- Elegant design
- Easy to install
- Suitable for setup and installation system
- Transforms bus bars into simple power distributors
- Max. 1380 W
Technical specifications
- Product type
High voltage mounting rail
- Component
Busbar
n.rel.
- Series
3-phase
- Operating voltage
230 V
IP20
- Protection class
I
- Factory colour
White
- Material
Plastic

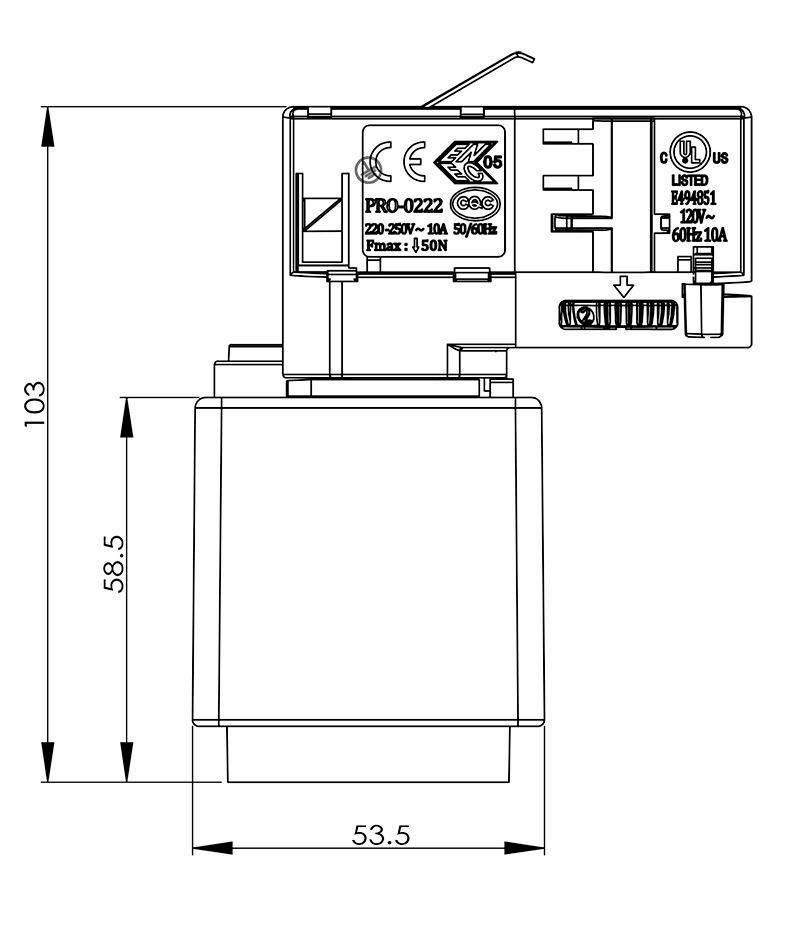

- Dim
(L x W x H) 59 x 54 x 103 mm
- Width
54 mm
- Height
103 mm
- Length
59 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2497899 Deko Light 710024 D Line Steckdosenadapter High voltage mounting rail Busbar 3-phase White
Information
Information 2497899 Deko Light 710024 D Line Steckdosenadapter High voltage mounting rail Busbar 3-phase White
Description
With our socket adapter, additional devices, lights, etc. can be supplied with power in the simplest way. In combination with the 'Additional component mounting adapter« [710054/55/56], additional headlamps or other devices [up to 10kg) can be fitted and supplied with power.
This text is machine translated.
This text is machine translated.
Features
- Rail system 3-phase 230V
- D Line socket adapter
- 220-240V AC/50-60Hz
- 6 A
