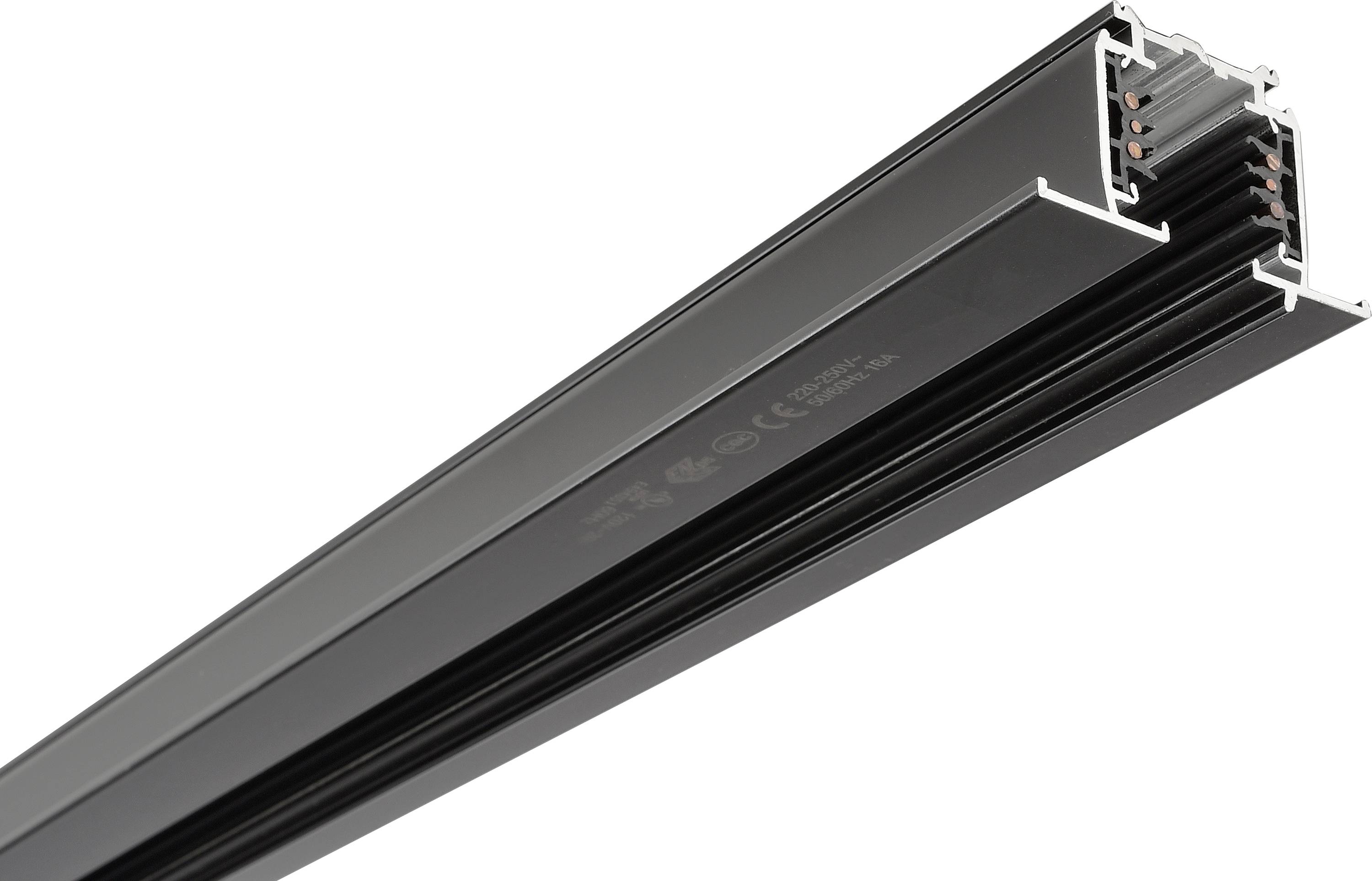

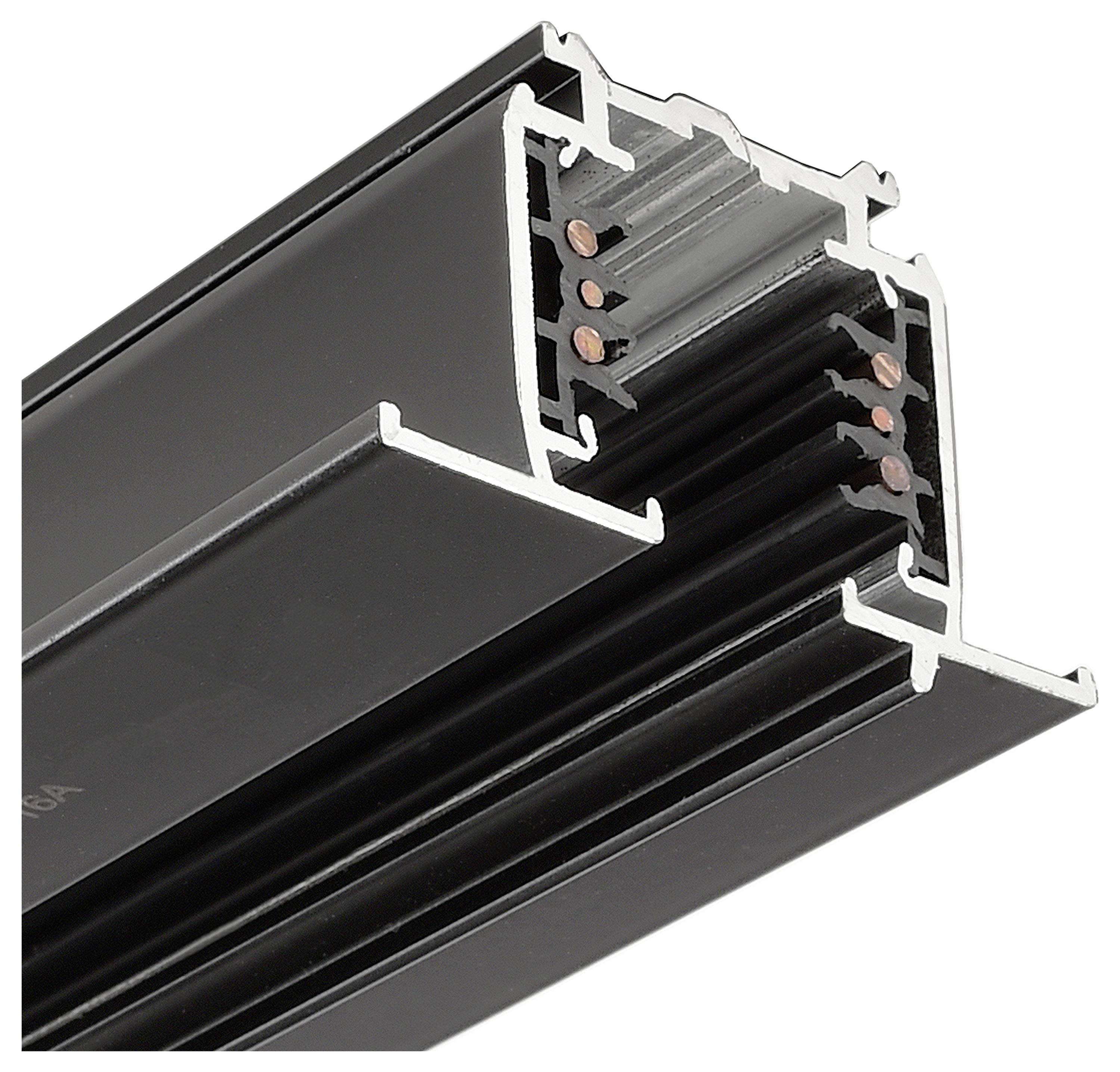

Deko Light 710507 D Line DALI High voltage mounting rail Busbar Graphite grey (RAL 9011)
EAN:
Part number:
Item no:
Technical specifications
- Cut-out dimension length (mm): 1000
- Cut-out dimension width (mm): 36
- Output current: 16 A
- Product type
High voltage mounting rail
- Component
Busbar
- Operating voltage
220 V AC
- Light features
Dimmable
IP20
- Protection class
I
- Factory colour
Graphite grey (RAL 9011)
- Material
Aluminium
- Dim
(L x W x H) 1000 x 56 x 35.5 mm
- Width
56 mm
- Height
35.5 mm
- Length
1000 mm
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3347494 Deko Light 710507 D Line DALI High voltage mounting rail Busbar Graphite grey (RAL 9011)
Warranty Terms
Warranty Terms 3347494 Deko Light 710507 D Line DALI High voltage mounting rail Busbar Graphite grey (RAL 9011)
Description
Deco-Light, 3-phase rail system, D Line DALI mounting rail with blade 1m, black, graphite black RAL 9011, input voltage 220-240 V/AC, length 1000 mm, Width 56 mm, Height 35.5 mm, IP 20
