Deko Light 843056 Lighting controller
EAN:
Part number:
Item no:
Highlights & Details

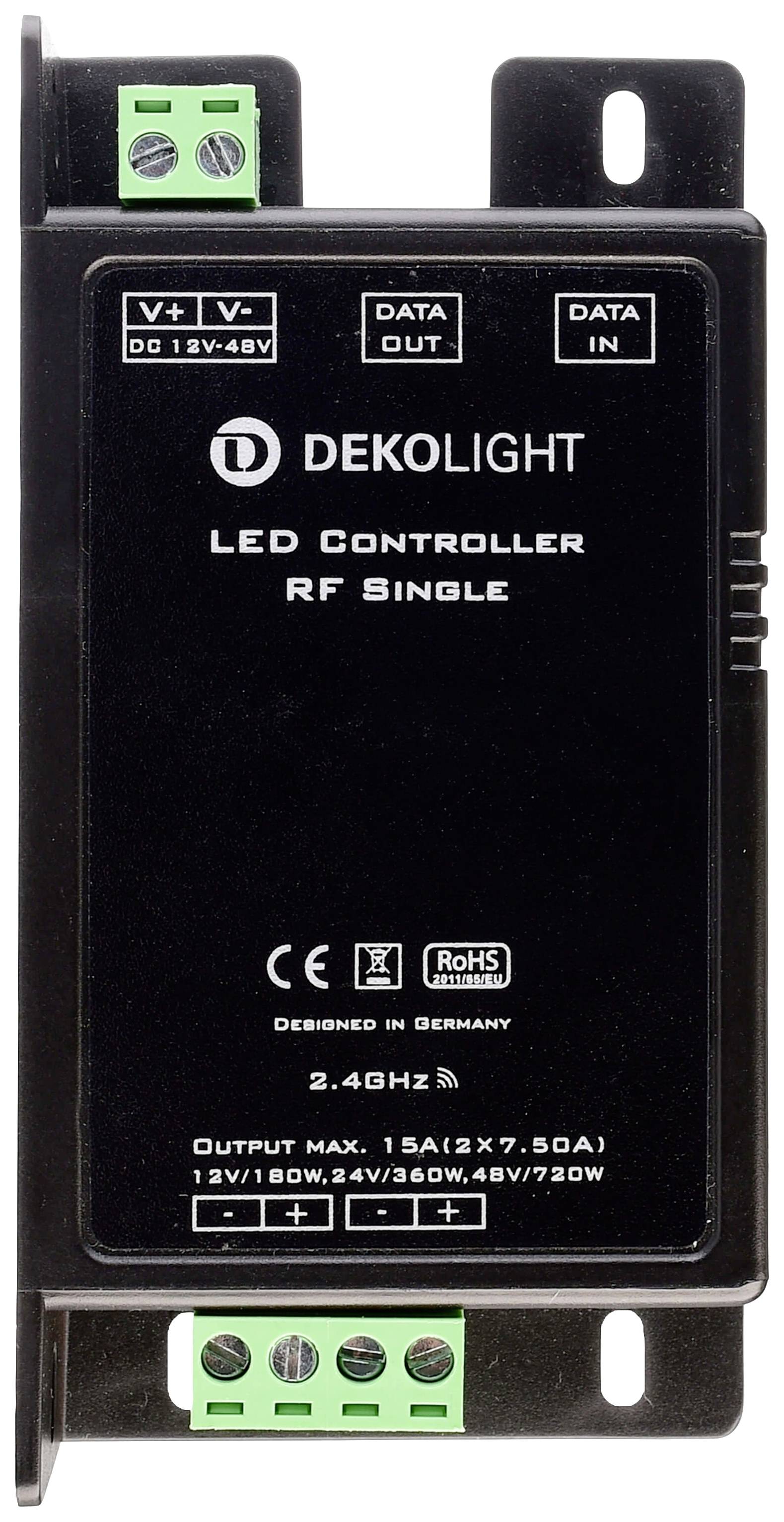

Decorative Light Controller, RF Single Remote
- Control with remote control or wall touch panel
- Easy to Use
- Suitable for 12V/24V/48V DC
- Pre-installed programs
Technical specifications
- Max. 7.5 A per channel
- Power: 2x 90W [180W] at 12V DC, 2x 180W [360W] at 24V DC, 2x 360W [720W] at 48V DC
- 2x AAA battery (please order separately)
- Protection class IP21
- Temperature range -20 to +50 °C
- Connection option: Terminal
- Dim
(L x W x H) 115 x 57 x 25 mm
- Product type
Lighting controller
- Max. power
720 W
- Weight
126 g
Yes
- Input voltage
12 V
24 V
48 V
- Width
57 mm
- Height
25 mm
- Length
115 mm
- Protection class
III
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2523546 Deko Light 843056 Lighting controller
Description
The radio remote controls can be used to control corresponding receiver systems within a radius of approx. 20 meters. The ability to connect only one wireless remote control to multiple controllers extends the system in a simple way. Caution: A 100% synchronous control [program sequence, color change] of several controller boxes with only one radio remote control can only be implemented by a connection via network cable [master-slave function]. The memory function saves the last setting after a power failure.
This text is machine translated.
This text is machine translated.
Features
- For controlling 1-channel LED strips
- Dimmable
- 4 effects programs
- Adjustable program speed
- Max. 8 remote controls / 2 touch panels per system range
- Memory function
- Master/Slave function
- Voltage stability
- Dimmable

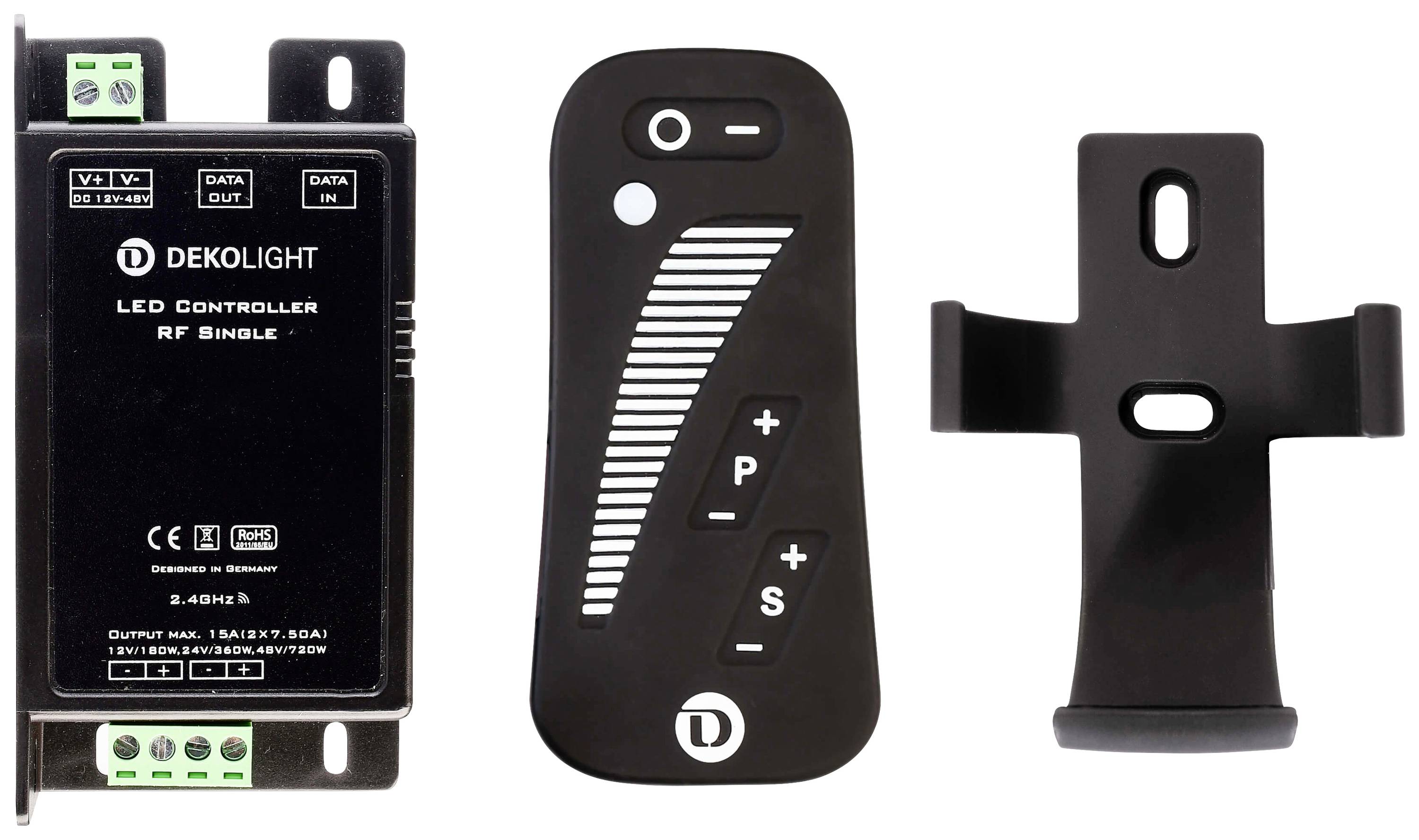

Scope of delivery
- Controller

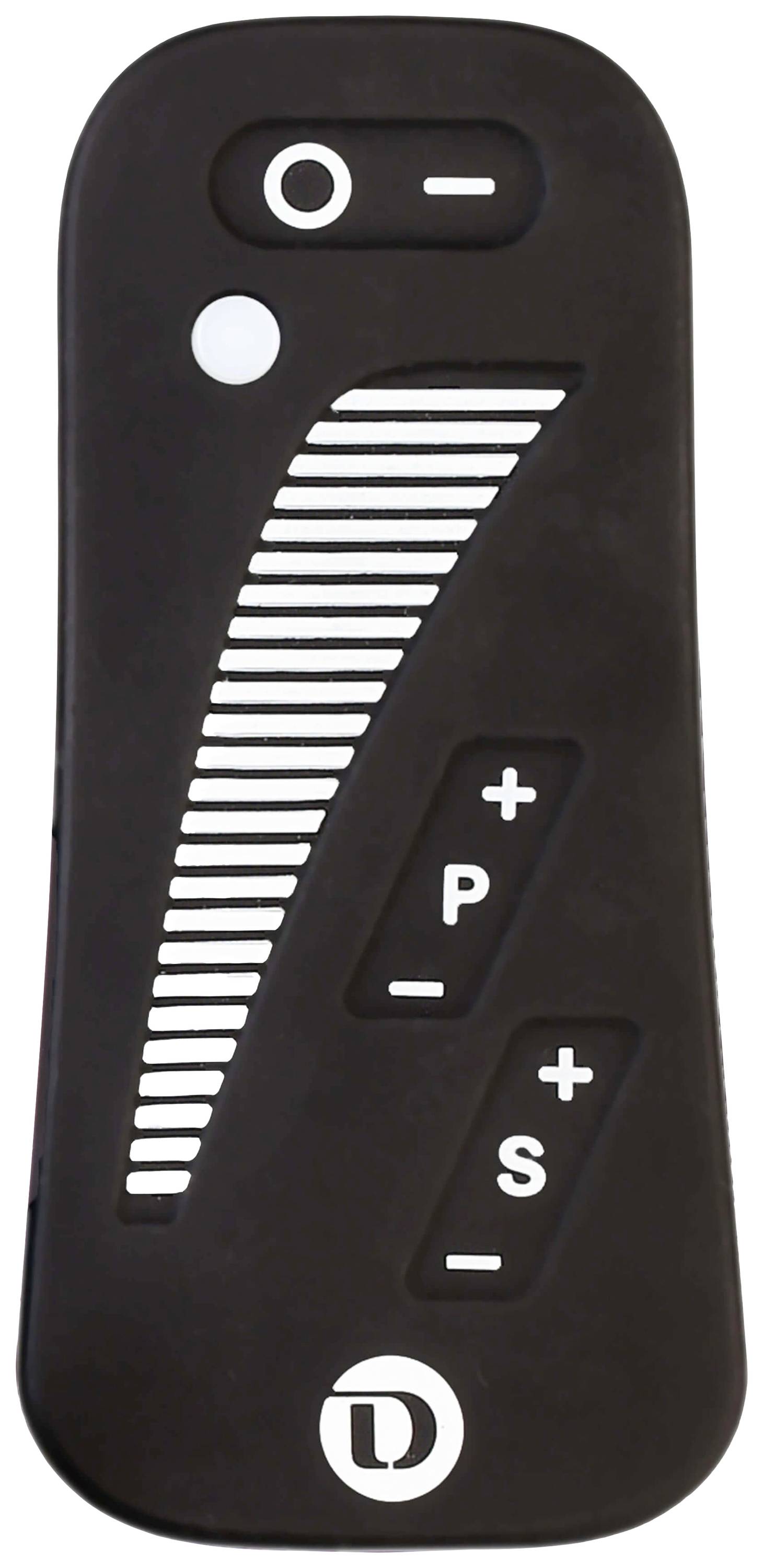

- Remote control

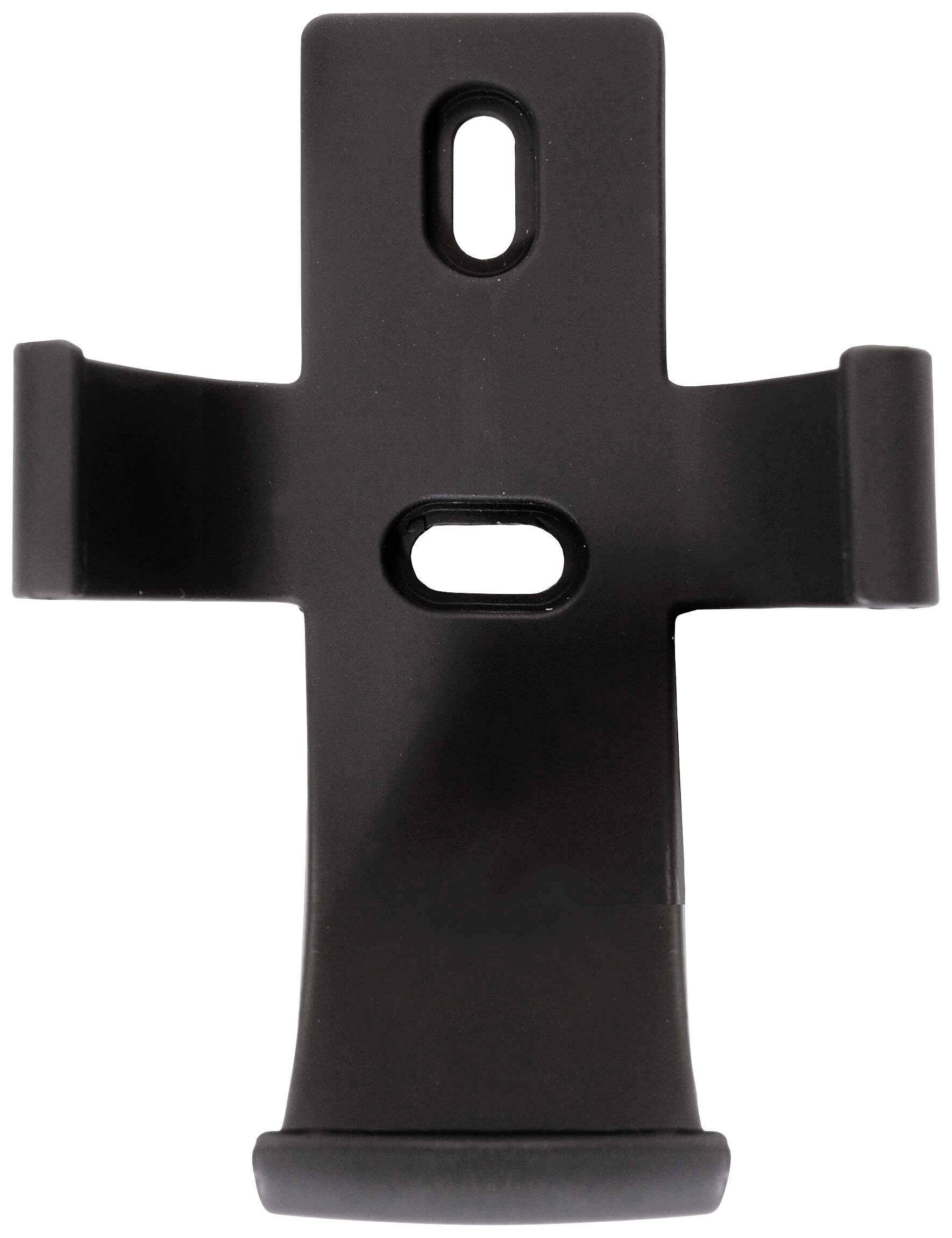

- Wall bracket
- User manual.
Hints
Batteries not included.
