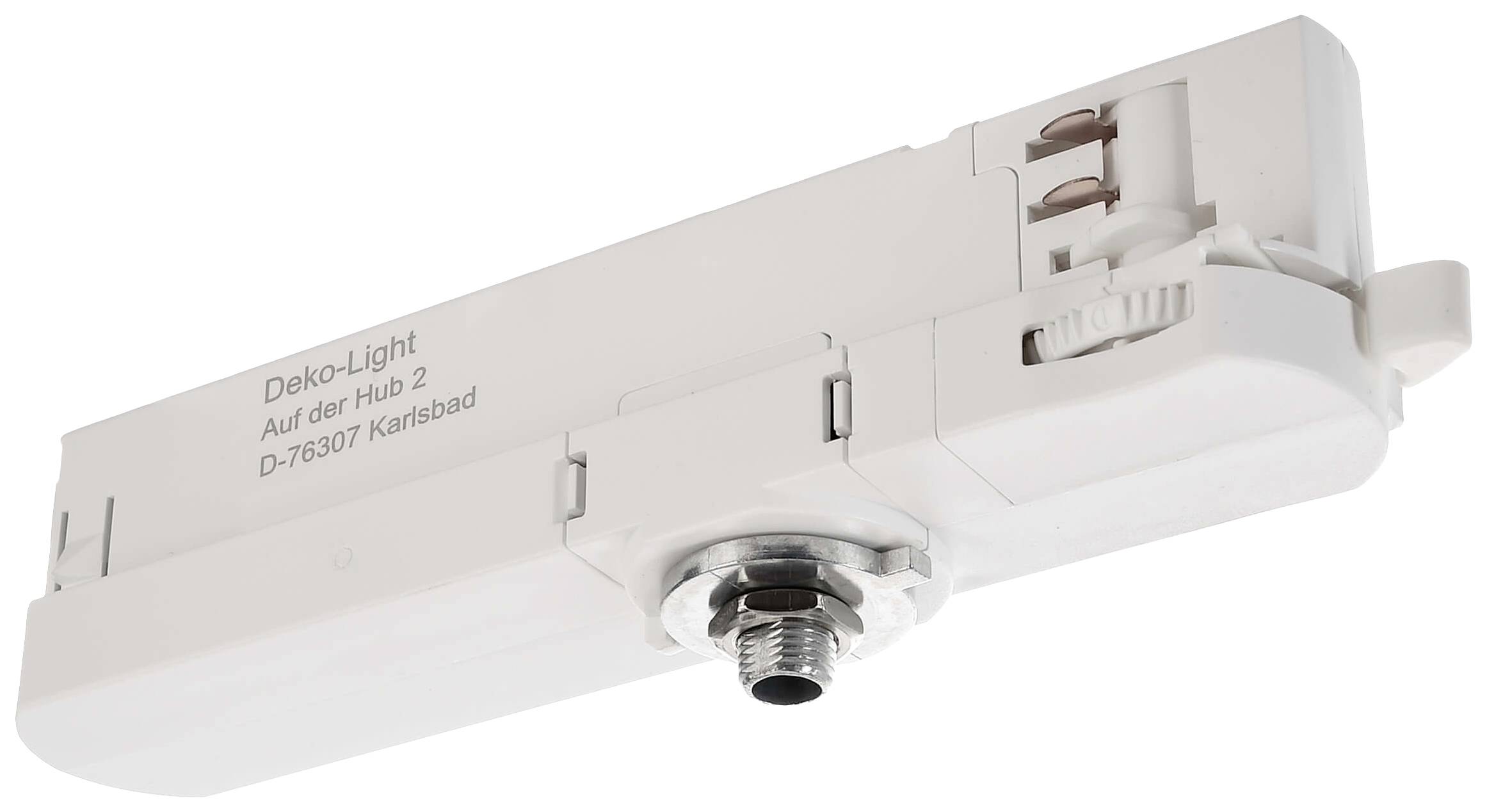

Deko Light 862182 D Line 3-Phasen-Adapter Multi-CC-Netzgerär High voltage mounting rail Power feed 3-phase White
EAN:
Part number:
Item no:
Highlights & Details

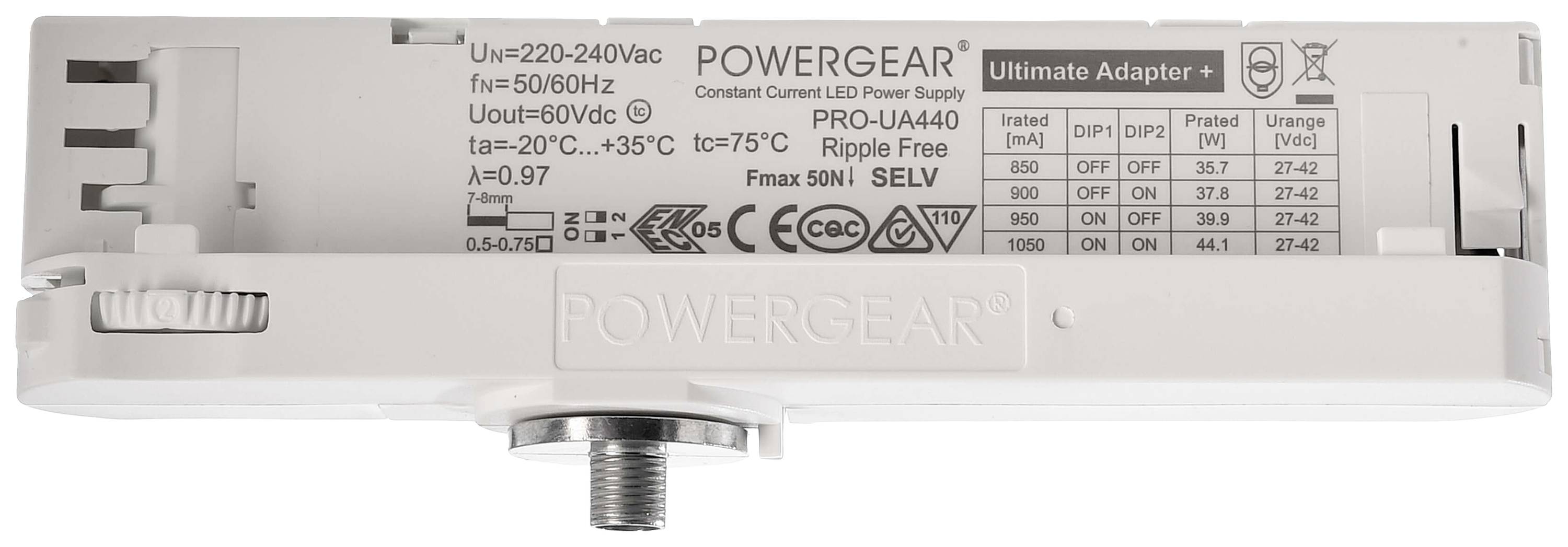

Deco-Light power supply, Multi CC, PRO-UA440-W 3-phase 230V track system, constant current, 220-240V AC
- Elegant design
- Suitable for setup and installation system
- 230V adapter for converting current-stable lamps
- Observe electrical data as a matter of urgency!
- This text is machine translated.
Technical specifications

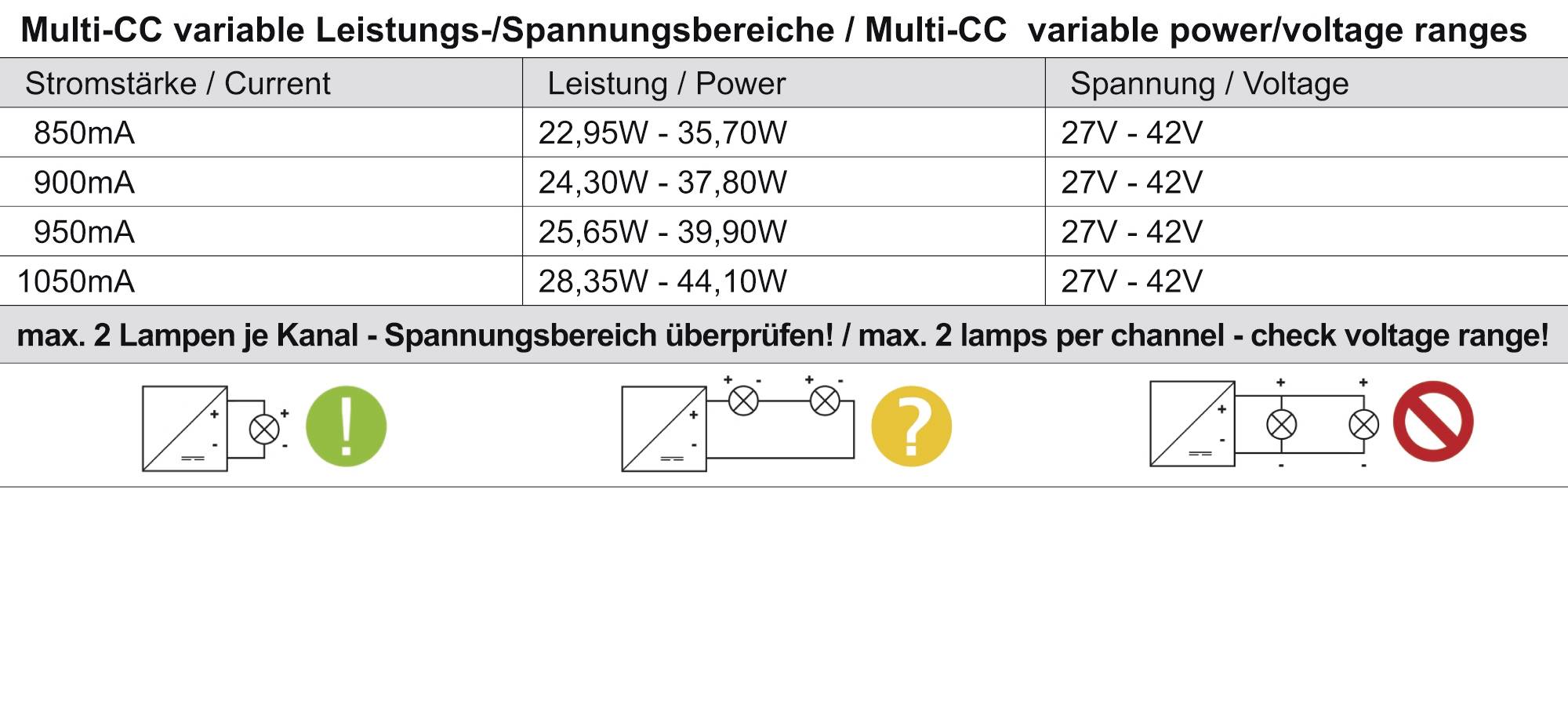

- Power 22.95 to 44.10 Watt
- Output voltage 27 - 42V DC
- Product type
High voltage mounting rail
- Component
Power feed
n.rel.
- Series
3-phase
- Operating voltage
230 V
IP20
- Protection class
I
- Factory colour
White
- Material
Plastic

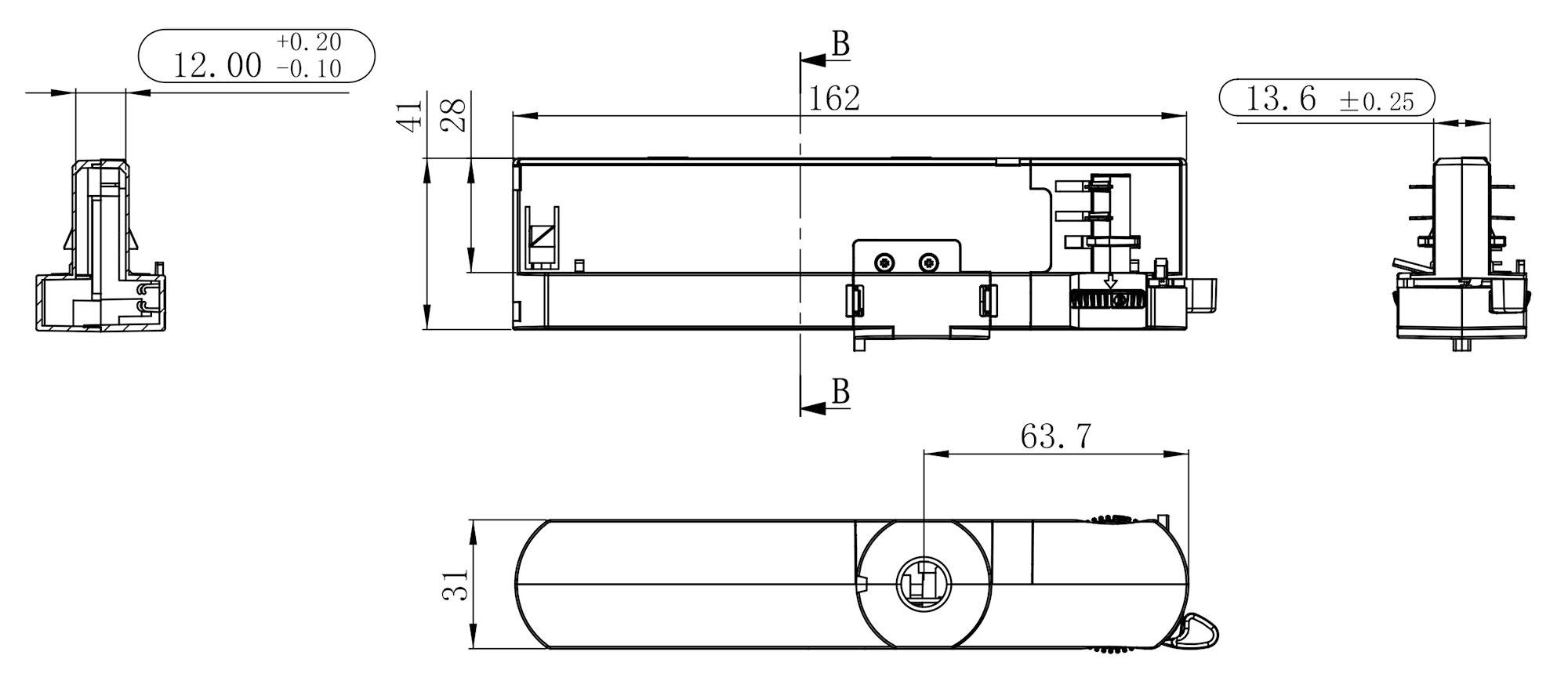

- Dim
(L x W x H) 162 x 31 x 41 mm
- Width
31 mm
- Height
41 mm
- Length
162 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2497831 Deko Light 862182 D Line 3-Phasen-Adapter Multi-CC-Netzgerär High voltage mounting rail Power feed 3-phase White
Description
Features
- Decorative light power supply
- Power 22.95 to 44.10 Watt
- Output voltage 27 - 42V DC
- Multi CC
- PRO-UA440-W rail system 3-phase 230V
- current constant
- 220-240 V AC
Scope of delivery
- 4x screw, 1x adapter
- 1x Trumpets Nippel
- 1x flat screw
