Deko Light 872129 LED transformer Constant voltage 3.9 W 2.5 - 11 V DC 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
872129
- Constant voltage
- 2.5 - 11 V DC
Technical specifications
- Product type
LED transformer
- Type
Constant voltage
- Dim

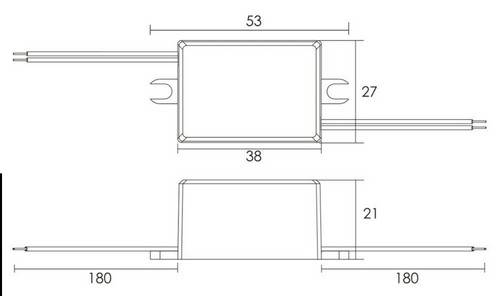

(L x W x H) 53 x 27 x 21 mm
- Factory colour
Black
- Output voltage (max.)
11 V DC
- Output voltage (min.)
2.5 V DC
- Protection class
II
IP65
- Connection
Open end cable
- Max. power
3.9 W
- No. of outputs
1 x
- Weight
46 g
- Power (min.)
0.9 W
- Power range
0.9 up to 3.9 W
- Width
27 mm
- Height
21 mm
- Length
53 mm
- Max. temperature
50 °C
- Min. temperature
-20 °C
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3347637 Deko Light 872129 LED transformer Constant voltage 3.9 W 2.5 - 11 V DC 1 pc(s)
Warranty Terms
Warranty Terms 3347637 Deko Light 872129 LED transformer Constant voltage 3.9 W 2.5 - 11 V DC 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
