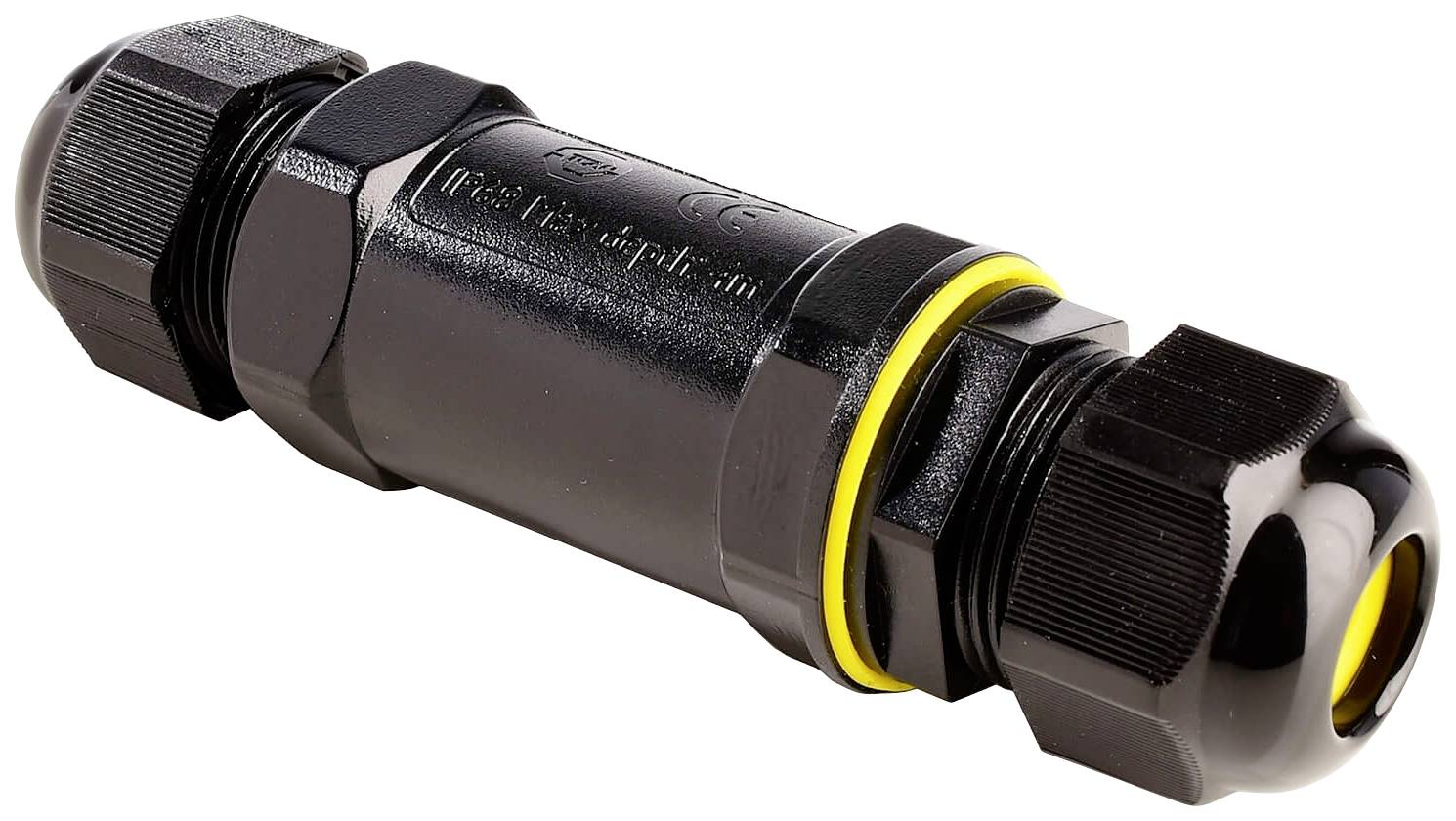

Deko Light 930571 Wire connector (Ø x L) 32.56 mm x 112.53 mm 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
Accessories, Outdoor Multi cable connector
- For 2 cables 4-14 mm, 2-5 wires 0.5-4 mm²Waterproof cable glands M25For 2-5 wires 0.5 - 4 mm
Technical specifications
- Max. input voltage 450V/ACInput current max. 24AFor 2 cables 4-14 mm2-5 wires 0.5-4 mm²
- Product type
Wire connector
- Content
1 pc(s)
- Factory colour
Black

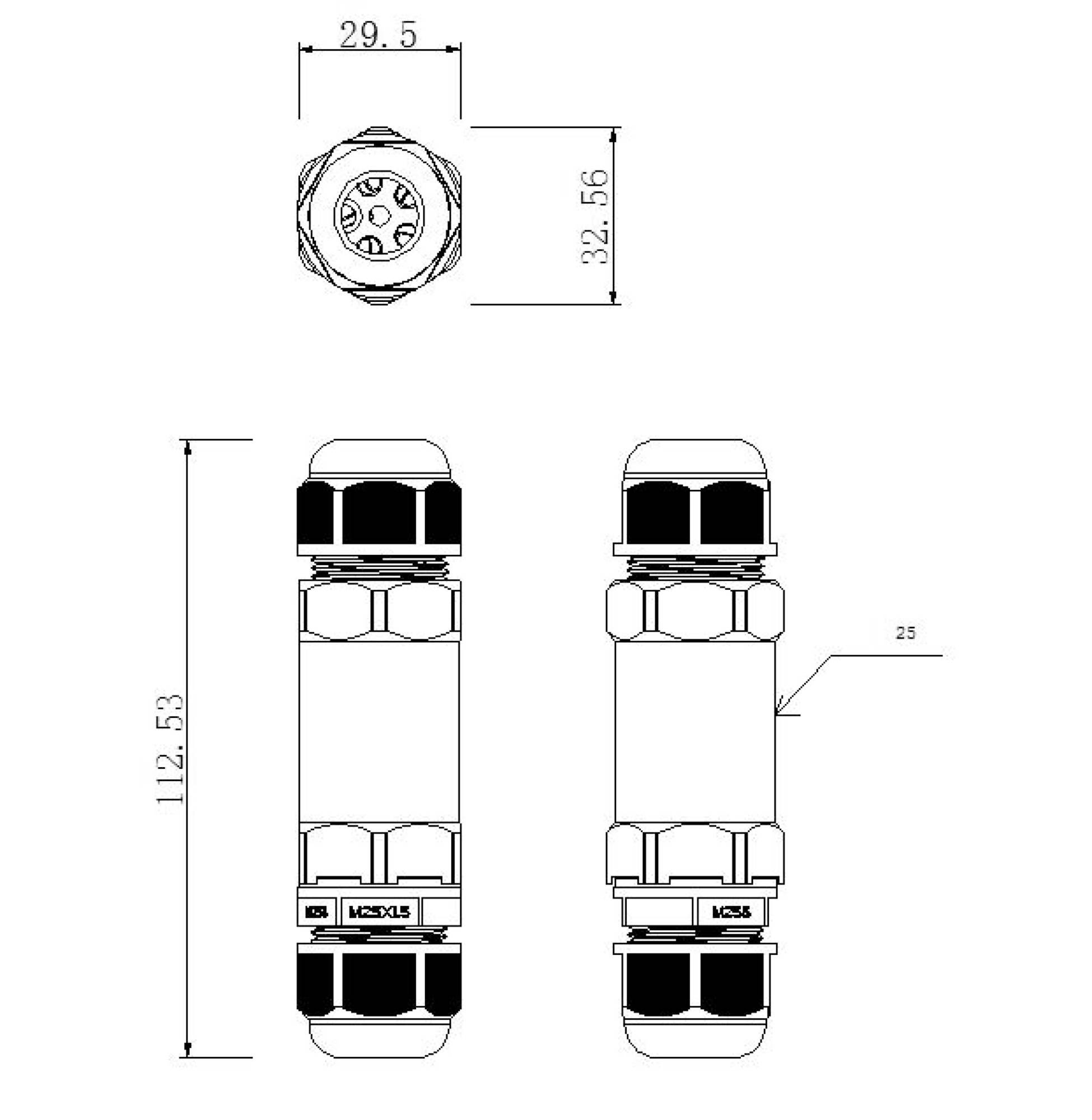

- Dim
(Ø x L) 32.56 mm x 112.53 mm
- Length
112.53 mm
- Width
29.5 mm
- (Ø)
32.56 mm
IP68
- Material
PA66
- Operating voltage
450 V
- Weight
72 g
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2618337 Deko Light 930571 Wire connector (Ø x L) 32.56 mm x 112.53 mm 1 pc(s)
Description

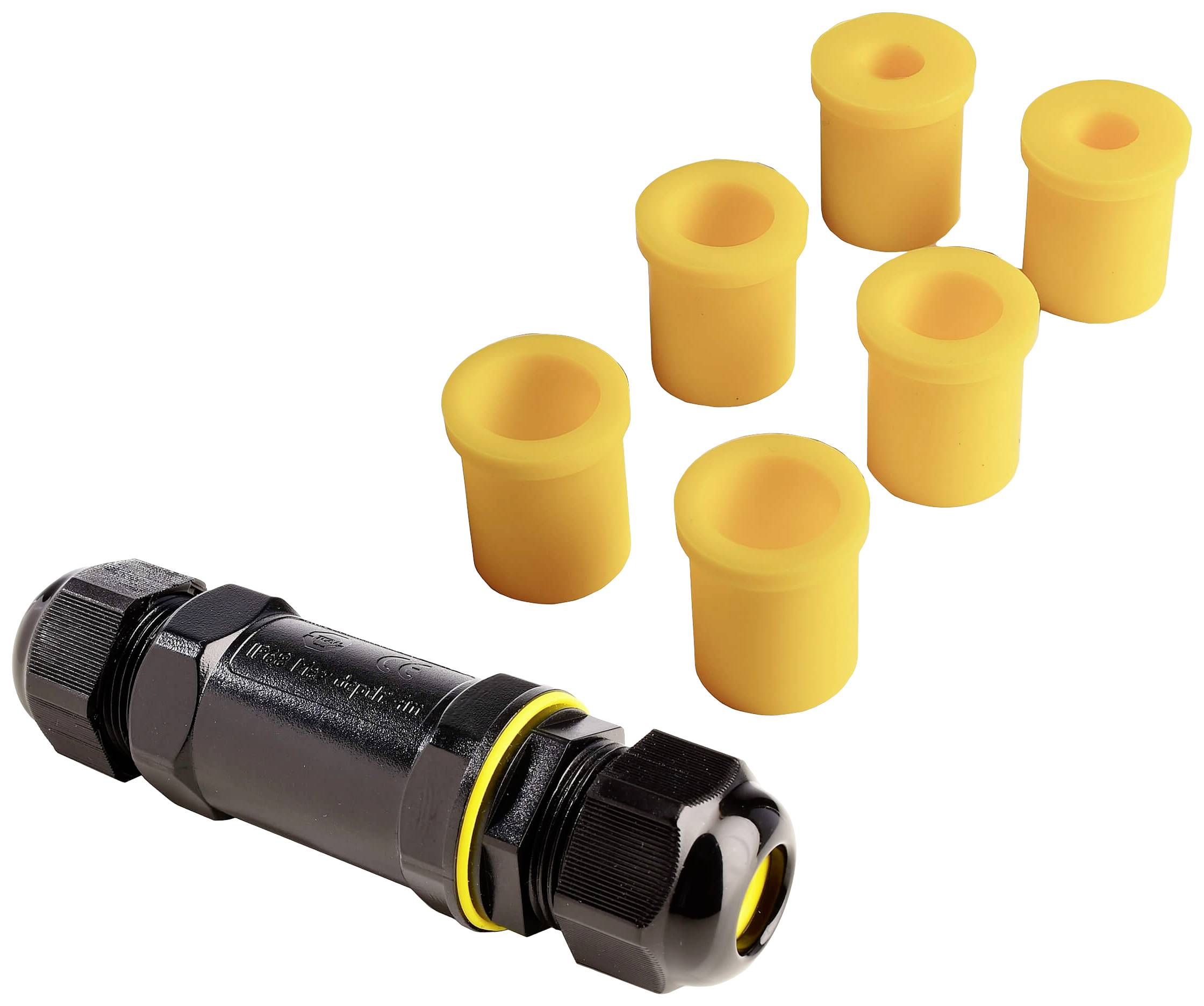

Our multi-outdoor cable distribution boxes provide for a clean cable management in gardens, parks and other outdoor areas and protect your cables against different influences from the outside. The junction boxes are supplied with various adapter sleeves to connect cables with different cross sections watertight (M20 or M25 cable glands). The waterproof cover, which is also screwed on, enables subsequent access to the laid cables. Unused connections can be secured with the provided blanking plugs.
This text is machine translated.
This text is machine translated.
Features
- For cabling low voltage and 230V outdoor componentsRobust housingCan be used multiple ways with the supplied adapter sleevesIndoors and outdoorsGarden / terrace
