Deko Light 930573 Y splitter 450 V Black
EAN:
Part number:
Item no:
Highlights & Details

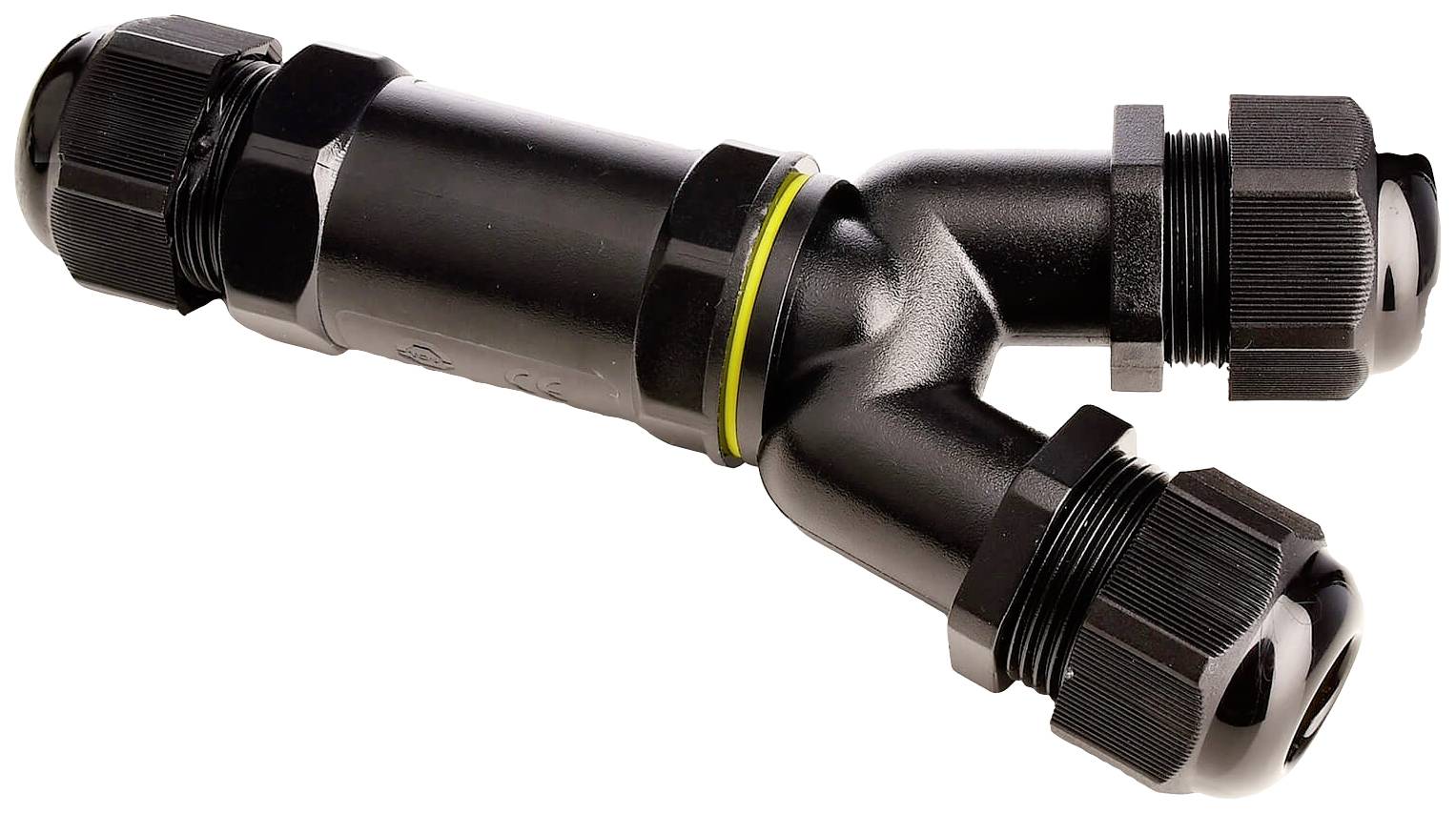

Accessories, Outdoor Multi Y-connector for 3 cables
- For 3 cables 4-14 mm, 2-5 wires 0.5-4 mm²Waterproof cable glands M25For 2-5 wires 0.5 - 4 mm
Technical specifications
- Max. input voltage 450V/ACInput current max. 24AFor 3 cables 4-14 mm2-3 wires 0.5-4 mm²
- Product type
Y splitter
n.rel.
- Operating voltage
450 V
- Factory colour
Black
- Material
PA66
IP68
- Weight
110 g

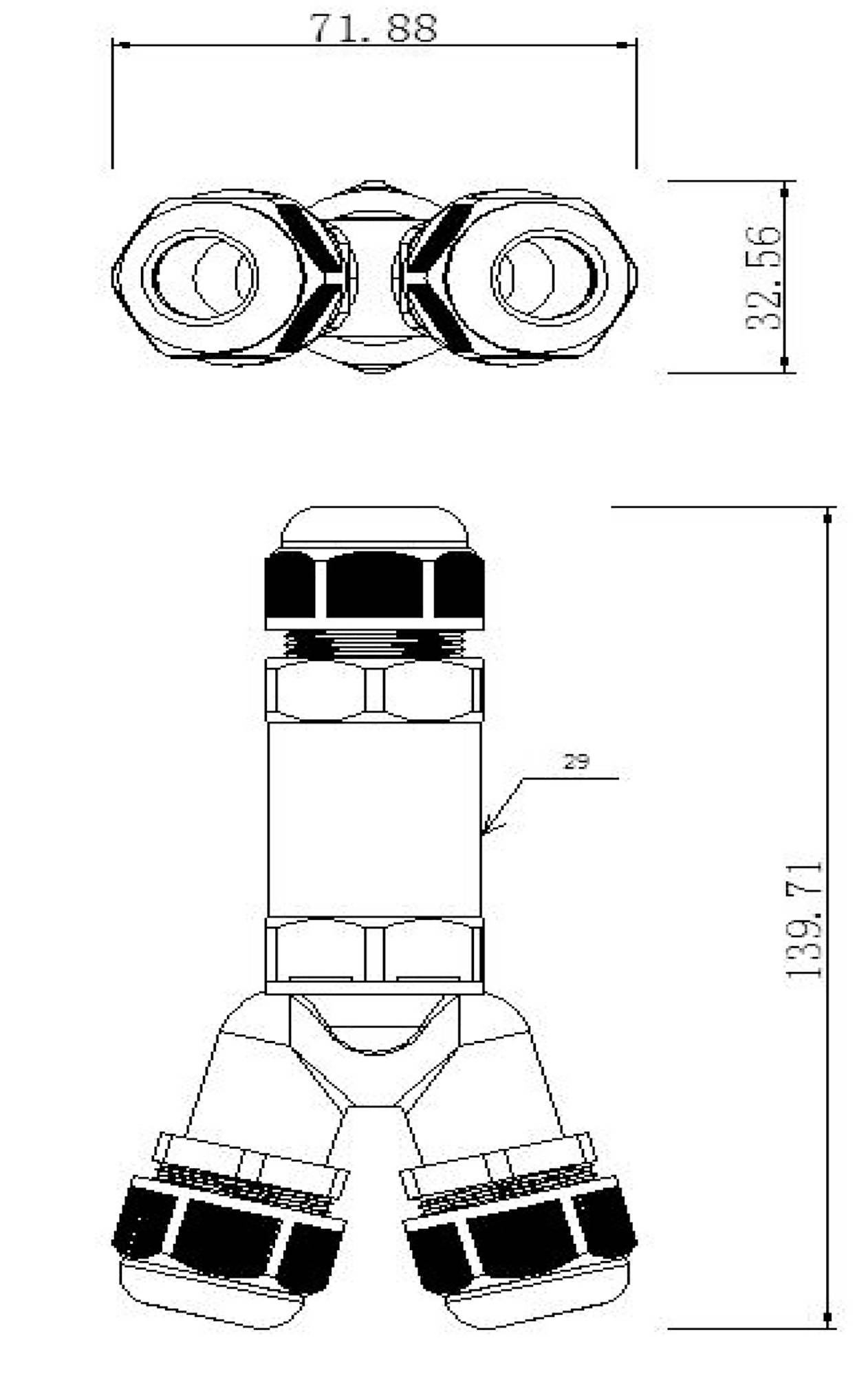

- Dim
(Ø x L) 32.56 mm x 139.71 mm
- Width
71.88 mm
- Length
139.71 mm
- (Ø)
32.56 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2618339 Deko Light 930573 Y splitter 450 V Black
Description

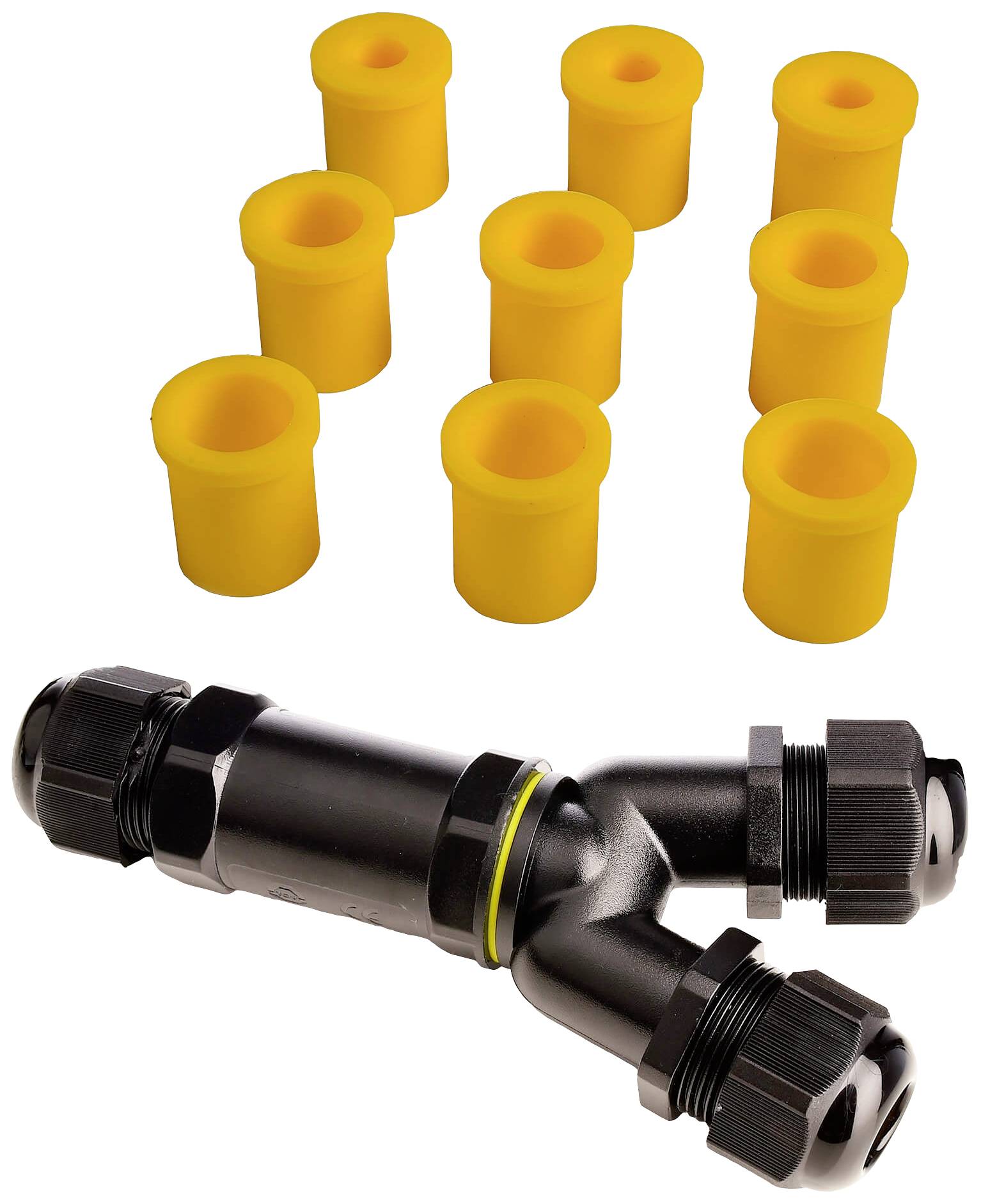

Our multi-outdoor cable distribution boxes provide for a clean cable management in gardens, parks and other outdoor areas and protect your cables against different influences from the outside. The junction boxes are supplied with various adapter sleeves to connect cables with different cross sections watertight (M20 or M25 cable glands). The waterproof cover, which is also screwed on, enables subsequent access to the laid cables. Unused connections can be secured with the provided blanking plugs.
This text is machine translated.
This text is machine translated.
Features
- For cabling low voltage and 230V outdoor componentsRobust housingCan be used multiple ways with the supplied adapter sleevesIndoors and outdoorsGarden / terrace
