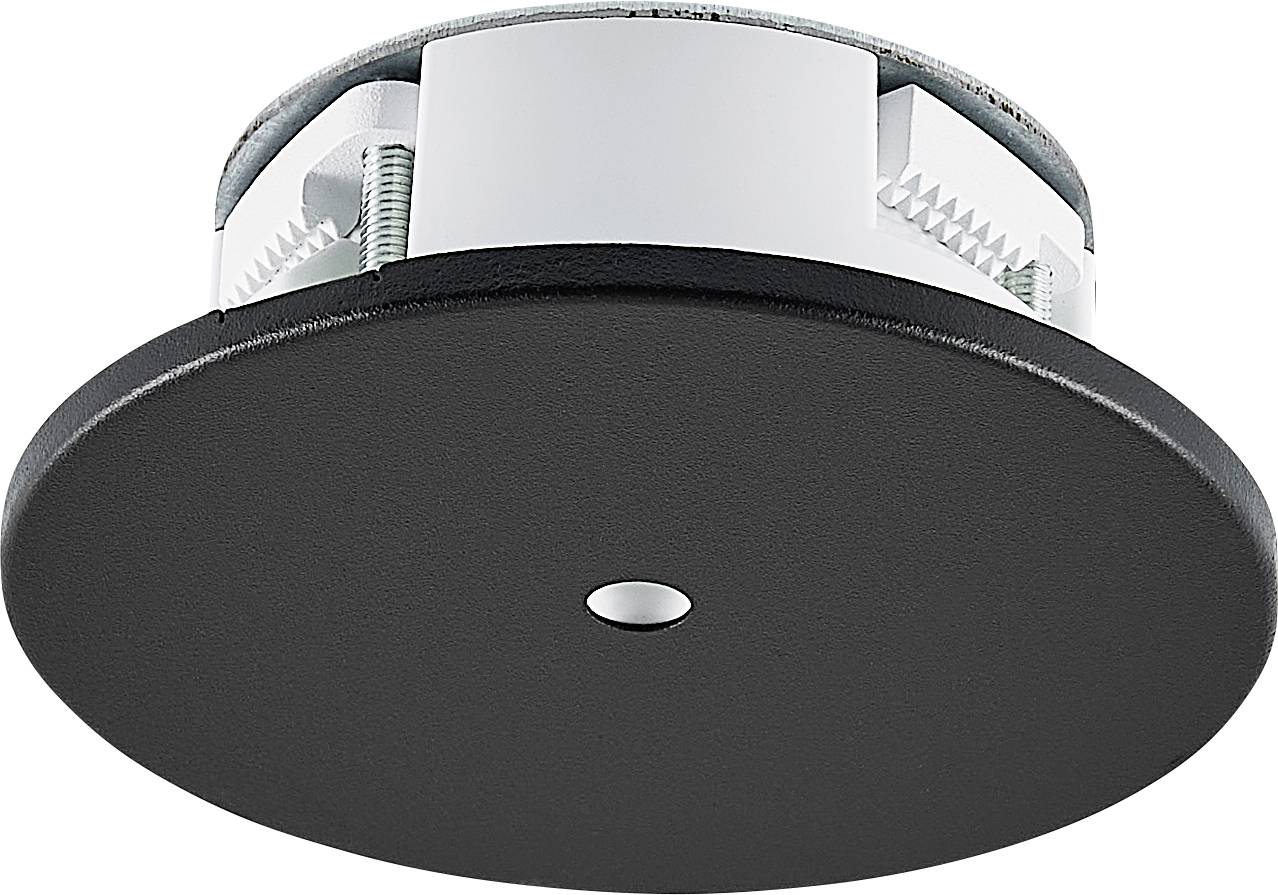

Deko Light 930914 Flush mount adapter Jet black (RAL 9005)
EAN:
Part number:
Item no:
Highlights & Details
Mechanical mounting accessories, 68 mm ceiling mounting adapter for pendant lights, black, height 32 mm, dur
- Secure mounting of pendant lights in 68 mm ceiling cut-out
- Incl. 3-pin junction box with strain relief and pass-through wiring
- Suitable for 5 - 7 mm cable diameter
- Suitable for 2 - 15 mm ceiling thickness
Technical specifications
- Surface texture: Matt
- Maximum load weight: 2.5 kg
- Load: Max. 25 N
- Line entry number max.: 2 pcs
- Cutting width: Diameter 65 - 75 mm
- Cutting diameter min.: 65 mm
- Cut diameter max. 75 mm
- Required mounting depth: 42 mm
- Product dimension mounting depth 27 mm
- Mounting surface Strength min./max.: 2 - 15 mm
- Dim
(Ø x H) 90 mm x 32 mm
- Product type
Flush mount adapter
- Factory colour
Jet black (RAL 9005)
- Recess depth
42 mm
- Material
Steel
Polycarbonate (PC)
- Height
32 mm
- (Ø)
90 mm
IP20
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3429170 Deko Light 930914 Flush mount adapter Jet black (RAL 9005)
Warranty Terms
Warranty Terms 3429170 Deko Light 930914 Flush mount adapter Jet black (RAL 9005)
Description
The ceiling mounting adapter is the ideal solution for a discreet and secure mounting of pendant lights with a weight of up to 2.5 kg. The electrical connection is quick and reliable thanks to the integrated 3-pin junction box with strain relief and pass-through wiring. Suitable for cable diameters from 5–7 mm and ceiling thicknesses from 2–15 mm, the adapter ensures a clean integration of the light into the ceiling. The result: A simple, high-quality appearance that hides all electrical components discreetly and meets the highest aesthetic demands.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x quick connection box 2-WAY
