Deko Light 930966 Bulb holder E-27 220 V AC, 240 V AC
EAN:
Part number:
Item no:
Highlights & Details

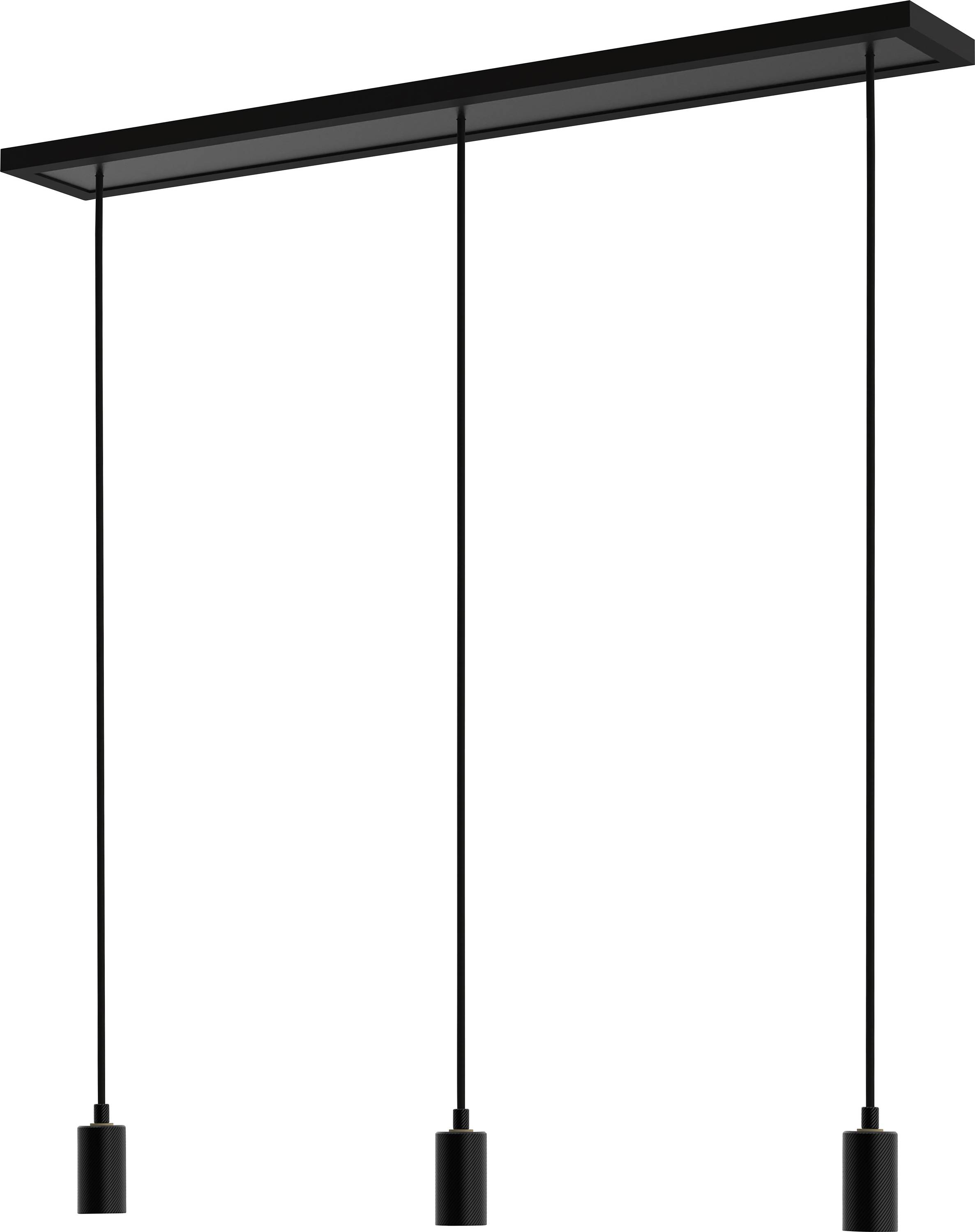

Electrical system accessories, Segula 3-way E27 socket Madox for design bulb
- Movable E27 socket sleeve(s) for adjustment at illuminant with special dimensions
- Optimal in conjunction with our Design-Build series
- Oak textile cable
- High-quality surface finish
- Cable type 2 x 0.75 mm2
- Socket Ø x H 50 x 80 mm
Technical specifications
- Housing material: Plastic
- Case material: metal
- Housing colour black.
- Mounting type: Surface mounting
- Mounting surface: Ceiling mounting
- Number of sockets 3 pcs
- Max. Power 3 x max. 57.0 W
- Socket length 990 mm
- Socket width 150 mm
- Socket height 25 mm
- Weight: 2637 g.
- Connection possibility:connection box IP20
- Operating temperature -20 to +35°C.
- Mounting location: Inside
- Input voltage 220-240 V/AC
- Power: 57.0 W
- Protection class II / protective insulation
- Length: 1500 mm
- Width 83 mm
- Height: 83 mm
- Pendulum length max. 1500 mm
- IP protection class IP20
- Product type
Bulb holder
E-27
n.rel.
- Factory colour
Black
- Dim
(L x W x H) 1500 x 83 x 83 mm
- Operating voltage
220 V AC
240 V AC
- Width
83 mm
- Height
83 mm
- Length
1500 mm
- UKCA
yes
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3429190 Deko Light 930966 Bulb holder E-27 220 V AC, 240 V AC
Warranty Terms
Warranty Terms 3429190 Deko Light 930966 Bulb holder E-27 220 V AC, 240 V AC
Description
Electrical system accessories, Segula 3-way E27 socket Madox for design bulb.
