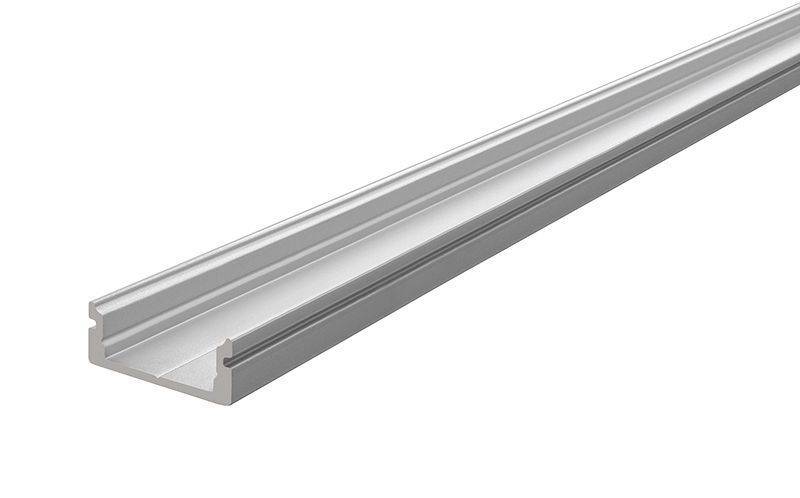

Deko Light 970048 AU-01-12 U-section rail Aluminium (L x W x H) 3000 x 18 x 7 mm 3 m
EAN:
Part number:
Item no:
Product type
U-section rail
Material
Aluminium
Length
3000 mm
Energy efficiency rating
n.rel.
Material properties
anodised
Datasheet (PDF)
Technical specifications
- Product type
U-section rail
- Material
Aluminium
- Material properties
anodised
- LED features
can be shortened
- Width
18 mm
- Height
7 mm
- Length
3000 mm
- Depth
3000 mm
- Dim
(L x W x H) 3000 x 18 x 7 mm
n.rel.
Documents & Downloads
Datasheet
Datasheet 2794276 Deko Light 970048 AU-01-12 U-section rail Aluminium (L x W x H) 3000 x 18 x 7 mm 3 m
User & Safety Instructions
User & Safety Instructions 2794276 Deko Light 970048 AU-01-12 U-section rail Aluminium (L x W x H) 3000 x 18 x 7 mm 3 m
Description
Inner dimensions = 13.7 mm, for strips up to 13 mm wide
Information
For LED Strips up to 13.3mm width
In 2 different lengths 1m / 2m
In 4 different colors
A profile height of only 7 mm
High-quality aluminum profile
High shape and form-fitting
Structure profile for quick mounting
For the lighting of interiors
Protection of the LED strips through external influences
Wide accessory set

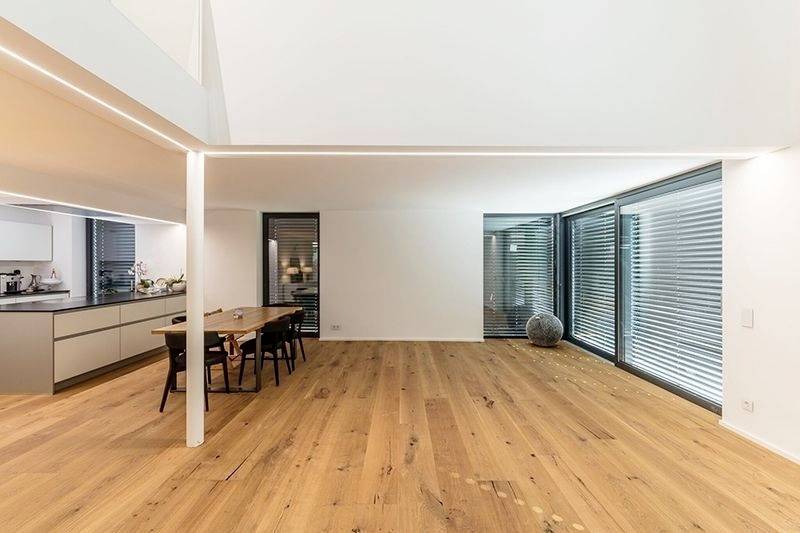

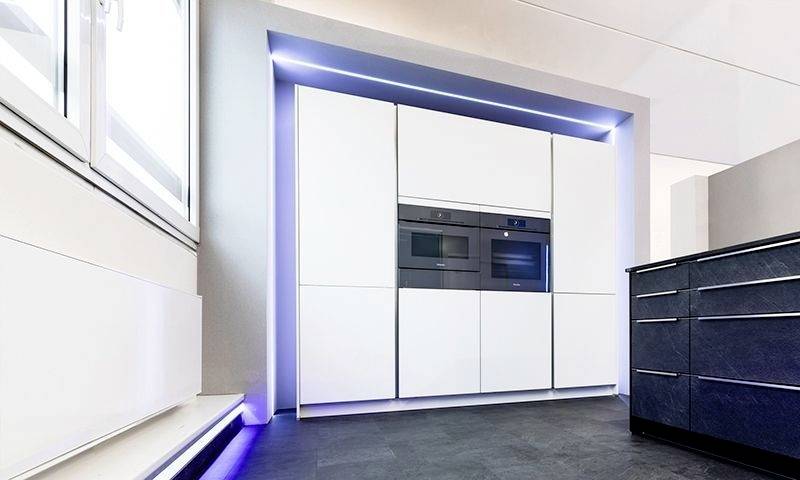

Application examples
Indirect lighting
Accent lighting
Architecture
Wall, ceiling, floor, tiles
Furniture, kitchens
Fair, advertising

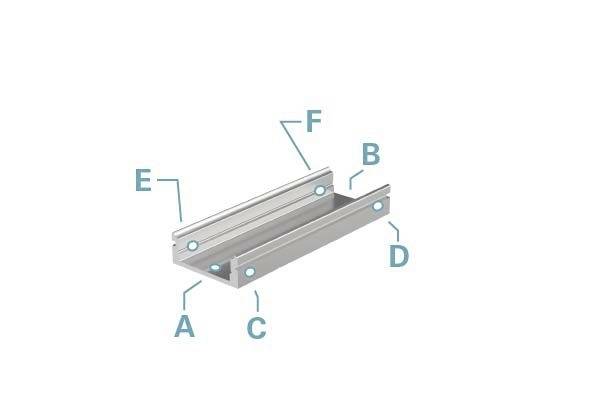

Mount
Retaining clips (available optionally)
When gluing, we recommend a high-quality, neutral, 1-component, moisture-cross-linked elastic silicone sealant for structural glazing
Heat resistant double-sided adhesive tape
Foam adhesive tape for uneven surfaces
Countersunk Screws
As a centering drilling aid, the profile inside has a small joint
IP20
not accessible
Advantages
Small in dimensions
Easy installation
Can be shortened easily as desired
High-quality modern and timeless design
For the use of rigid and flexible LED strips
Homogeneous light effect, no dazzle through suitable covers
Passive cooling of the LED strips, extending the service life
Constant quality control, high-quality aluminum, environment-friendly
Brand quality from the house of Reprofile
This text is machine translated.
