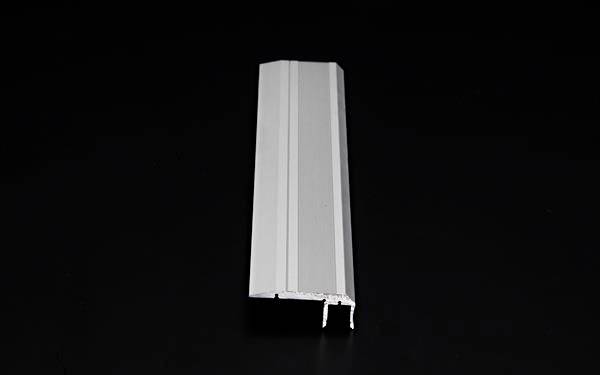

Deko Light 970520 AL-02-10 Staircase shape Aluminium (L x W x H) 1000 x 61 x 20.50 mm 1 m

Inner dimensions = 11.7 mm

Information

For LED strips to 11.3mm width
In different lengths 1m / 1.5m / 3M
Aluminium anodised
An economical surface area of 39mm
A covered support height of 16.5mm
Structure profile for quick mounting
High shape and form-fitting

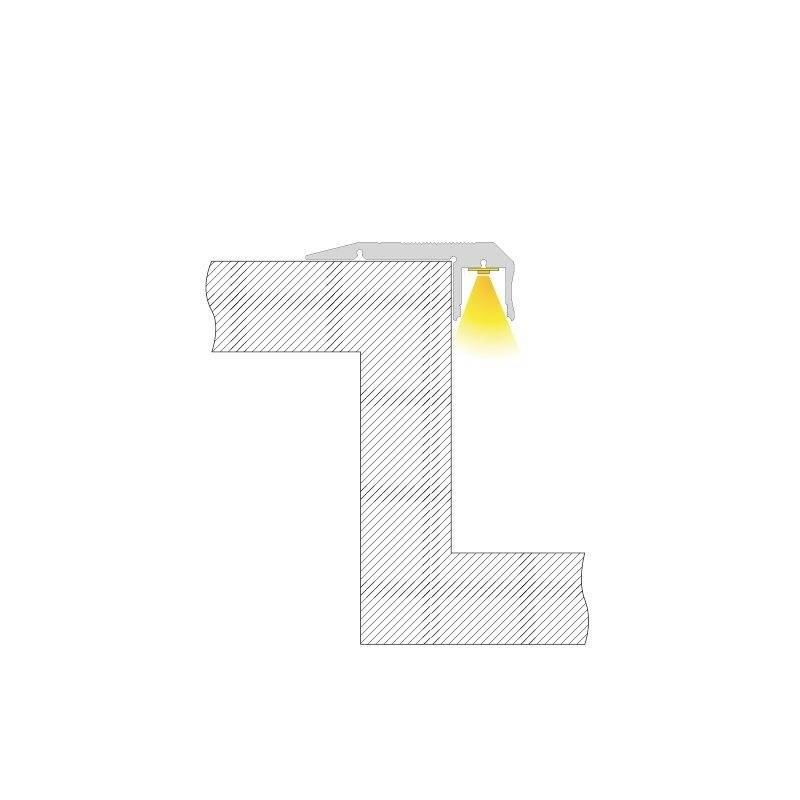

For the lighting of stairs and edges
Protection of the LED strips through external influences
High-quality aluminum profile

Application examples

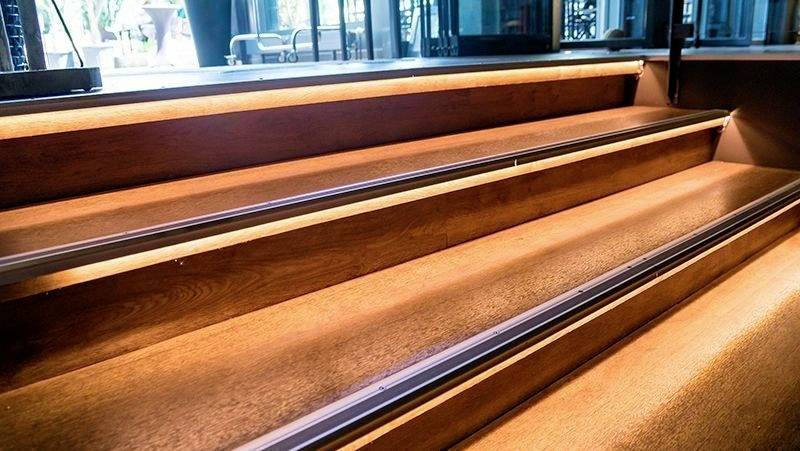

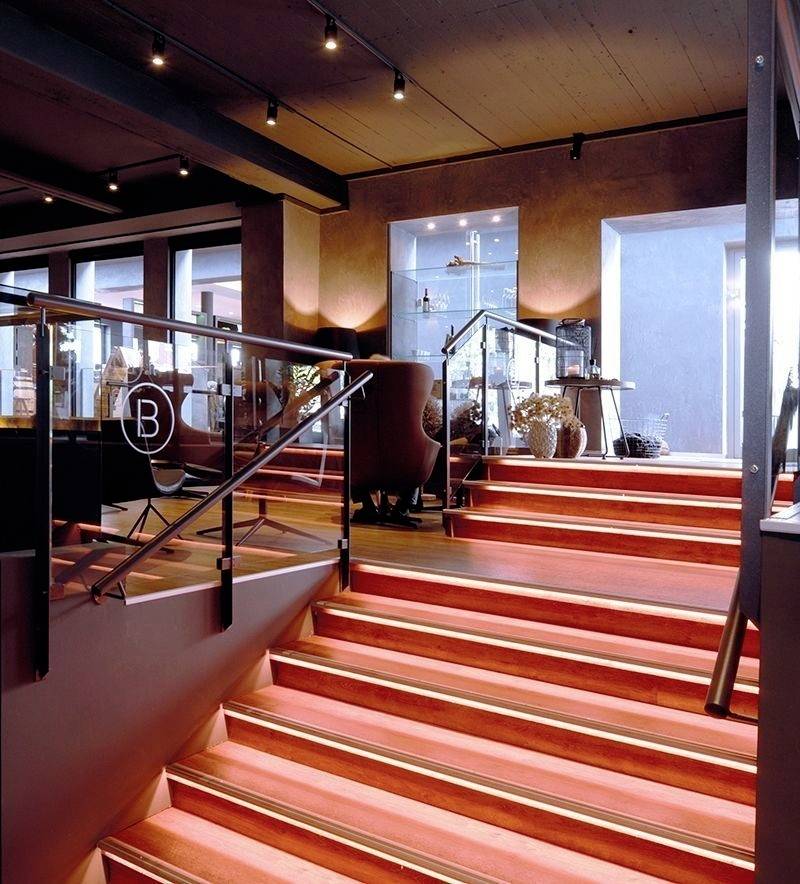

Special and excellent for stairs, platforms and edges
Mostly used in hotels, restaurants, offices, public buildings, at trade fairs…
Indirect lighting
Visual marking of the levels
Direct edge lighting
Accent lighting
Architecture

Mount

If the profile is not loaded, it does not have to be used for going through, the profile does not have to be screwed together.
High-quality, neutral, 1-component, moisture-absorbing elastic silicone sealant for Structural Glazing
Heat resistant double-sided adhesive tape
Foam adhesive tape for uneven surfaces
If the profile is exposed to loads and used for walking, the profile must be permanently screwed tight.
Recommendation for the correct stop. The profile must lie flat and be screwed firmly onto the surface at least every 20 cm; use a counter-sunk screw at least 5 cm

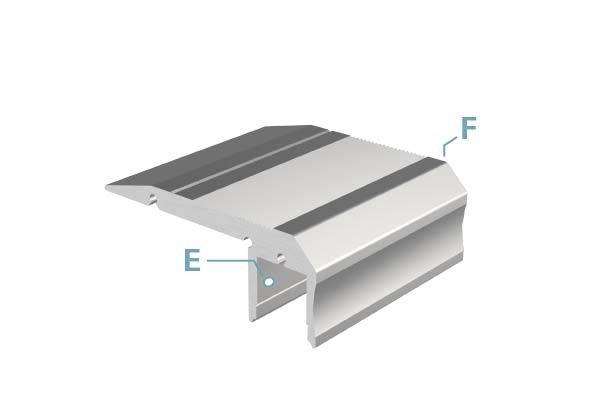

As a centering drilling aid, the profile in the rear top area has a small joint
IP20

Advantages

Very solid, robust and warp resistant profile, with a thickness in the tread of 4.5 mm
As desired, even easily shortened high-quality modern and timeless design
For the use of rigid and flexible LED strips
Homogeneous light effect, no dazzle through suitable covers
Passive cooling of the LED strips, extending the service life
Constant quality control, high-quality aluminum, environment-friendly
Brand quality from the house of Reprofile
