Buy Deko Light Arcturus I 731099 LED wall light 6 W LED (monochrome) Graphite grey (RAL 7024)

Black, rectangular outdoor wall light with a modern design, consisting of two parts that diffuse light upwards and downwards.

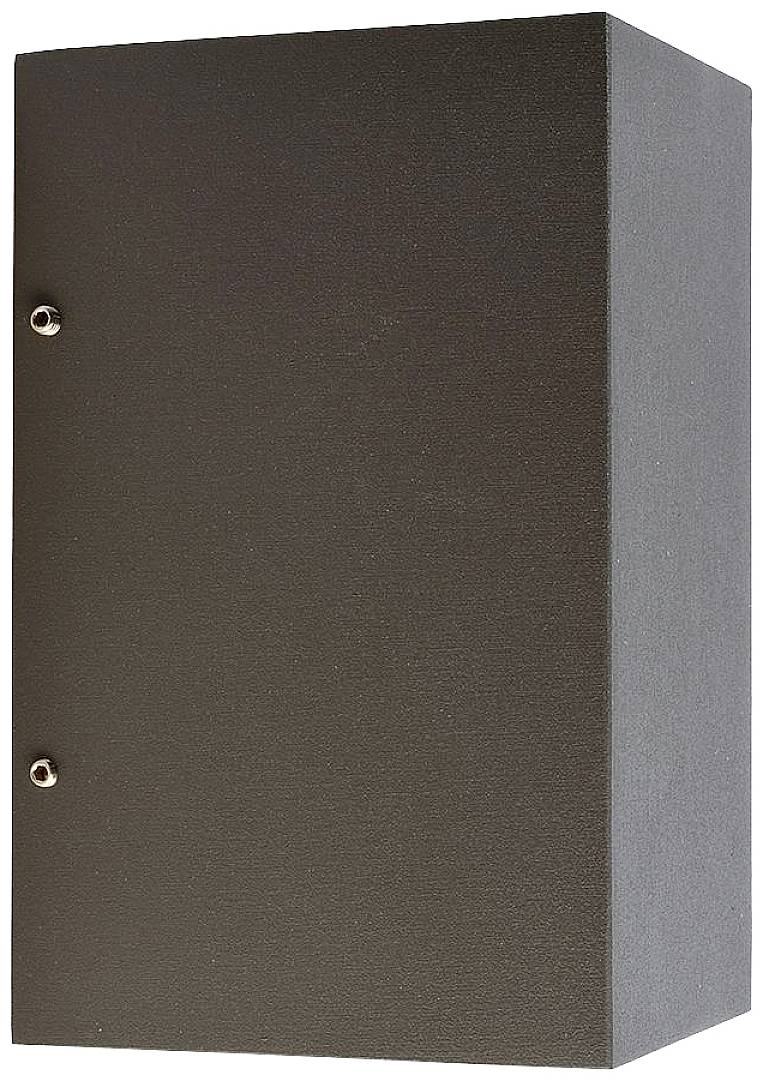

A rectangular, black metal box with two protruding screws on the left side, presumably a distribution box.

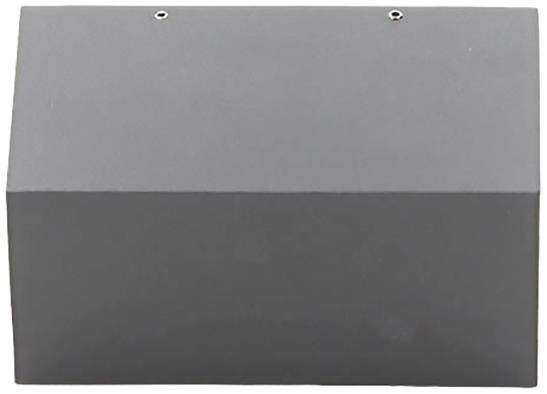

Black rectangular block with two small screws on the top surface, possibly an enclosure or part of a device.

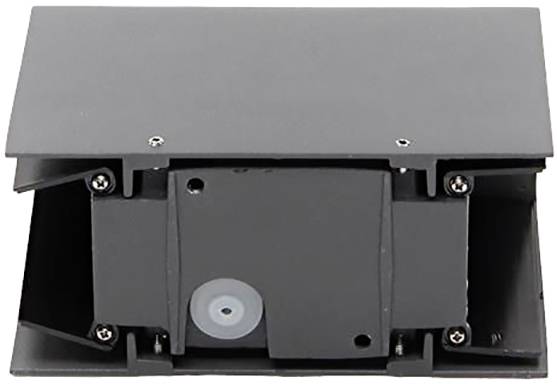

Metal enclosure with angled front, suitable for floor mounting. Visible screws at the corners.

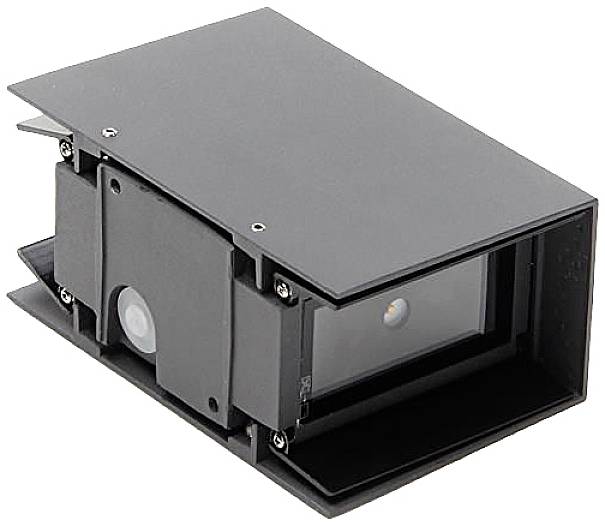

A rectangular, black metal outdoor recessed wall housing with a glass panel, suitable for the installation of light fixtures.

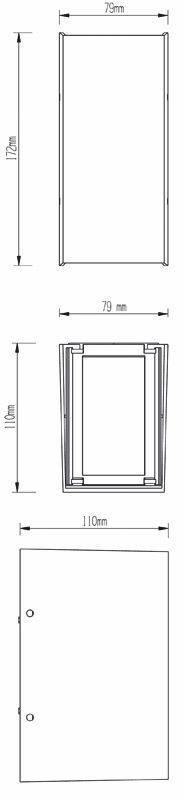

Technical drawing of a rectangular container with dimensions: 70 cm x 110 cm. Side and top views are shown.

1/6

Datasheet (PDF)

Unavailable

533 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Wall surface-mounted lamp Arcturus I

Wall surface-mounted lampUp/down lightIncl. LED power supply

Technical specifications

Product type: LED wall light

Operating voltage: 230 V

No. of bulbs: 2

Bulb type: LED (monochrome)

Rating per bulb: 3 W

: 6 W

Radiation angle: 90°

Protection class: I

: IP54

Factory colour: Graphite grey (RAL 7024)

Material: Aluminium (die-cast)

Weight: 977 g

Dim: (L x W x H) 110 x 79 x 170 mm

: n.rel.

Type: Rectangular

Colour: Warm white

Light bulb included: Yes

: 3000 K

Total luminous flux: 200 lm

Width: 79 mm

Height: 170 mm

Length: 110 mm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2618129 Deko Light Arcturus I 731099 LED wall light 6 W LED (monochrome) Graphite grey (RAL 7024)

User & Safety Instructions

User & Safety Instructions 2618129 Deko Light Arcturus I 731099 LED wall light 6 W LED (monochrome) Graphite grey (RAL 7024)

Description

The ARCTURUS I LED wall-mounted light is presented in a modern cube design [optionally also in oblong form] and is suitable for the flexible lighting in outdoor areas. The angle of radiation of the IP54 light can be adjusted between 0° and 90° via an integrated shutter, in order to generate a different light image depending on the application requirement. Protected in the dark gray aluminum die-cast housing are the two high-power LEDs, which produce a warm white, strong light.

This text is machine translated.
