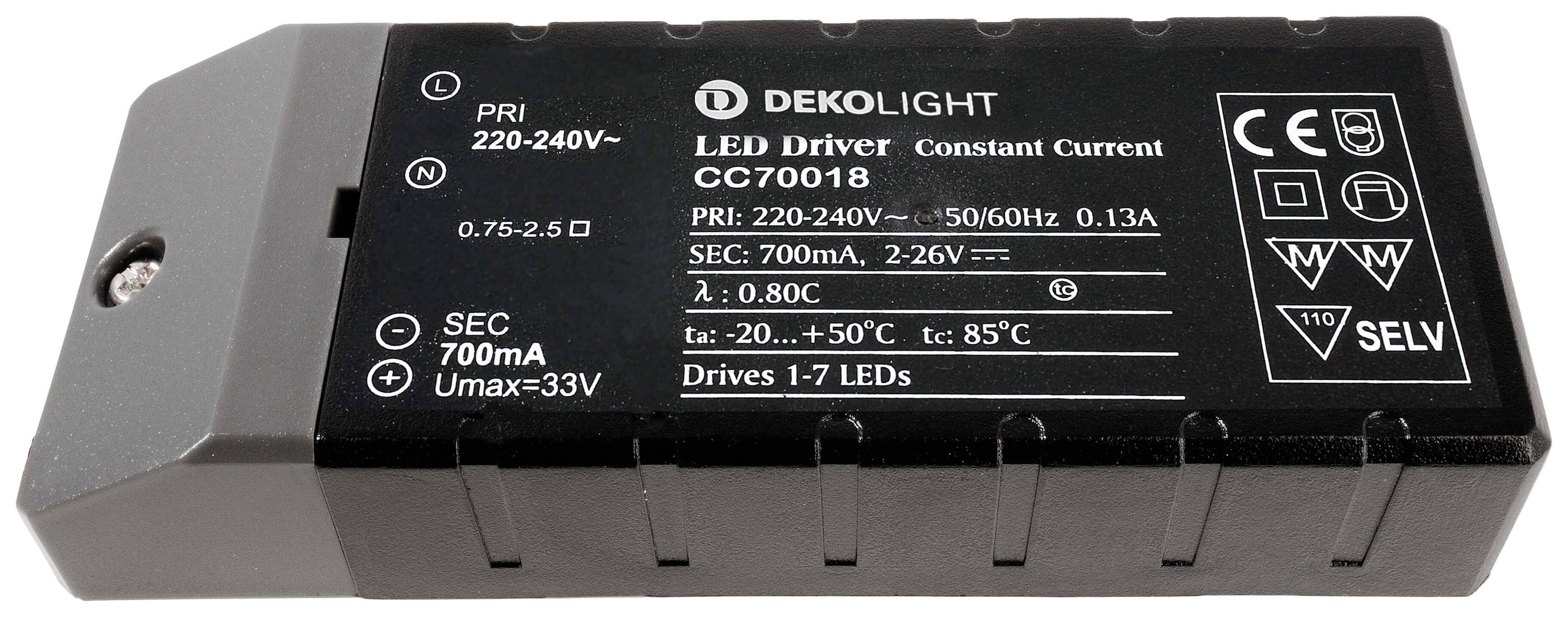

Deko Light BASIC, CC, CC70018/18W LED transformer Constant current 18 W 700 mA 2 - 26 V Surge protection 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Deco-Light LED-Power supply, BASIC, CC, CC70018/
- Constant current
- 2 - 26 V
- 700 mA
Technical specifications
- Product type
LED transformer
- Type
Constant current
- Operating current
700 mA
- Dim

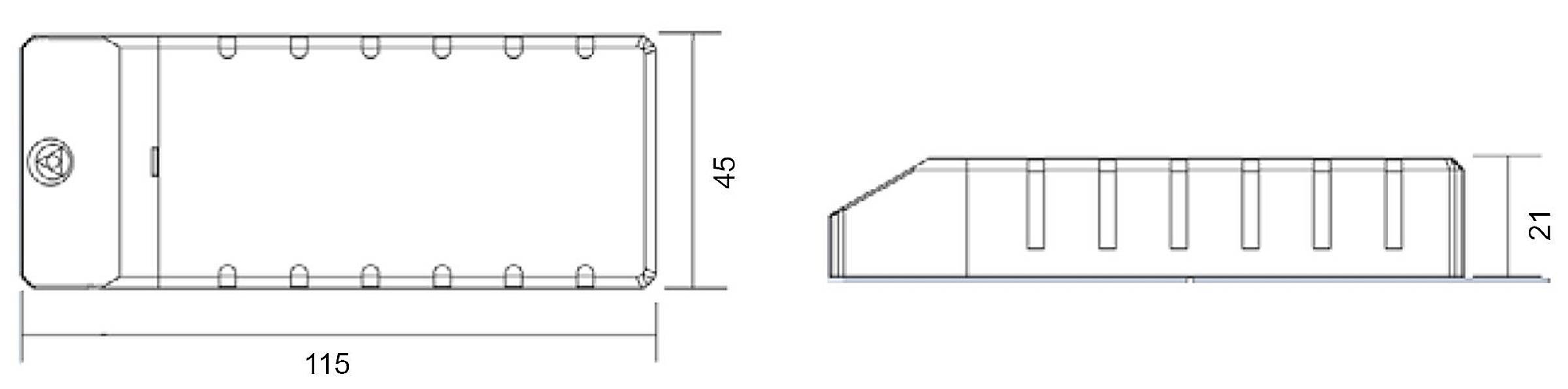

(L x W x H) 115 x 45 x 21 mm
- Factory colour
Black
- Output voltage (max.)
26 V
- Output voltage (min.)
2 V
- Max. output current
700 mA
- Output current (max.) - rounded
700 mA
- Operating voltage
230 V
- Protection class
II
- LED driver features
Surge protection
IP20
- Connection
Clamp
- Max. power
18 W
- No. of outputs
1 x
- No. of inputs
1 x
- Output current (min.)
700 mA
- Input voltage (max.)
240 V
- Min. input voltage
220 V
- Weight
87 g
- Power range
18 W (max)
- Width
45 mm
- Height
21 mm
- Length
115 mm
- Max. temperature
50 °C
- Min. temperature
-20 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2618073 Deko Light BASIC, CC, CC70018/18W LED transformer Constant current 18 W 700 mA 2 - 26 V Surge protection 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2618073 Deko Light BASIC, CC, CC70018/18W LED transformer Constant current 18 W 700 mA 2 - 26 V Surge protection 1 pc(s)
Description
Features
- Compact designFlicker-freeShort-circuit proofOverload protectionOverheating protection
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
