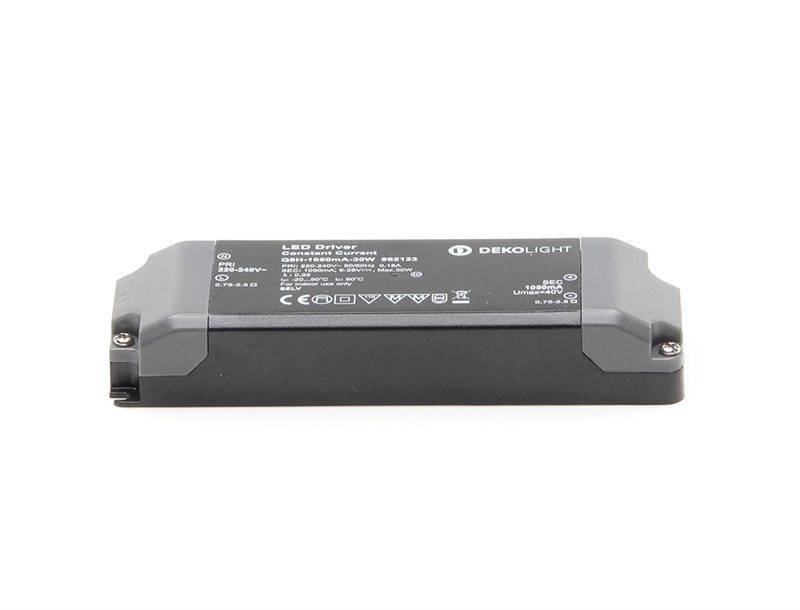

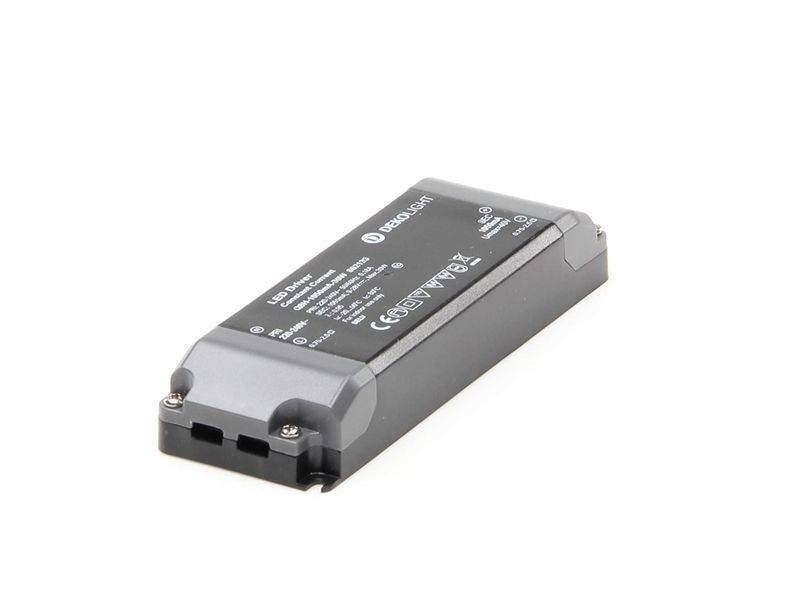

Deko Light BASIC, CC LED driver Constant current 30 W 1.05 A 9 - 28 V DC 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

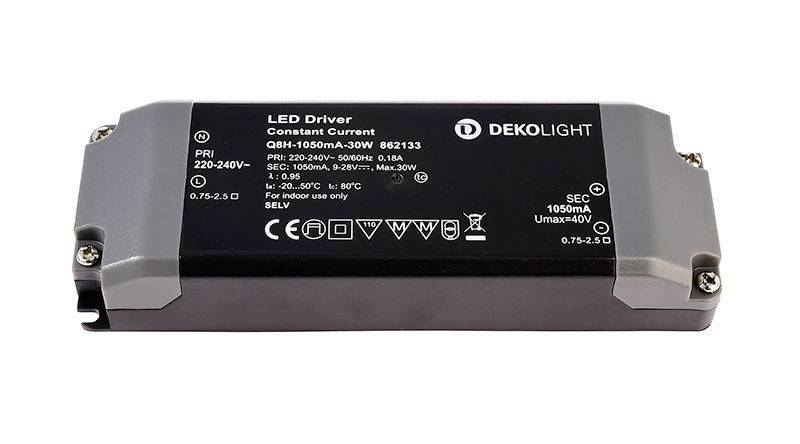

Deco-light LED-power supply, BASIC, CC, Q8H-1050mA/30W, 220-240V AC/50-60Hz, 9-28V DC
- Constant current
- 9 - 28 V DC
- 1.05 A
Technical specifications
- Output current: 1050 mA
- Material 1: Plastic Durability: 30000 h
- max. Inrush current (A/µs): 5A/300µs
- Product type
LED driver
- Type
Constant current
- Operating current
1.05 A
- Dim
(L x W x H) 142 x 50 x 24 mm
- Factory colour
Black
- Output voltage (max.)
28 V DC
- Output voltage (min.)
9 V DC
- Max. output current
1.05 A
- Output current (max.) - rounded
1.05 A
- Protection class
II
IP20
- Connection
Clamp
- Max. power
30 W
- Input voltage (max.)
240 V
- Min. input voltage
220
- Power (min.)
9.50 W
- Power range
9.50 up to 30 W
- Width
50 mm
- Height
24 mm
- Length
142 mm
- Max. temperature
+50 °C
- Min. temperature
-20 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2795422 Deko Light BASIC, CC LED driver Constant current 30 W 1.05 A 9 - 28 V DC 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
