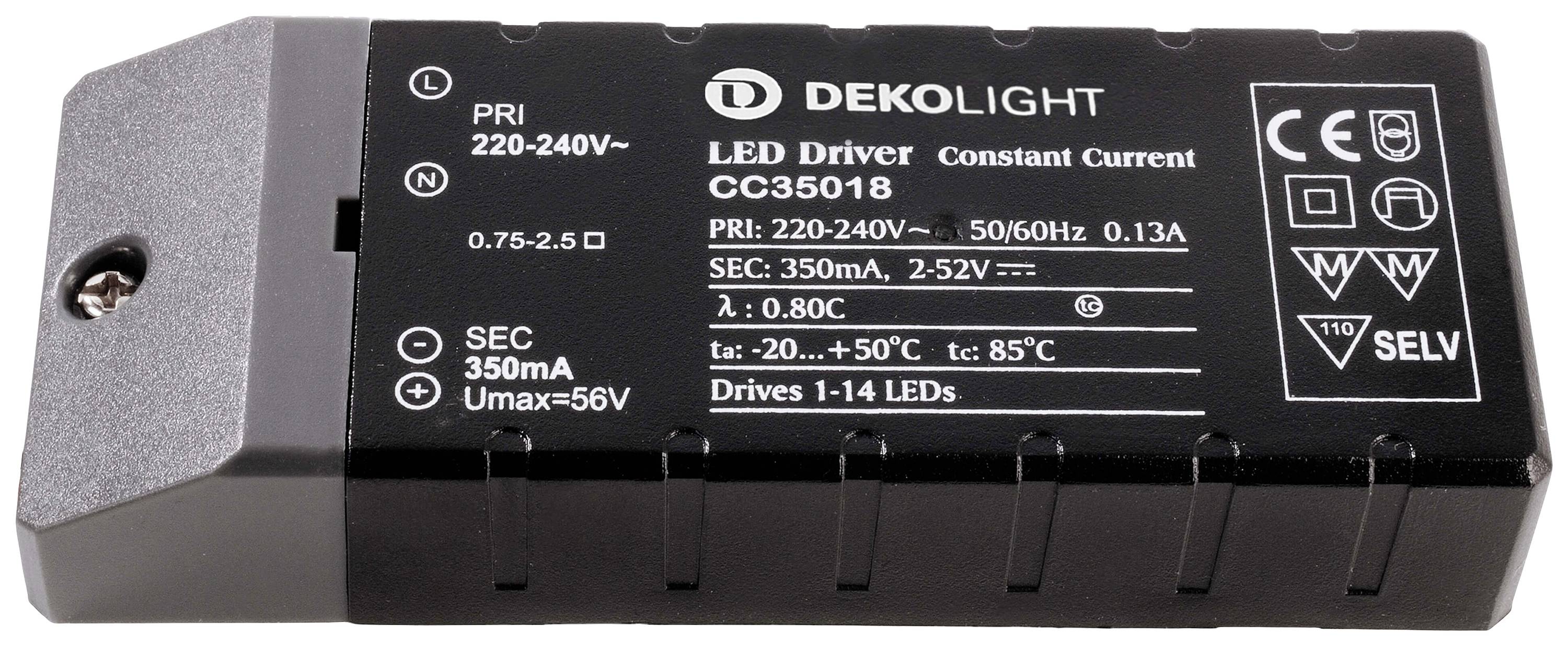

Deko Light Basic CC LED transformer Constant current 18 W 350 mA 2 - 52 V 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Decorative Light LED Power Supply Basic
- Constant current
- 2 - 52 V
- 350 mA
Technical specifications
- Product type
LED transformer
- Type
Constant current
- Dim
(L x W x H) 115 x 45 x 21 mm
- Factory colour
Black
- Output voltage (max.)
52 V
- Output voltage (min.)
2 V
- Max. output current
350 mA
- Output current (max.) - rounded
350 mA
- Protection class
II
IP20
- Connection
Clamp
- Max. power
18 W
- Weight
87 g
- Power (min.)
0.7 W
- Power range
0.7 up to 18 W
- Width
45 mm
- Height
21 mm
- Length
115 mm
- Max. temperature
+50 °C
- Min. temperature
-20 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2523550 Deko Light Basic CC LED transformer Constant current 18 W 350 mA 2 - 52 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2523550 Deko Light Basic CC LED transformer Constant current 18 W 350 mA 2 - 52 V 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
