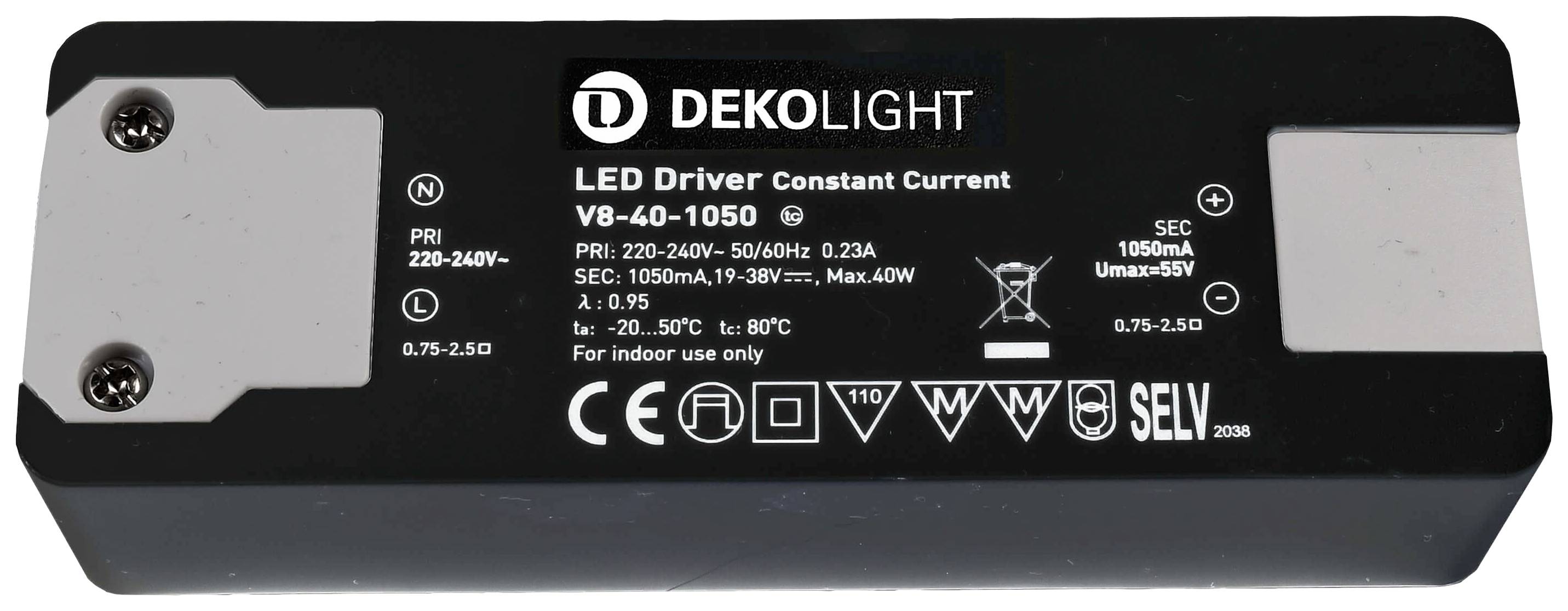

Deko Light Basic CC LED transformer Constant current 40 W 1050 mA 19 - 38 V 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Basic CC
- Constant current
- 19 - 38 V
- 1050 mA
Technical specifications
- Product type
LED transformer
- Type
Constant current
- Dim
(L x W x H) 127 x 43 x 28 mm
- Output voltage (max.)
38 V
- Output voltage (min.)
19 V
- Max. output current
1050 mA
- Output current (max.) - rounded
1.05 A
- Protection class
II
IP20
- Connection
Open cable ends
- Max. power
40 W
- Weight
117 g
- Power (min.)
20 W
- Power range
20 up to 40 W
- Width
43 mm
- Height
28 mm
- Length
127 mm
- Max. temperature
+50 °C
- Min. temperature
-20 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2523538 Deko Light Basic CC LED transformer Constant current 40 W 1050 mA 19 - 38 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2523538 Deko Light Basic CC LED transformer Constant current 40 W 1050 mA 19 - 38 V 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
