Deko Light BASIC, CC, V8-30-700mA/30W LED driver Constant current 30 W 700 mA 21 - 43 V Surge protection 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

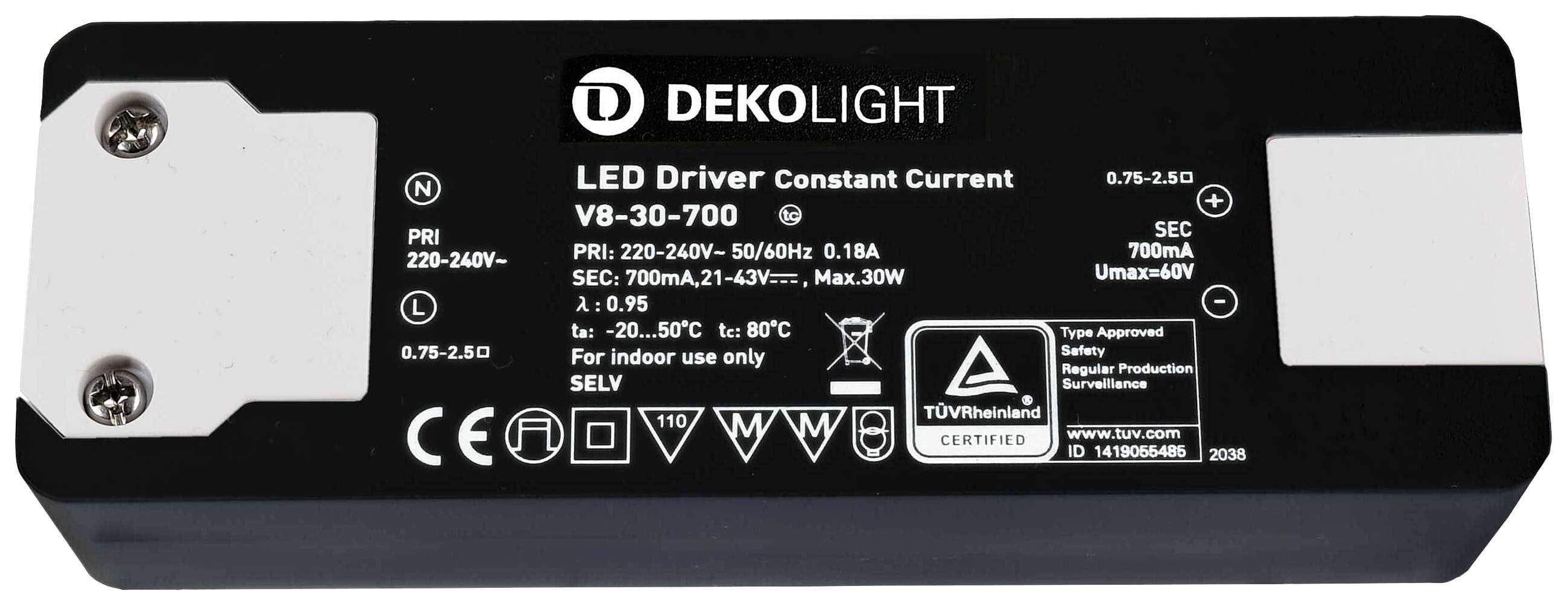

Decorative Light LED power supply, BASIC, CC, V8-30-700mA/30W
- Constant current
- 21 - 43 V
- 700 mA
Technical specifications
- Product type
LED driver
- Type
Constant current
- Operating current
700 mA

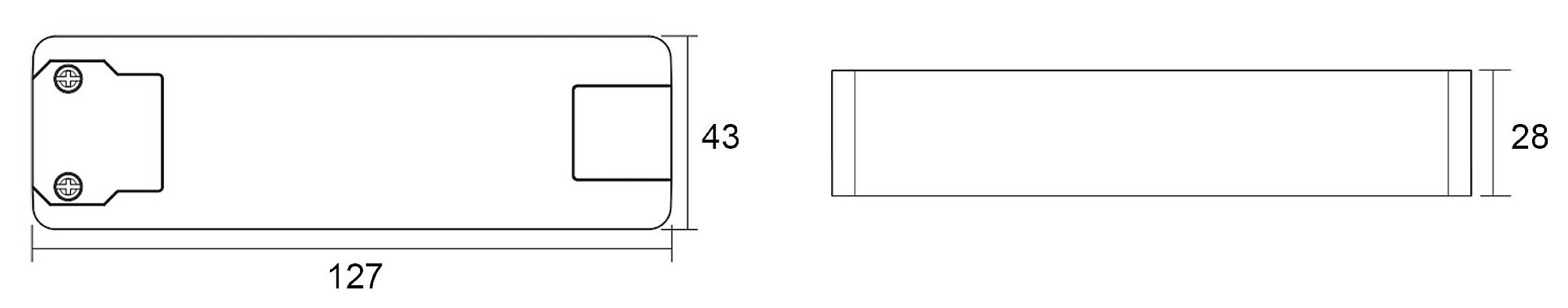

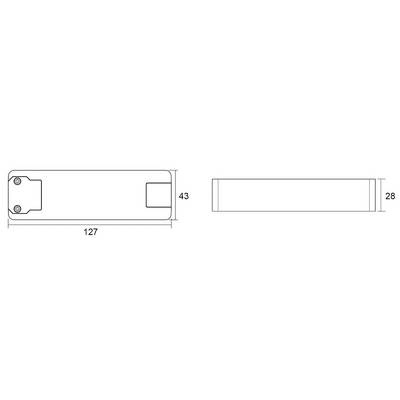

- Dim
(L x W x H) 127 x 43 x 28 mm
- Factory colour
Black
- Output voltage (max.)
43 V
- Output voltage (min.)
21 V
- Max. output current
700 mA
- Output current (max.) - rounded
700 mA
- Protection class
II
- LED driver features
Surge protection
IP20
- Connection
Clamp
- Max. power
30 W
- No. of outputs
1 x
- No. of inputs
1 x
- Output current (min.)
700 mA
- Input voltage (max.)
240 V
- Min. input voltage
220 V
- Weight
101 g
- Power (min.)
14.7 W
- Power range
14.7 up to 30 W
- Width
43 mm
- Height
28 mm
- Length
127 mm
- Max. temperature
50 °C
- Min. temperature
-20 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2618202 Deko Light BASIC, CC, V8-30-700mA/30W LED driver Constant current 30 W 700 mA 21 - 43 V Surge protection 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2618202 Deko Light BASIC, CC, V8-30-700mA/30W LED driver Constant current 30 W 700 mA 21 - 43 V Surge protection 1 pc(s)
Description
Features
- Compact designFlicker-freeShort-circuit proofOverload protectionOverheating protectionCurrent constant
- This text is machine translated.
Scope of delivery
- LED power supply, BASIC, CC, V8-30-700mA/30W
- User manual.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
