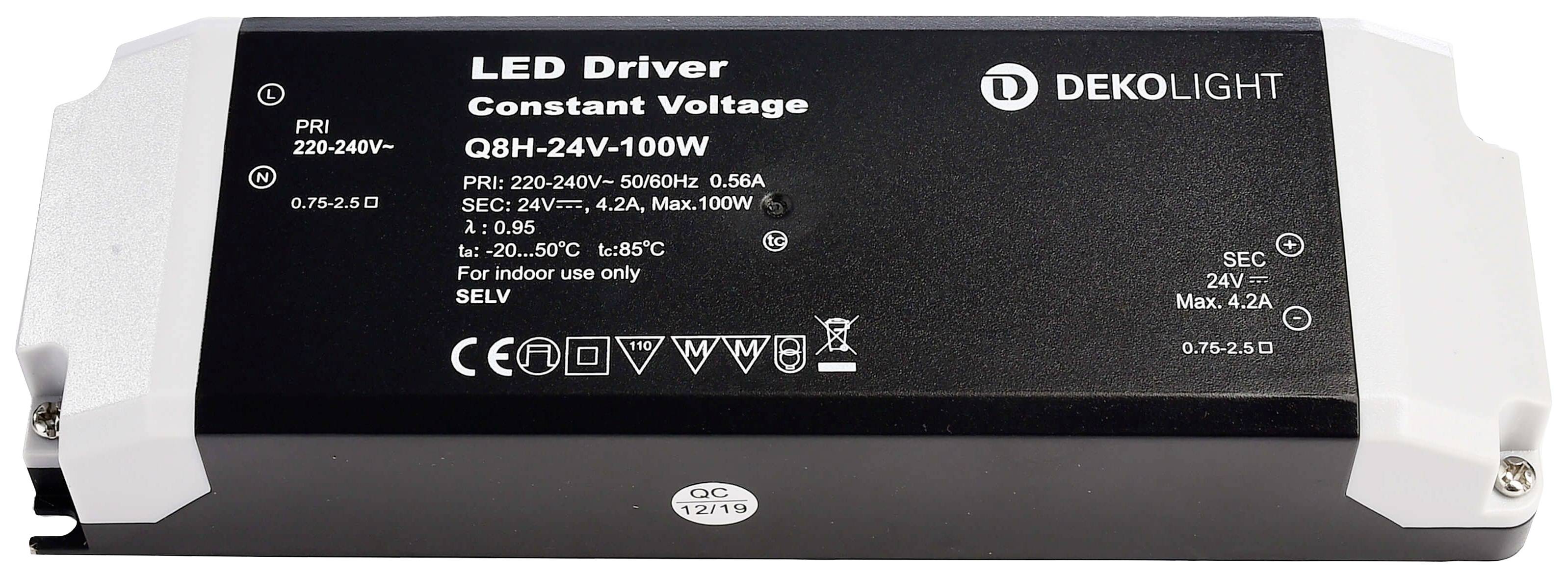

Deko Light Basic CV LED transformer Constant voltage 100 W 4200 mA 24 V Surge protection 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Decorative Light LED Power Supply Basic
- Constant voltage
- 24 V
- 4200 mA
Technical specifications
- Product type
LED transformer
- Type
Constant voltage
- Dim
(L x W x H) 184 x 61 x 32 mm
- Output voltage (max.)
24 V
- Test mark
IP 20
- Max. output current
4200 mA
- Output current (max.) - rounded
4.2 A
- Protection class
II
- LED driver features
Surge protection
IP20
- Connection
Clamp
- Max. power
100 W
- Weight
326 g
- Power range
100 W (max)
- Width
61 mm
- Height
32 mm
- Length
184 mm
- Max. temperature
+50 °C
- Min. temperature
-20 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2523549 Deko Light Basic CV LED transformer Constant voltage 100 W 4200 mA 24 V Surge protection 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2523549 Deko Light Basic CV LED transformer Constant voltage 100 W 4200 mA 24 V Surge protection 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
