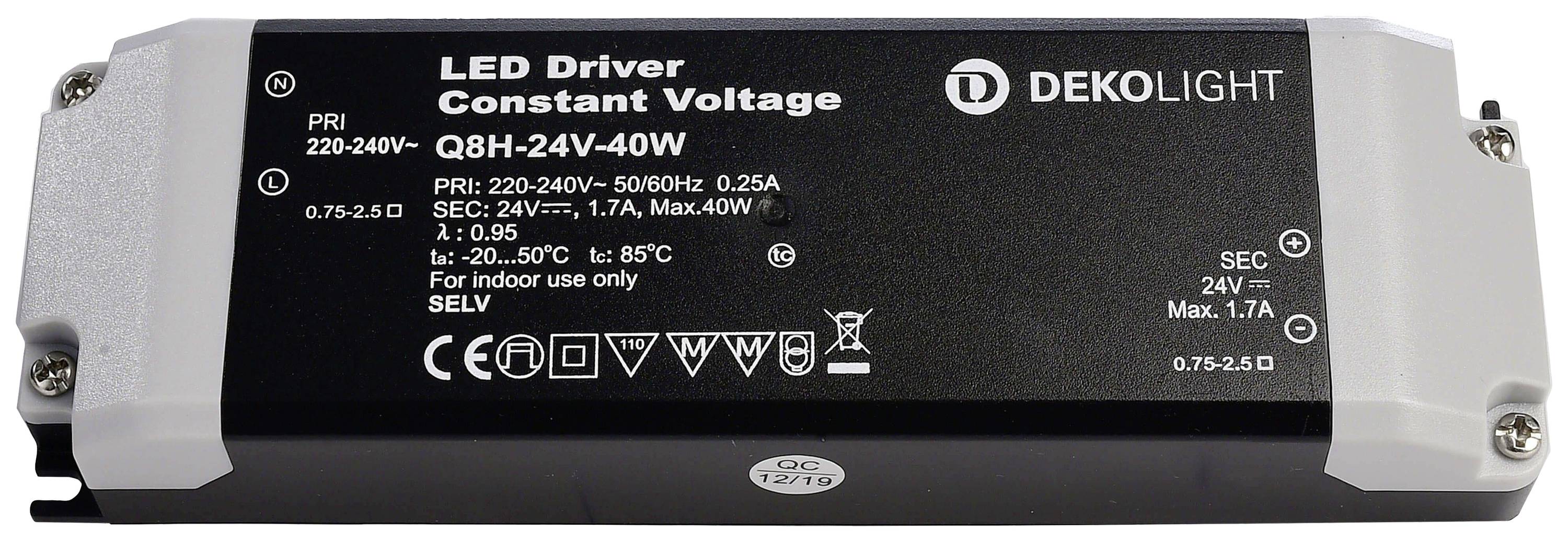

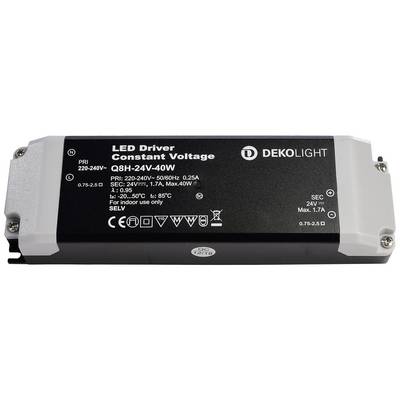

Deko Light Basic CV LED transformer Constant voltage 40 W 1700 mA 24 V Surge protection 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Decorative Light LED Power Supply Basic
- Constant voltage
- 24 V
- 1700 mA
Technical specifications
- Product type
LED transformer
- Type
Constant voltage
- Dim
(L x W x H) 166 x 52 x 24 mm
- Output voltage (max.)
24 V
- Output voltage (min.)
24 V
- Max. output current
1700 mA
- Output current (max.) - rounded
1.7 A
- Protection class
II
- LED driver features
Surge protection
IP20
- Connection
Open cable ends
- Max. power
40 W
- Output current (min.)
1700 mA
- Weight
195 g
- Power (min.)
40 W
- Power range
40 up to 40 W
- Width
52 mm
- Height
24 mm
- Length
166 mm
- Max. temperature
+50 °C
- Min. temperature
-20 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2523537 Deko Light Basic CV LED transformer Constant voltage 40 W 1700 mA 24 V Surge protection 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2523537 Deko Light Basic CV LED transformer Constant voltage 40 W 1700 mA 24 V Surge protection 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
