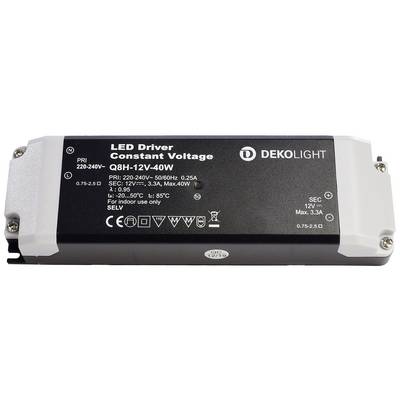

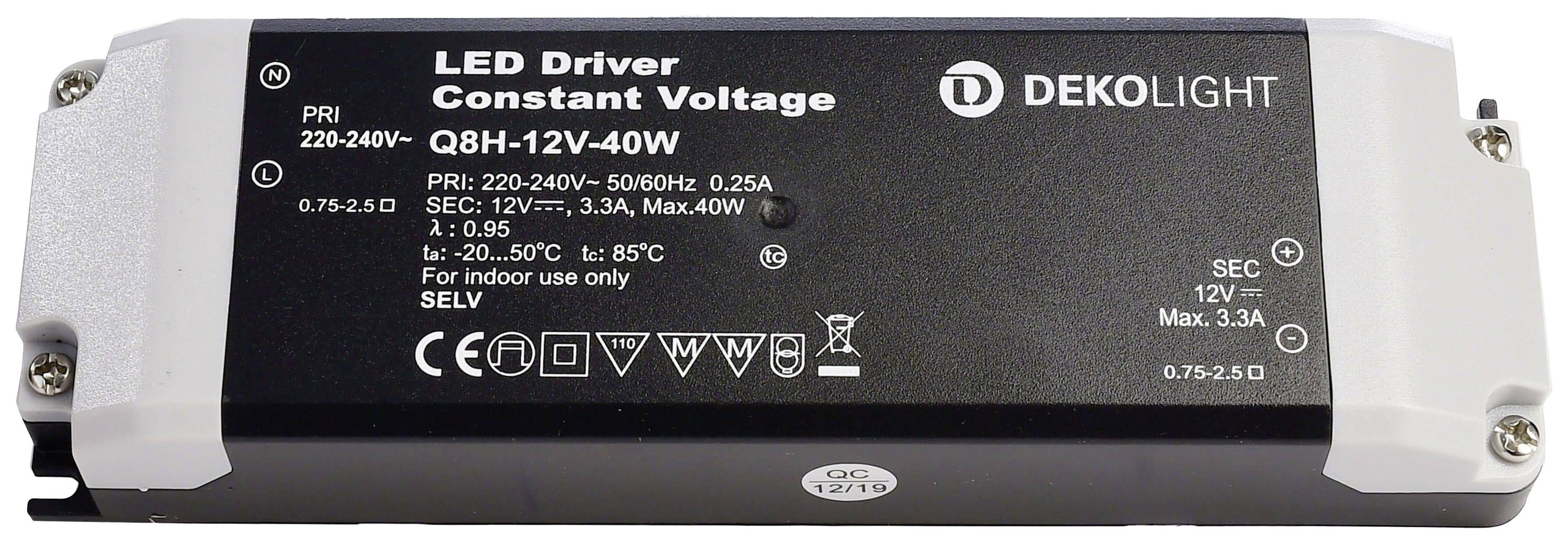

Deko Light BASIC, CV, Q8H-12-40W LED driver Constant voltage 40 W 0 mA - 3.3 A 12 V Surge protection 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Deco-Light LED-Power supply, BASIC, CV, Q8H-12-40W, constant voltage, 220-240V AC/50-60HZ, 12V DC, 0-3
- Constant voltage
- 12 V
- 0 mA - 3.3 A
Technical specifications
- Product type
LED driver
- Type
Constant voltage
- Dim

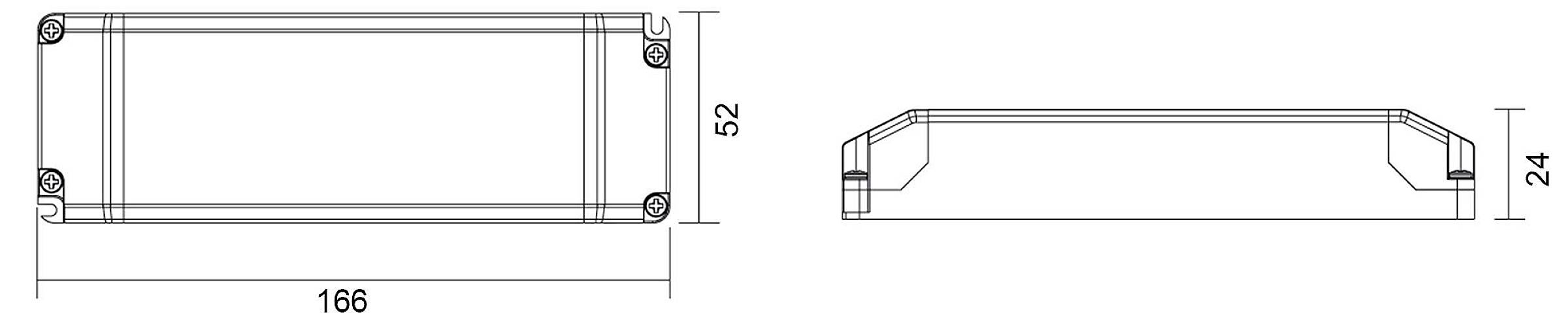

(L x W x H) 166 x 52 x 24 mm
- Factory colour
Black
- Output voltage (max.)
12 V
- Output voltage (min.)
12 V
- Max. output current
3.3 A
- Output current (max.) - rounded
3.3 A
- Protection class
II
- LED driver features
Surge protection
IP20
- Max. power
40 W
- No. of outputs
1 x
- No. of inputs
1 x
- Output current (min.)
0 mA
- Input voltage (max.)
240 V
- Min. input voltage
220 V
- Weight
188 g
- Power (min.)
0 W
- Power range
0 up to 40 W
- Width
52 mm
- Height
24 mm
- Length
166 mm
- Max. temperature
50 °C
- Min. temperature
-20 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2618191 Deko Light BASIC, CV, Q8H-12-40W LED driver Constant voltage 40 W 0 mA - 3.3 A 12 V Surge protection 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2618191 Deko Light BASIC, CV, Q8H-12-40W LED driver Constant voltage 40 W 0 mA - 3.3 A 12 V Surge protection 1 pc(s)
Description
Features
- Flicker-freeShort-circuit proofOverload protectionOverheating protection
Scope of delivery
- LED POWER SUPPLY, BASIC, CV, Q8H-12-40W
- User manual.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
