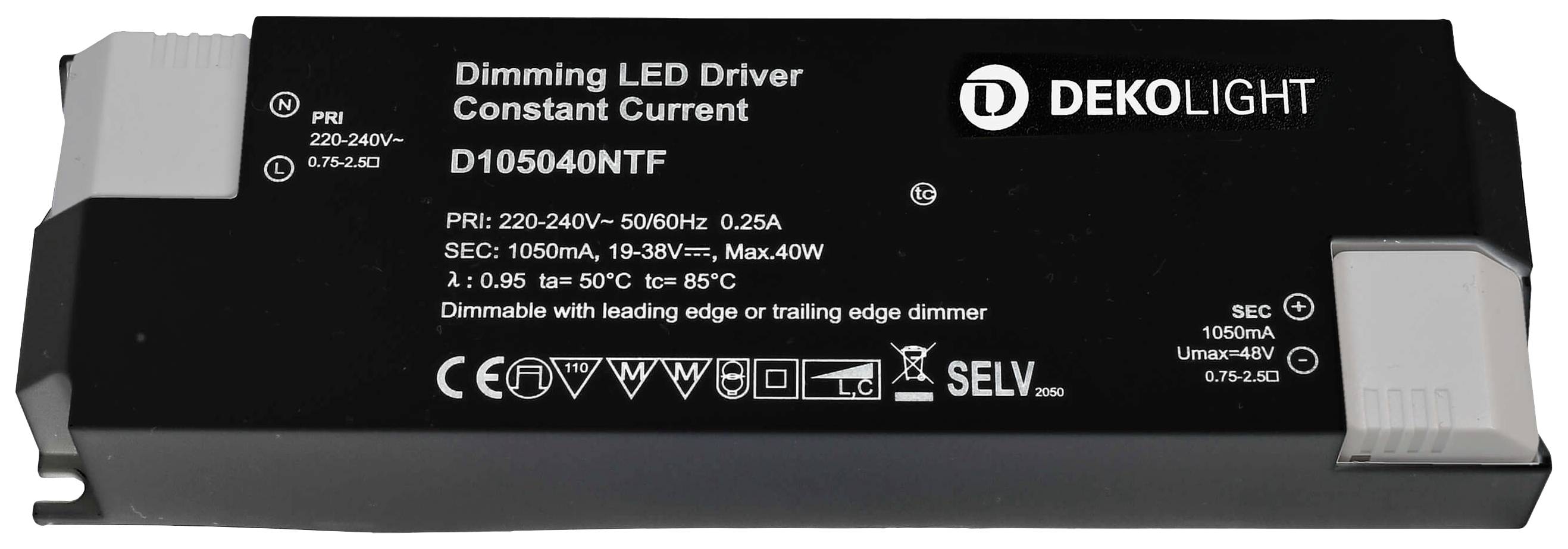

Deko Light BASIC, DIM, CC, D105040NTF/40W LED driver Constant current 40 W 1050 mA 19 - 38 V Surge protection, dimmable
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
BASIC, DIM, CC, D105040NTF/40W
- Constant current
- 19 - 38 V
- 1050 mA
Technical specifications
- Product type
LED driver
- Type
Constant current
- Operating current
1050 mA
- Dim

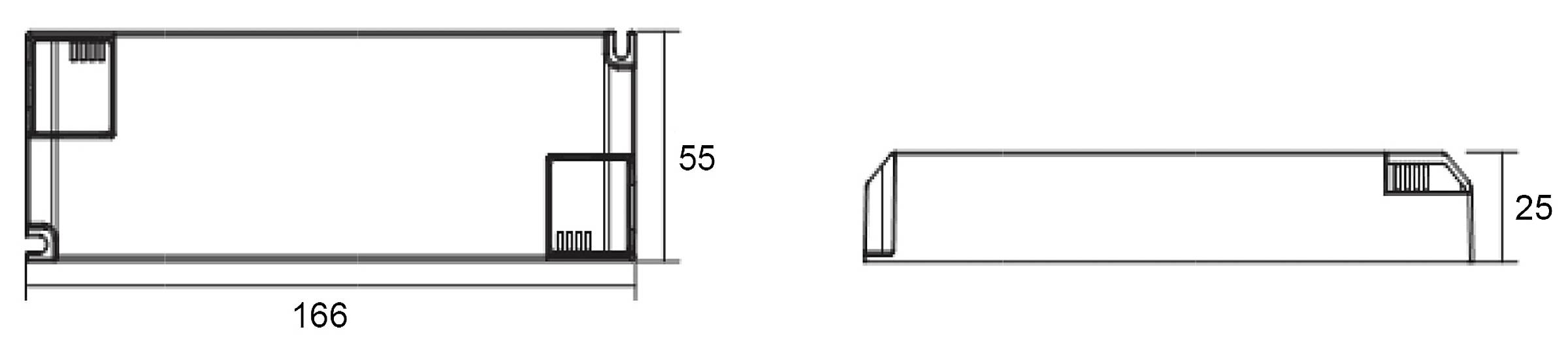

(L x W x H) 166 x 55 x 25 mm
- Factory colour
Black
- Output voltage (max.)
38 V
- Output voltage (min.)
19 V
- Max. output current
1050 mA
- Output current (max.) - rounded
1.05 A
- Protection class
II
- LED driver features
Surge protection
dimmable
IP20
- Connection
Clamp
- Max. power
40 W
- No. of outputs
1 x
- No. of inputs
1 x
- Input voltage (max.)
240 V
- Min. input voltage
220 V
- Weight
179 g
- Power (min.)
20 W
- Power range
20 up to 40 W
- Width
55 mm
- Height
25 mm
- Length
166 mm
- Max. temperature
50 °C
- Min. temperature
-20 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2618205 Deko Light BASIC, DIM, CC, D105040NTF/40W LED driver Constant current 40 W 1050 mA 19 - 38 V Surge protection, dimmable
User & Safety Instructions
User & Safety Instructions 2618205 Deko Light BASIC, DIM, CC, D105040NTF/40W LED driver Constant current 40 W 1050 mA 19 - 38 V Surge protection, dimmable
Description
Features
- Dimmable with phase on/off-cut dimmersFlicker-freeShort-circuit proofOverload protectionOverheating protection
- This text is machine translated.
Scope of delivery
- LED power supply BASIC, DIM, CC, D105040NTF/40W
- User manual.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
