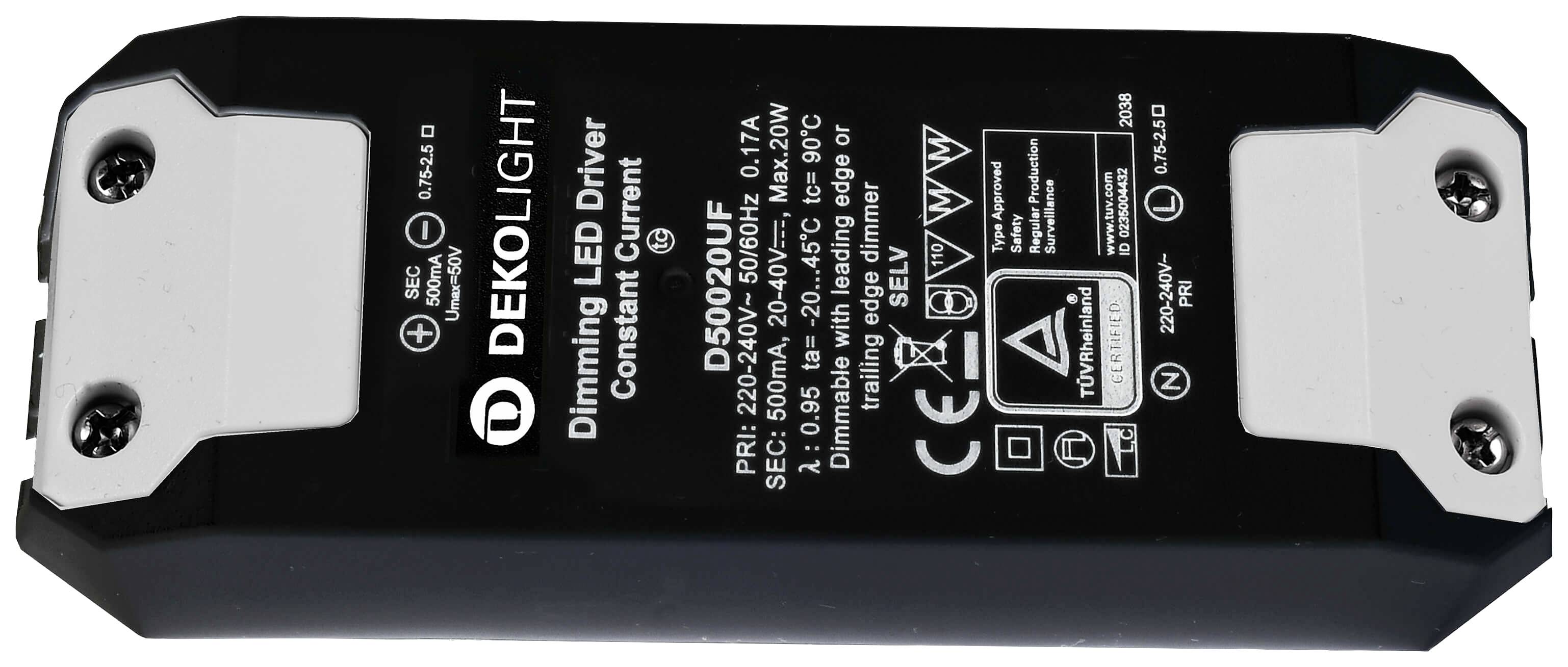

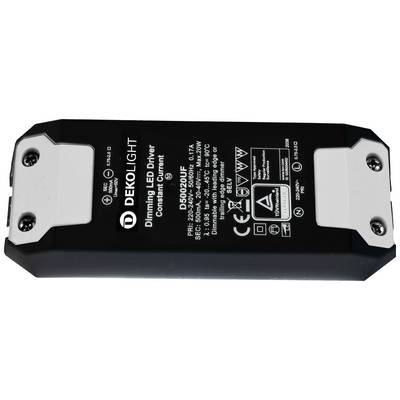

Deko Light BASIC, DIM, CC LED driver Constant current 20 W 500 mA - 0.50 A 20 - 40 V DC dimmable 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
BASIC, DIM, CC
- Constant current
- 20 - 40 V DC
- 500 mA - 0.50 A
Technical specifications
- Output current: 500 mA
- Activation: Phase forward / phase section
- Material 1: Plastic Durability: 30000 h
- max. Inrush current (A/µs): 15A/300µs
- Product type
LED driver
- Type
Constant current
- Dim
(L x W x H) 127 x 44 x 28 mm
- Factory colour
Black
- Output voltage (max.)
40 V DC
- Output voltage (min.)
20 V DC
- Max. output current
0.50 A
- Output current (max.) - rounded
500 mA
- Protection class
II
- LED driver features
dimmable
IP20
- Connection
Clamp
- Max. power
20 W
- Output current (min.)
500 mA
- Input voltage (max.)
240 V
- Min. input voltage
220
- Power (min.)
10 W
- Power range
10 up to 20 W
- Width
44 mm
- Height
28 mm
- Length
127 mm
- Max. temperature
+45 °C
- Min. temperature
-20 °C
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2795435 Deko Light BASIC, DIM, CC LED driver Constant current 20 W 500 mA - 0.50 A 20 - 40 V DC dimmable 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
